Pulse Larsen SPDA17RP918: 9 Inch Dipole Antenna With RPTNC-Male for 890-960 MHz ISM

  • $15.89
    Unit price per

SPDA17RP918


956 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $14.49
25 $13.44
100 $12.32
250 $11.20
500 $10.26
Factory lead time:  Ships in 6-8 Weeks

Pulse Larsen SPDA17RP918: 9 Inch Dipole Antenna With RPTNC-Male for 890-960 MHz ISM

More InfoDocumentsSpecifications Reviews

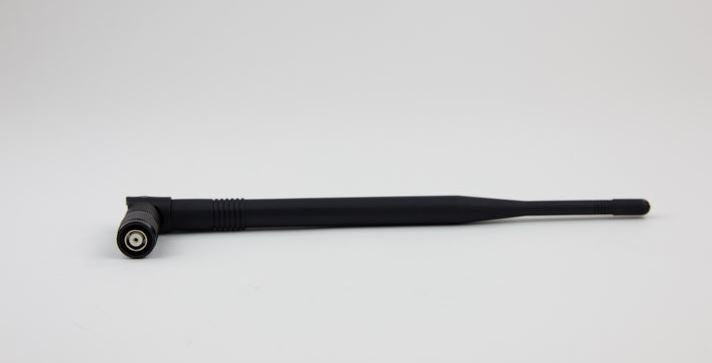

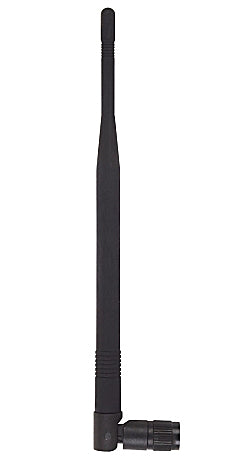

The SPDA17RP918 is a 9 inch long blade style dipole antenna designed for portable, hand-held terminal or cordless base applications in the 900 mhz ISM frequency range. Offering 1.5 dBi gain, 76 degree beamwidth with articulating knuckle and RPTNC-Male connector. Equivalent to 30-030012-01 and 32319. For SNB900 & AgGPS 442 542


More Information

The SPDA17RP918 is a swivel blade dipole antenna designed for portable, hand-held terminal or cordless base applications including wireless Point-of-Sale, 900 MHz Point- To Point, WLAN or Cordless PABX. The SPDA17RP918 covers the 890-960 MHz frequency range providing omnidirectional radiation with a gain of 2 dBi.

The antenna is a right angle swivel in black polyeurethane with a reverse polarity TNC Male connector.

Features

  • Omnidirectional Swivel Dipole Antenna
  • Performance across the 890-960 MHz frequency bands
  • Up to 2 dBi Gain
  • RPTNC Male connector
  • Perfect 900 MHz ISM antenna for modems with RPTNC
  • AKA: 32319 & 30-030012-01

Documents


Specifications

SKU SPDA17RP918
Manufacturer Part Number SPDA17RP918
Manufacturer Pulse
Product Condition New
Antenna Style Swivel Blade
Antenna Style Swivel Blade
Antenna Category M2M 698-2700 MHz 3G / 4G LTE + GPS
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 698-960
Gain 1 2 dBi
Frequency 2 1710-2170
Gain 2 2 dBi
Frequency 3 2500-2700
Gain 3 2 dBi
Impedance 50
Max Input Power (W) 3
VSWR: < X: 1 2.5
Height/Length (inches) 9
Height/Length (mm) 228
Weight (lbs) 1.66 oz
Weight (grams) 47
Material PC/ABS. UL94 V-0
Operating Temp (celsius) -30 to +70
Color Black
Connector Type Connector - Bottom
Connector 1 RP TNC-Male
Includes articulating 90 degreee knuckle
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
