FG9023: Laird / Antenex Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector

  • $83.38
    Unit price per

FG9023


110 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $77.25
25 $73.99
100 $70.51
250 $69.58
500 $69.12
Factory lead time:  Ships in 4-6 Weeks

FG9023: Laird / Antenex Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector

More InfoDocumentsSpecifications Reviews

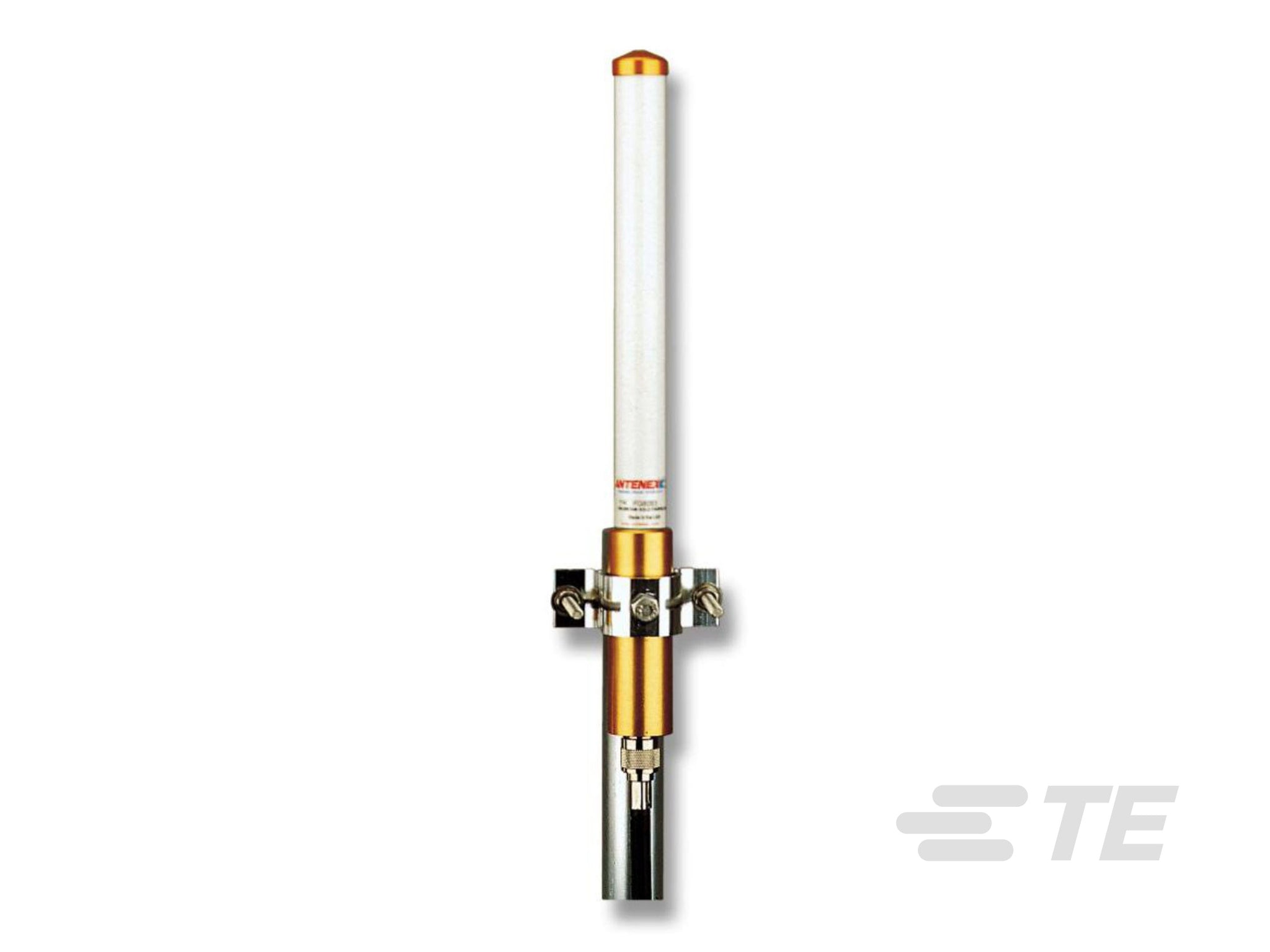

The Laird / Antenex FG9023 is aOutdoor Rated fiberglass omni-directional stick antenna that offers 3 dBd / 5 dBi gain in the 900 mhz ISM band. The unit is ultra-rugged and perfectly suited for 900 mhz for point-to-point / Machine to Machine communications. Typically, the antenna is used in conjuction with radios from DIGI, FreeWave, Avalan or MOXA. Overall length is just 24 inches including the fixed N-Female connector. Equivalent to Antenex Part# 14221.

*Note: This antenna DOES NOT ship with mounting hardware.  We recommend the ROSA-HDM1 mounting bracket*



More Information

FIBERGLASS BASE STATION ANTENNAS FEATURE INDUSTRY-LEADING DESIGN COMPONENTS THAT PERFORM IN EXTREME CONDITIONS

*Note: The ROSA-HDM1 mounting bracket is NOT included with the antenna*

Laird Technolgies’ fiberglass base station antennas are collinear designs enclosed in a high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.

The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a “cold” sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.

FEATURES AND BENEFITS:

  • Every FG fiberglass base antenna is tested on a network analyzer before shipping to assure the best performance.
  • Special UV Treated - stands up to the sun
  • Durable gold anodized sleeve and cap with N Female connector
  • Custom tuning available

APPLICATIONS:

  • Omnidirectional (circular) outdoor antenna applications used by private organizations and government agencies around the globe.
  • Typical applications include land based and marine radio and data transmissions for public safety agencies, commercial organizations, and the military.

Documents


Specifications

SKU FG9023
Manufacturer Part Number FG9023
Manufacturer Laird
Product Condition New
Antenna Style Stick
Antenna Style Stick
Antenna Category 900 MHz
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 902-928
Gain 1 5
Frequency 2 915
Gain 2 5
Impedance 50
Max Input Power (W) 100
VSWR: < X: 1 2
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 70
Height/Length (inches) 23.5
Height/Length (mm) 597
Thickness/Diameter (inches) 1.31
Thickness/Diameter (mm) 33
Weight (lbs) 0.5
Weight (grams) 227
Material Fiberglass
Operating Temp (celsius) -40 TO +85
Mount Style Screw On
Color White
Connector Type Connector - Bottom
Connector 1 N-Female
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
