ROSA-HDM1: Omni Antenna Mast or Pole Mount. Antenna Diameter 1.125 to 1.375 inches. Mast or Pole Diameter 1.5 to 2.5 inches. FM2

  • $28.02
    Unit price per

ROSA-HDM1


904 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $22.79
25 $24.91
100 $23.85
250 $22.79
500 $21.73
Lead time for qty above 904:  Ships in 2-4 Weeks

Shipping calculated at checkout.

ROSA-HDM1: Omni Antenna Mast or Pole Mount. Antenna Diameter 1.125 to 1.375 inches. Mast or Pole Diameter 1.5 to 2.5 inches. FM2

More InfoSpecifications Reviews

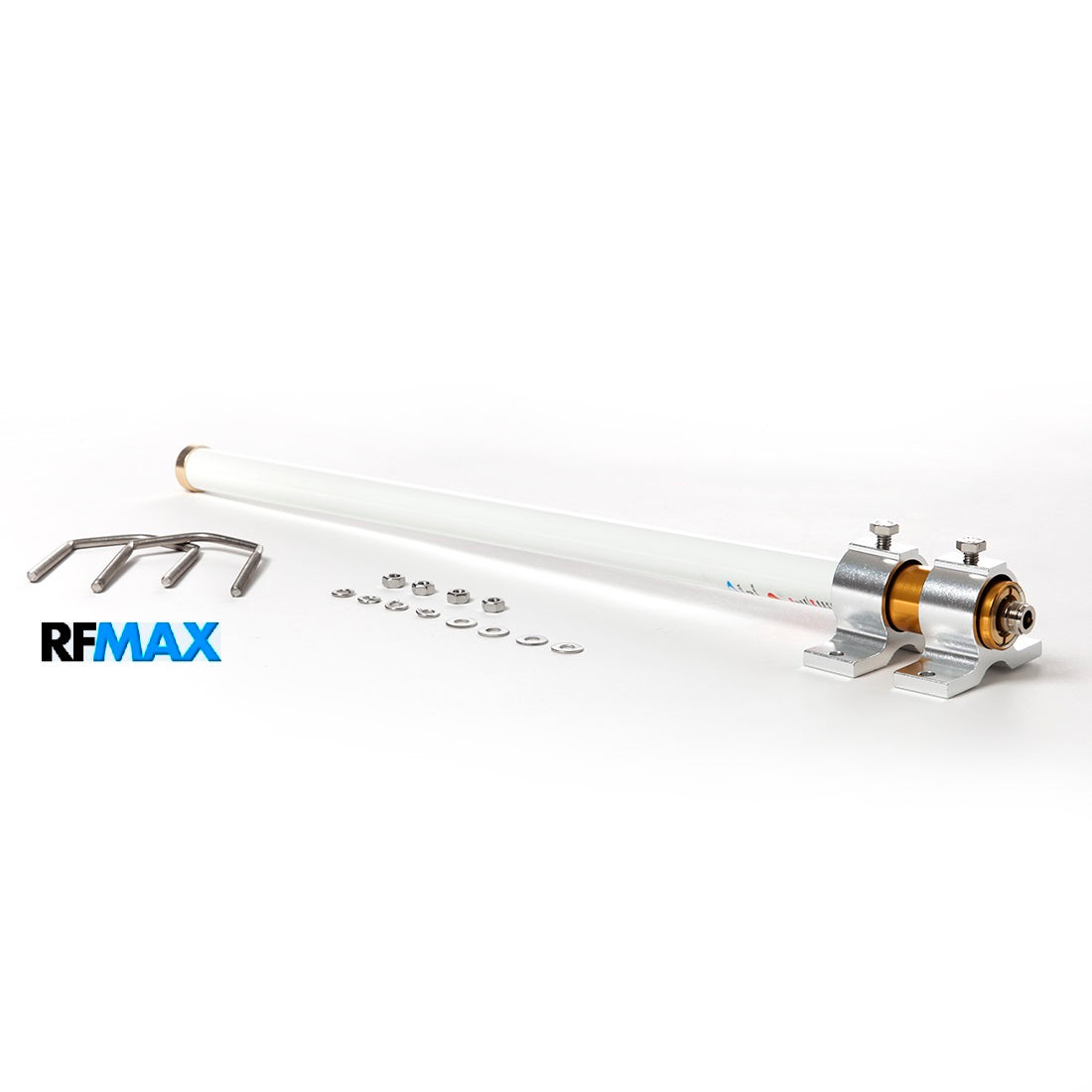

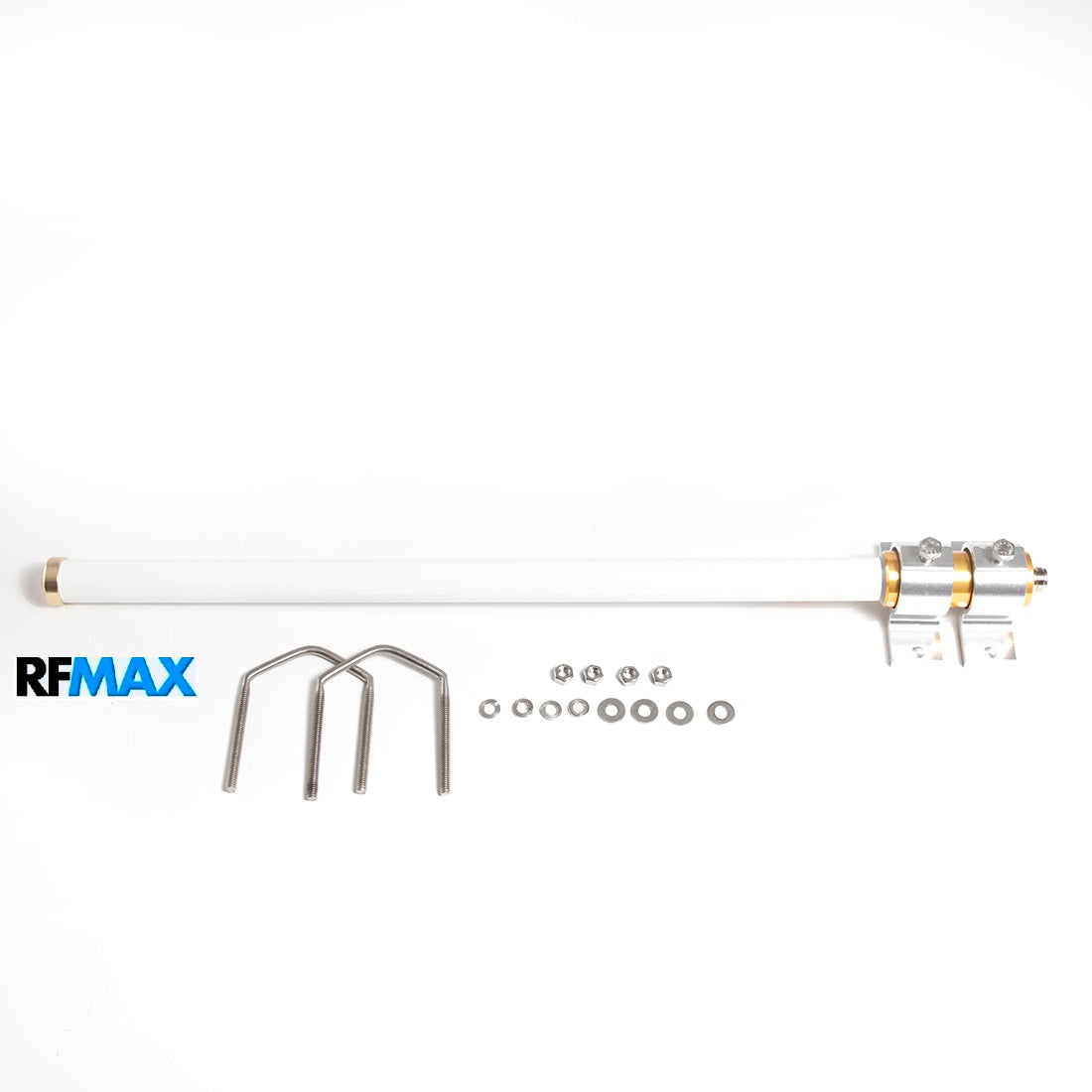

The ROSA-HDM1 from RFMAX is a heavy duty, die-cast aluminum bracket for outdoor mounting of omni-directional stick antennas. This bracket is made to accommodate antennas up to 70 inches tall, with a diameter of 1-1/8 to 1-3/8 inches.

This unit can be wall mounted, or fitted to a pole or mast with a diameter of 1.5 to 2.5 inches.



More Information

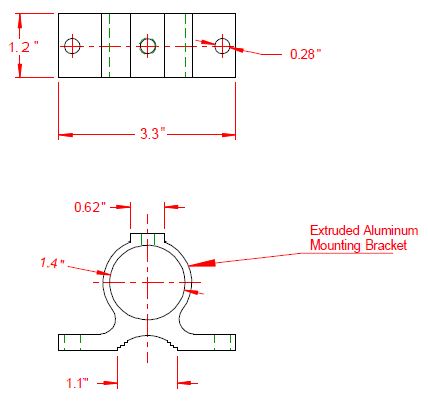

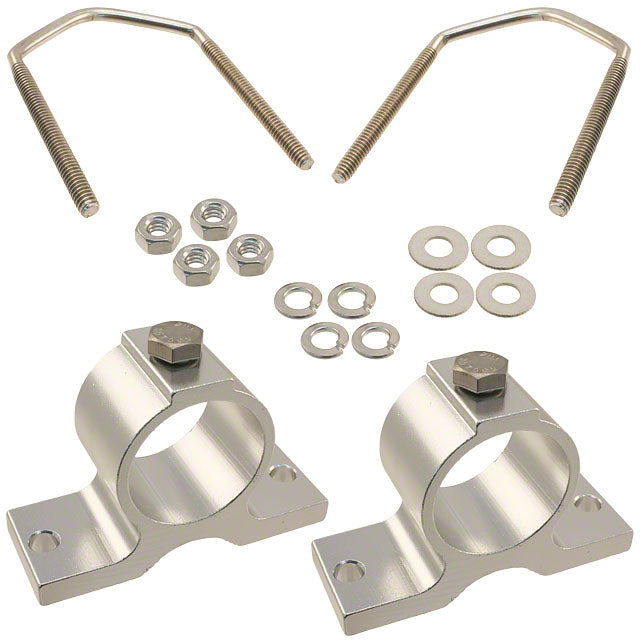

  • Heavy Duty Die-Cast Aluminum. Two clamps included.
  • For antennas up to 70 inches tall, with a diameter of 1-1/8 to 1-3/8 inches.
  • Attach to a wall or to a pole or mast with a diameter of 1-1/2 to 2.5 inches.

Specifications

SKU ROSAHDM1
Manufacturer Part Number ROSA-HDM1
Manufacturer RFMAX
Antenna Style Mounts and Brackets
Directional or Omni Omnidirectional
Thickness/Diameter (inches) Antenna diameter of 1-1/8 to 1-3/8 inches. Pole/Mast diameter of 1.5 to 2.5 inches.
Thickness/Diameter (mm) Antenna diameter of 29 to 35 mm. Pole/Mast diameter of 38 to 63 mm.
Material Aluminum

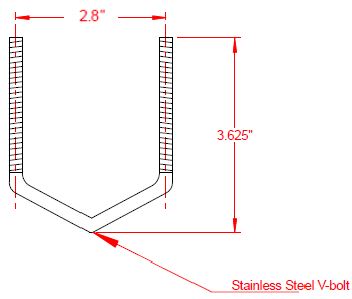

Includes Brackets& U-Bolts
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
