FG9026: Laird / Antenex Outdoor Rated 900mhz Fiberglass Base station Omni Antenna N-Female Connector 8 dBi
FG9026: Laird / Antenex Outdoor Rated 900mhz Fiberglass Base station Omni Antenna N-Female Connector 8 dBiMore InfoDocumentsSpecifications Reviews

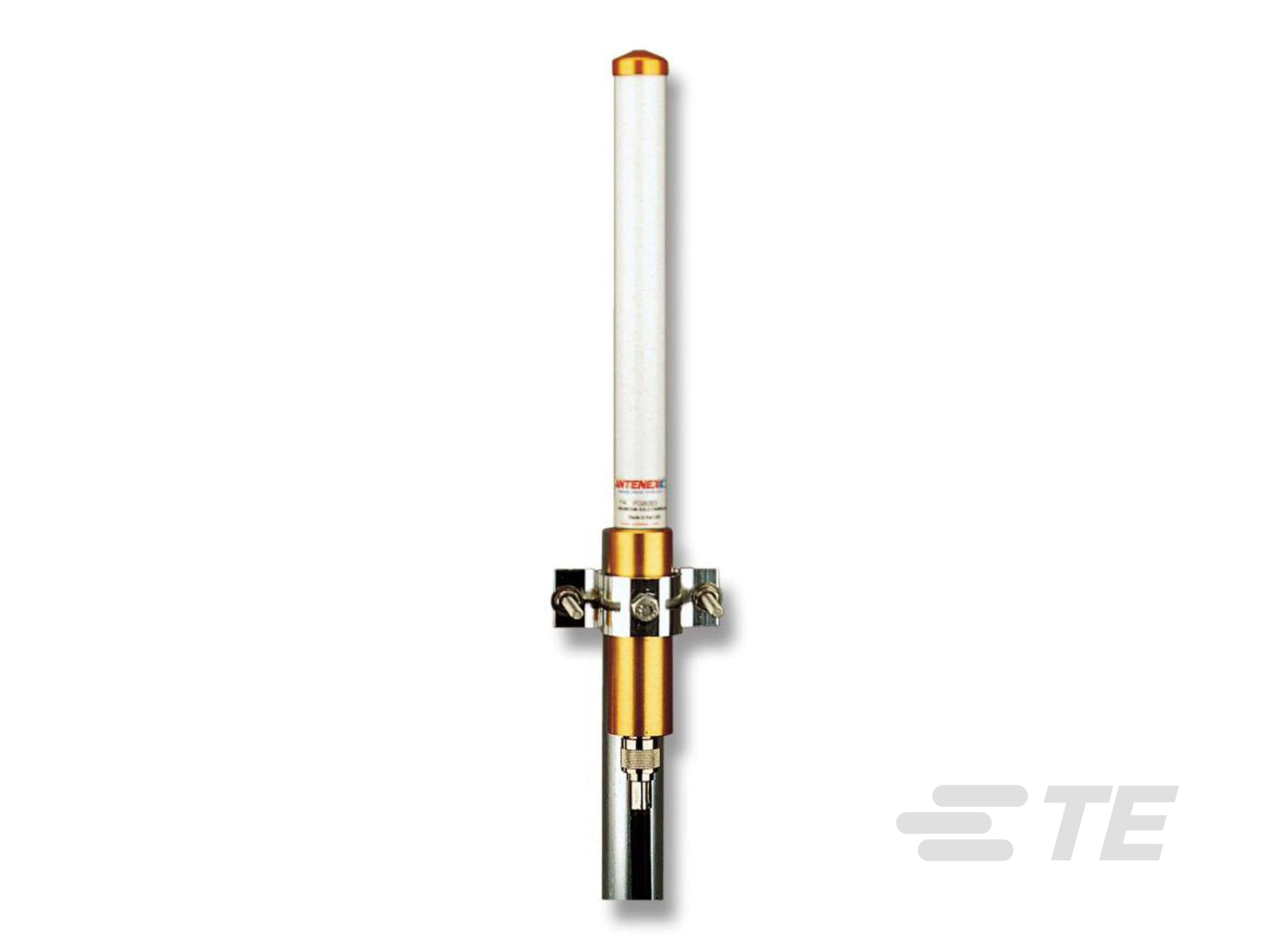

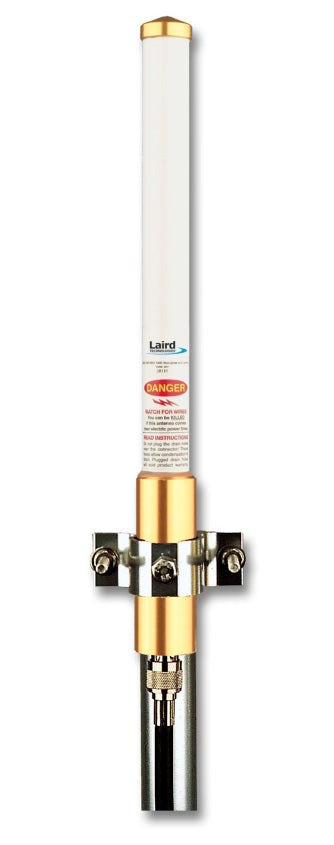

The Laird / Antenex FG9026 is a 65" long ultra-rugged, high-gain, outdoor-rated 900 Mhz Omni-directional stick antenna (Full range is 902-928 MHz.) If you are looking for long-range 900 Mhz point to point communication, this is the model for you. This base station antenna is 65 inches long, accepts up to 200 watts of input power and offers 6 dBd / 8 dBi of Gain with 30 degrees of vertical beamwidth in the 902-928 Mhz ISM band. The unit is terminated with an N-Female connector. This antenna is being used with the Helium RAK Hotspot Miner (cable NOT included)
*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
FIBERGLASS BASE STATION ANTENNA FEATURES INDUSTRY-LEADING DESIGN COMPONENTS THAT PERFORM IN EXTREME CONDITIONS
*Note: The ROSA-HDM1 mounting bracket is NOT included with the antenna*
The Laird Technologies’ FG9026 fiberglass base station antenna has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
The radiating elements are tuned for the 902-928 MHz ISM band and made from high-efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a “cold” sleeve allowing great freedom in mounting. This high quality and well-focused beam provide the highest gain and best efficiency.
FEATURES AND BENEFITS:
- Every FG fiberglass base antenna is tested on a network analyzer before shipping to assure the best performance.
- Special UV Treated - stands up to the sun
- Durable gold-anodized sleeve and cap with N Female connector
- Custom tuning available
- Omnidirectional (circular) outdoor antenna applications used by private organizations and government agencies around the globe.
- Typical applications include land-based and marine radio and data transmissions for public safety agencies, commercial organizations, and the military.
|Manufacturer Part Number||FG9026|
|Antenna Category||900 MHz|
|Working Frequency 2||915|
|Antenna Style||Omnidirectional Basestation Antenna|
|SISO or MIMO||SISO|
|Directional or Omni||Omnidirectional|
|Max Input Power (W)||100|
|VSWR: < X: 1||1.5|
|Operating Temp (celsius)||-40 TO +85|
|Mount Style||FM2 mount-sold seperately|
|Connector Type||Connector - Bottom|
|OK for Outdoor Use||Yes|
|Ground Plane Required||No|
|Accessory 1||FM2 - 2 piece die-cast mount sold seperately|
