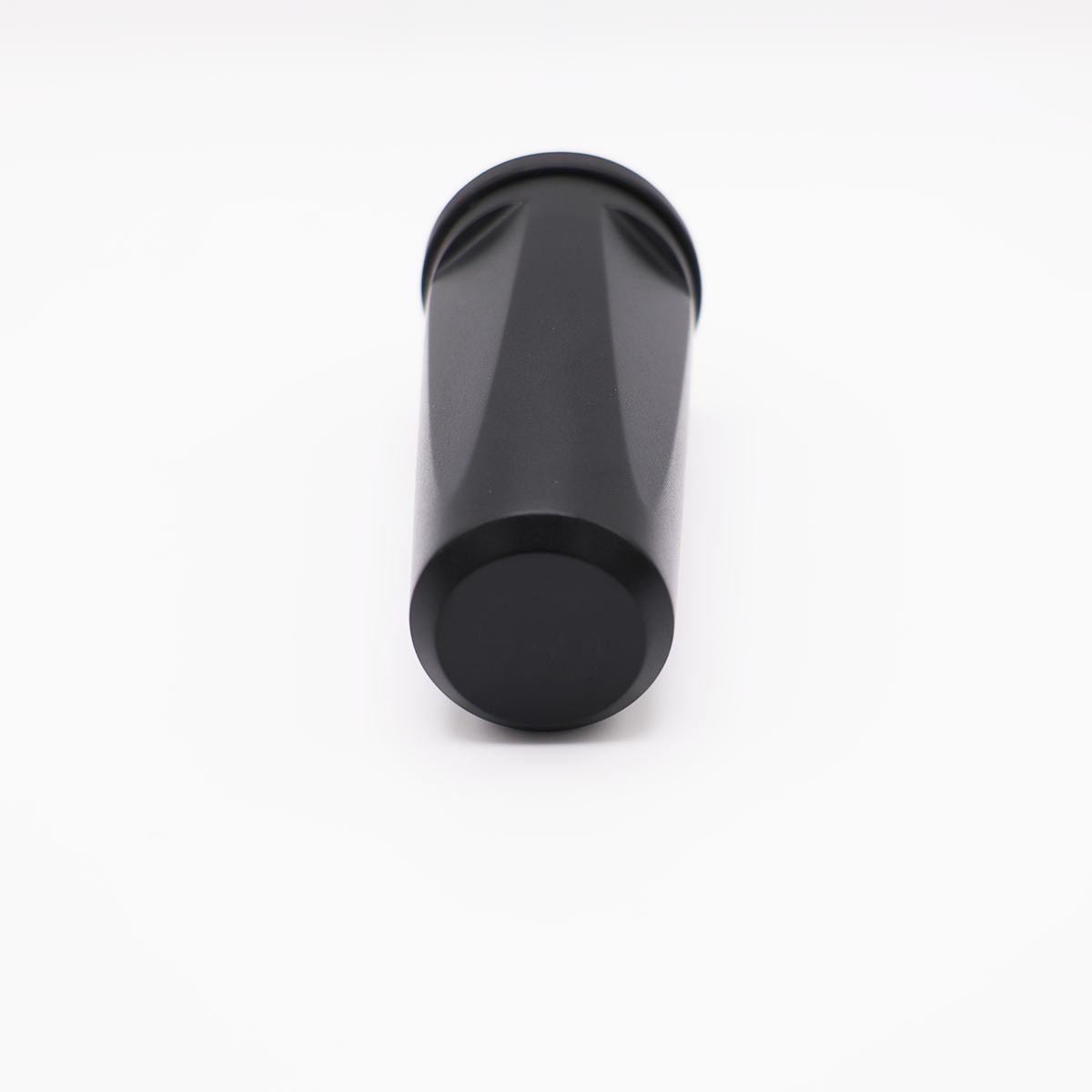

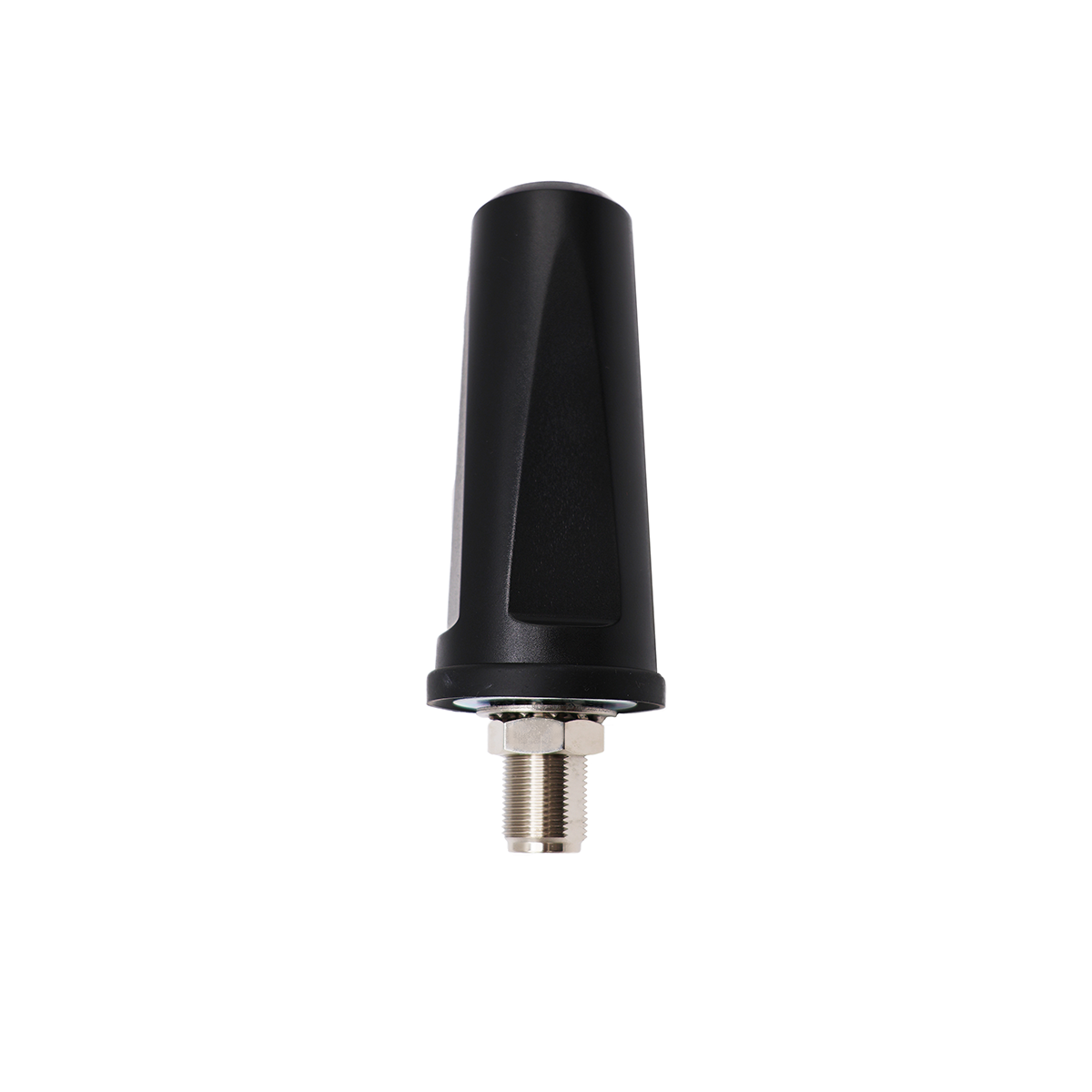

Shotglass Omni Antenna For Cellular 4G/LTE, Band 71 & 5G. N-Female Permanent Mount IP67. RSGB-4G/5G-3-NF

  • $49.00
    Unit price per

RSGB-4G/5G-3-NF


969 Can ship immediately
Lead time for qty above 969:  Ships in 2-4 Weeks

Shipping calculated at checkout.

Shotglass Omni Antenna For Cellular 4G/LTE, Band 71 & 5G. N-Female Permanent Mount IP67. RSGB-4G/5G-3-NF

More InfoDocumentsSpecifications Reviews

The RSGB-4G/5G-3-NF is a heavy-duty, high-performance, vandal proof cellular antenna from RFMAX. This low profile, direct mount, IP67 antenna is primarily used for vehicular machine to machine (M2M) communications across the 3G/4G/LTE/5G bands of 617-7125 MHz. This includes the new Band 71 (617- 698 MHz) and CBRS Bands 42 and 48 (3.4-3.7 GHz) Perfect for vehicular and industrial applications when mounting to a car, van, SUVs, metallic enclosure or kiosk which allows it to connect easily to the Verizon, AT&T, T-Mobile, Sprint (1900 MHz - band 25, 2500 MHz - band 41 band 42 band 71 and 850 MHz), Rogers, and Telus networks. If high quality at low cost is key to your OEM design, then this is the antenna you should be using!

  • Frequency: 3G/4G/LTE/5G (617-960/1695-7152 MHz)
  • Gain: 3.9 - 5.4 dBi
  • Includes New Band 71 (617-698 MHz) and CBRS Bands 42 and 48 (3.4-3.7 GHz)
  • Average Power: 45 Watts
  • Size (Dia x H): 1.61 x 3.77 Inches

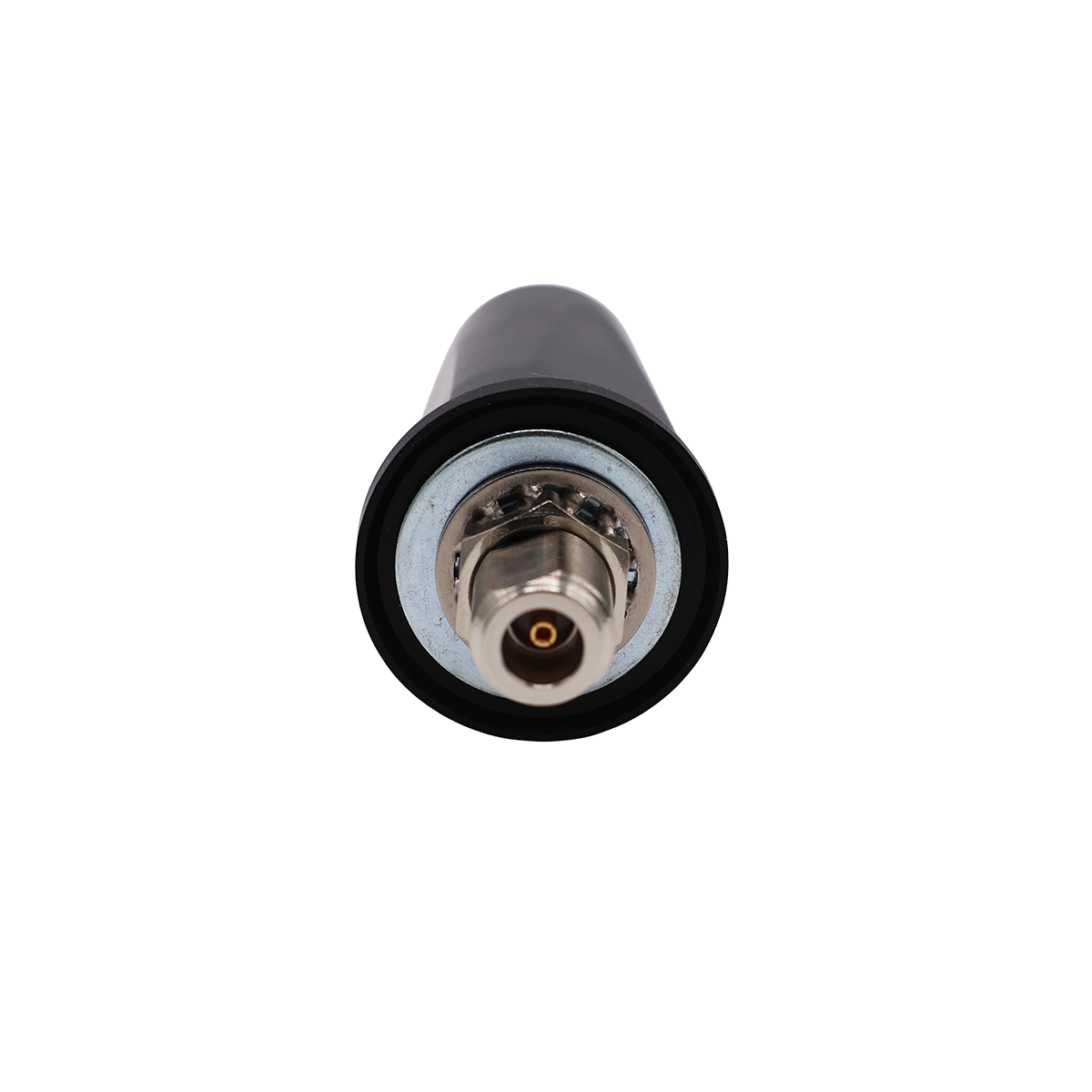

  • Connector: N Female Permanent Mount
  • Rating: IP67
  • Color: Black


More Information

The RSGB-4G/5G-3- NF is approved for use when upgrading 2G/3G EVDO and CDMA to 4G/LTE/5G. Simply remove the existing 2G 3G antenna and replace with this model. Equivalent to PCTEL part# BMLPVMB/LTE-VP and Laird part# TRA6927M3PB-001.  Cable kits and mounting hardware for this antenna can be purchased separately.



APPLICATIONS

  • Outdoor M2M Data Collection/Transmission
  • NEMA Enclosures with Cellular Modems
  • IoT - Internet of Things Antenna
  • Vending Machines, Utility Meters, DCU & other industrial applications
  • Utility boxes
  • Smart metering
  • IoT Devices

Documents


Specifications

SKU RSGB4G5G3NF
Manufacturer Part Number RSGB-4G/5G-3-NF
Manufacturer RFMAX
Antenna Category 3G/4G/LTE/5G (600-6000 MHz)
Working Frequency 617-960 MHz
Gain 2 dBi
Working Frequency 2 1695-7125 MHz
Gain 2 4 dBi
Antenna Style Low Profile Antenna
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 60 Watts
VSWR: < X: 1 3:1 - 2.5:1
Horizontal/Azimuth Beamwidth 360 omni
Vertical/Elevation Beamwidth 43-25 degrees
Height/Length (inches) 3.77 inches (plus N-Female Connector)
Thickness/Diameter (inches) 1.61 inches
Weight (lbs) 0.36 Lbs
Weight (grams) 163 grams
Operating Temp (celsius) -40 to +85 C
Mount Style Direct Mount
Color Black
Connector Type Connector - Bottom
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
