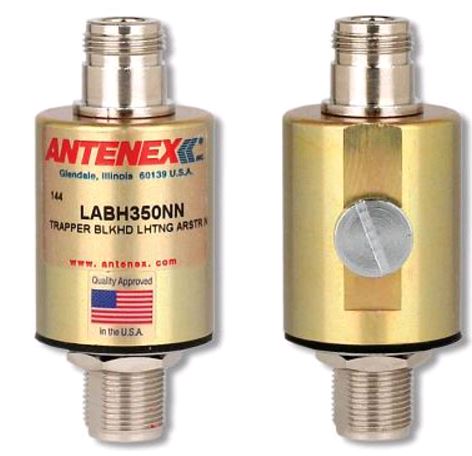

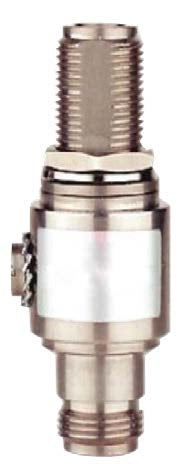

LABH350NN: Lightning Arrestor Bulkhead N-Female to N-Female for up to 1000 MHz
LABH350NN
Shipping calculated at checkout.
LABH350NN: Lightning Arrestor Bulkhead N-Female to N-Female for up to 1000 MHz
More InfoSpecifications ReviewsLABH350NN: Lightning Arrestor Bulkhead N-Female to N-Female for up to 1000 MHz. Optimized for use with systems up to 1000 MHz, provides protection up to 5000 amps.
More Information
TE Connectivity LABH350NN: Lightning Arrestor Bulkhead N-Female to N-Female for up to 1000 MHze
- Frequency Range: 0-1000 MHz
- Max Power: 1000 Watts - PEP
- Breakdown Voltage: 350 Vac
- Impedance: 50 Ohms
- Insertion Loss: 27-500 MHz <0.1 dB
- Insertion Loss: 1000 Mhz <0.25 dB
- VSWR: 1-150 Mhz <1.1:1
- VSWR: 150-1000 MHz <1.2:1
- Protection: 5000 Amps
We Also Recommend
FG9023
FG9023: TE Connectivity / Antenex Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector, 5dBi
$604.59
$604.59
$209.26
$209.26
View Details
FG9026
FG9026: TE Connectivity / Antenex Outdoor Rated 900mhz Fiberglass Base station Omni Antenna N-Female Connector 8dBi
$869.81
$869.81
$311.06
$311.06
View Details
ROSA-HDM1
Omni Antenna Mast or Pole Mount. Antenna Diameter 1.125 to 1.375 inches. Mast or Pole Diameter 1.5 to 2.5 inches. FM2 | ROSA-HDM1
$85.67
$85.67
View Details
AR12106CHSSL-8561029
NEMA 4X Polycarbonate Enclosure for RFID Readers, Cellular / M2M Modems
$322.00
$322.00
View Details
Specifications
| SKU | LABH350NN |
|---|---|
| Manufacturer Part Number | LABH350NN |
| Manufacturer | TE Connectivity |
| Working Frequency | 1000 MHz |
| Bands | Single |
| Impedance | 50 ohms |
| Max Input Power (W) | 1000 Watts PEP |
| VSWR: < X: 1 | 1.1-1.2:1 |
| Connector 1 | N-Female Bulkhead |
| Connector 2 | N-Female |
| Product Condition | New |
