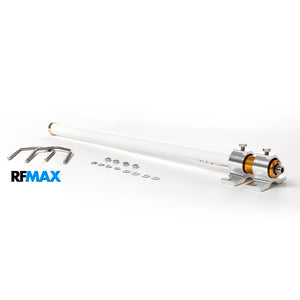

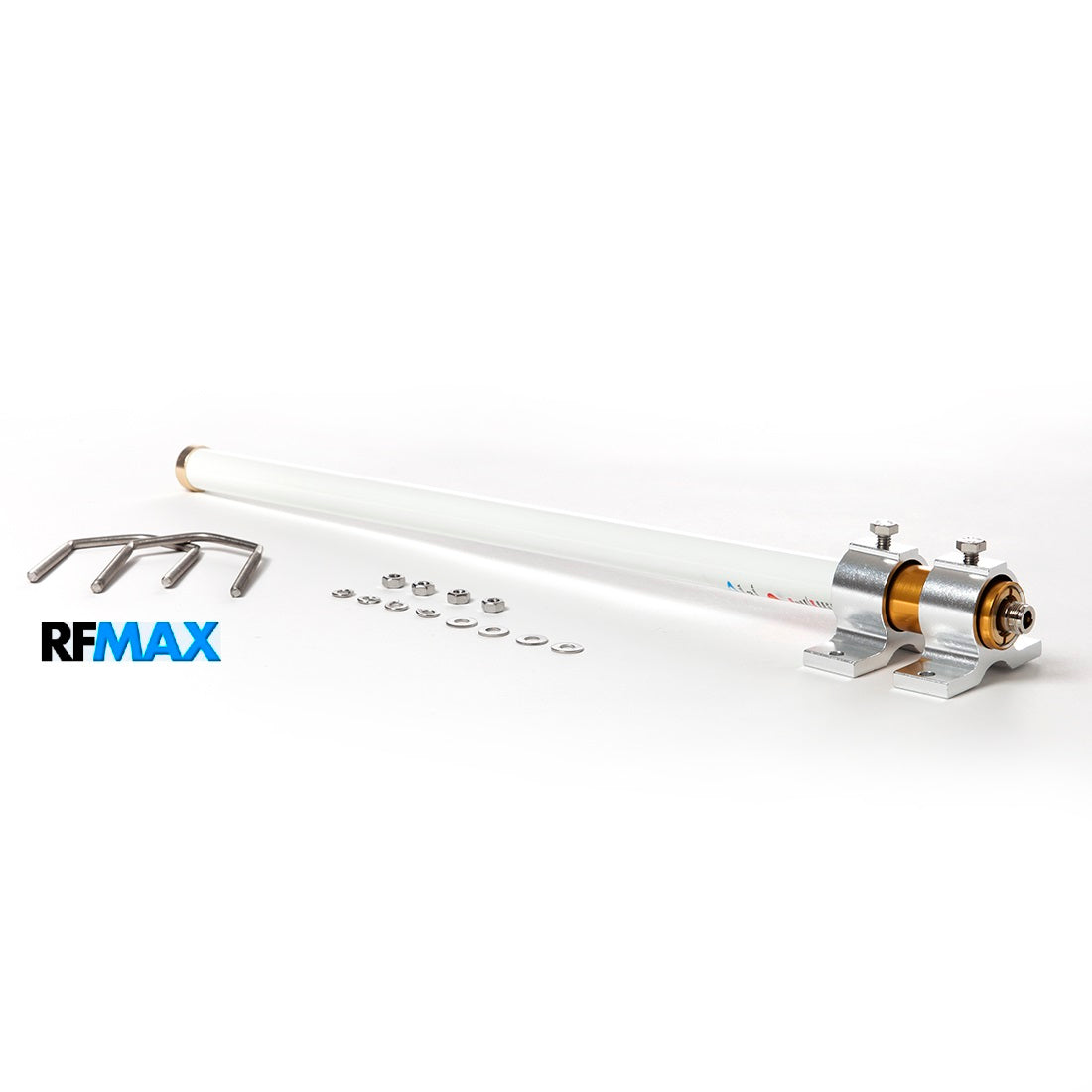

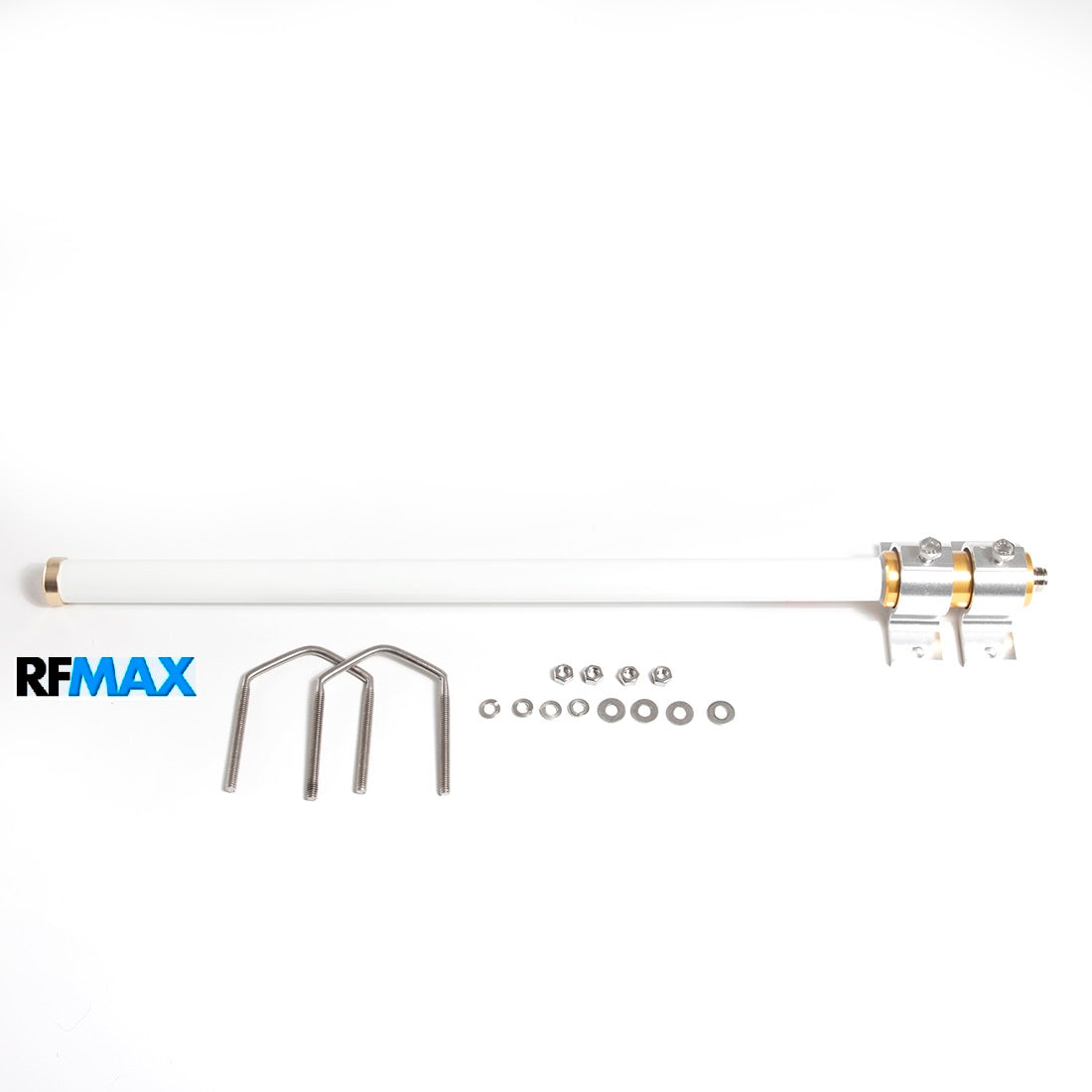

25 Inch Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector and Bracket Mounts Included | A09-F5NF-M

A09-F5NF-M
18 Can ship immediately
Lead time for qty above 18:  Ships in 6-8 Weeks
Shipping calculated at checkout.
25 Inch Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector and Bracket Mounts Included | A09-F5NF-M
25 Inch Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector and Bracket Mounts Included | A09-F5NF-M

25 Inch Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector and Bracket Mounts Included | A09-F5NF-M

More InfoSpecifications Reviews

A09-F5NF-M: 25 Inch Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector and Bracket Mounts Included

Compatible with Digi International ConnectPort® X2, XBee® SX RF, XBee-PRO® 900HP RF, and XTend® 900MHz RF Modems.

More Information

A09-F5NF-M: 25 Inch Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector and Bracket Mounts Included

Compatible with Digi International ConnectPort® X2, XBee® SX RF, XBee-PRO® 900HP RF, and XTend® 900MHz RF Modems.

We Also Recommend

PA9-12: 15x15 inch High Gain Linearly Polarized 902-928 MHz Panel Antenna For ISM or RFID
In Stock
PA9-12
PA9-12: 15x15 inch High Gain Linearly Polarized 902-928 MHz Panel Antenna For ISM or RFID
View Details
FG9026: Laird / Antenex Outdoor Rated 900mhz Fiberglass Base station Omni Antenna N-Female Connector 8dBi
In Stock
FG9026
FG9026: Laird / Antenex Outdoor Rated 900mhz Fiberglass Base station Omni Antenna N-Female Connector 8dBi

View Details
Inline or Bulkhead Lightning Arrestor N-female to N-female - 70 watts 50 ohms up to 4GHz
In Stock
LABH2400NN
Inline or Bulkhead Lightning Arrestor N-female to N-female - 70 watts 50 ohms up to 4GHz
View Details
LMR400 Type Equivalent Low Loss Coax Cable - 10 Feet - N Male - SMA Male
PT400-010-SNM-SSM
LMR400 Type Equivalent Low Loss Coax Cable - 10 Feet - N Male - SMA Male
View Details
Omni Antenna Mast or Pole Mount. Antenna Diameter 1.125 to 1.375 inches. Mast or Pole Diameter 1.5 to 2.5 inches. FM2 | ROSA-HDM1
In Stock
ROSA-HDM1
Omni Antenna Mast or Pole Mount. Antenna Diameter 1.125 to 1.375 inches. Mast or Pole Diameter 1.5 to 2.5 inches. FM2 | ROSA-HDM1
View Details

Specifications

SKU A09F5NFM
Manufacturer Part Number A09-F5NF-M
Manufacturer RFMAX
Antenna Category 900 MHz
Working Frequency 902-928
Gain 5
Working Frequency 2 915
Gain 2 5
Antenna Style Omnidirectional Base Station Antenna
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50
Max Input Power (W) 100
VSWR: < X: 1 2
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 70
Height/Length (inches) 23.5
Height/Length (mm) 597
Thickness/Diameter (inches) 1.31
Thickness/Diameter (mm) 33
Weight (lbs) 0.5
Weight (grams) 227
Material Fiberglass
Operating Temp (celsius) -40 TO +85
Mount Style Screw On
Color White
Connector Type Connector - Bottom
Connector 1 N-Female
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
