Dashboard / Windshield Antenna for Havis and Gamber Johnson Docking Station, Triple Pass, No Drill required | R3WA-G5W-10-TTT

R3WA-G5W-10-TTT
36 Can ship immediately
Lead time for qty above 36:  Ships in 4-6 Weeks
Shipping calculated at checkout.
Dashboard / Windshield Antenna for Havis and Gamber Johnson Docking Station, Triple Pass, No Drill required | R3WA-G5W-10-TTT
Dashboard / Windshield Antenna for Havis and Gamber Johnson Docking Station, Triple Pass, No Drill required | R3WA-G5W-10-TTT
Dashboard / Windshield Antenna for Havis and Gamber Johnson Docking Station, Triple Pass, No Drill required | R3WA-G5W-10-TTT

Dashboard / Windshield Antenna for Havis and Gamber Johnson Docking Station, Triple Pass, No Drill required | R3WA-G5W-10-TTT

More InfoSpecifications Reviews

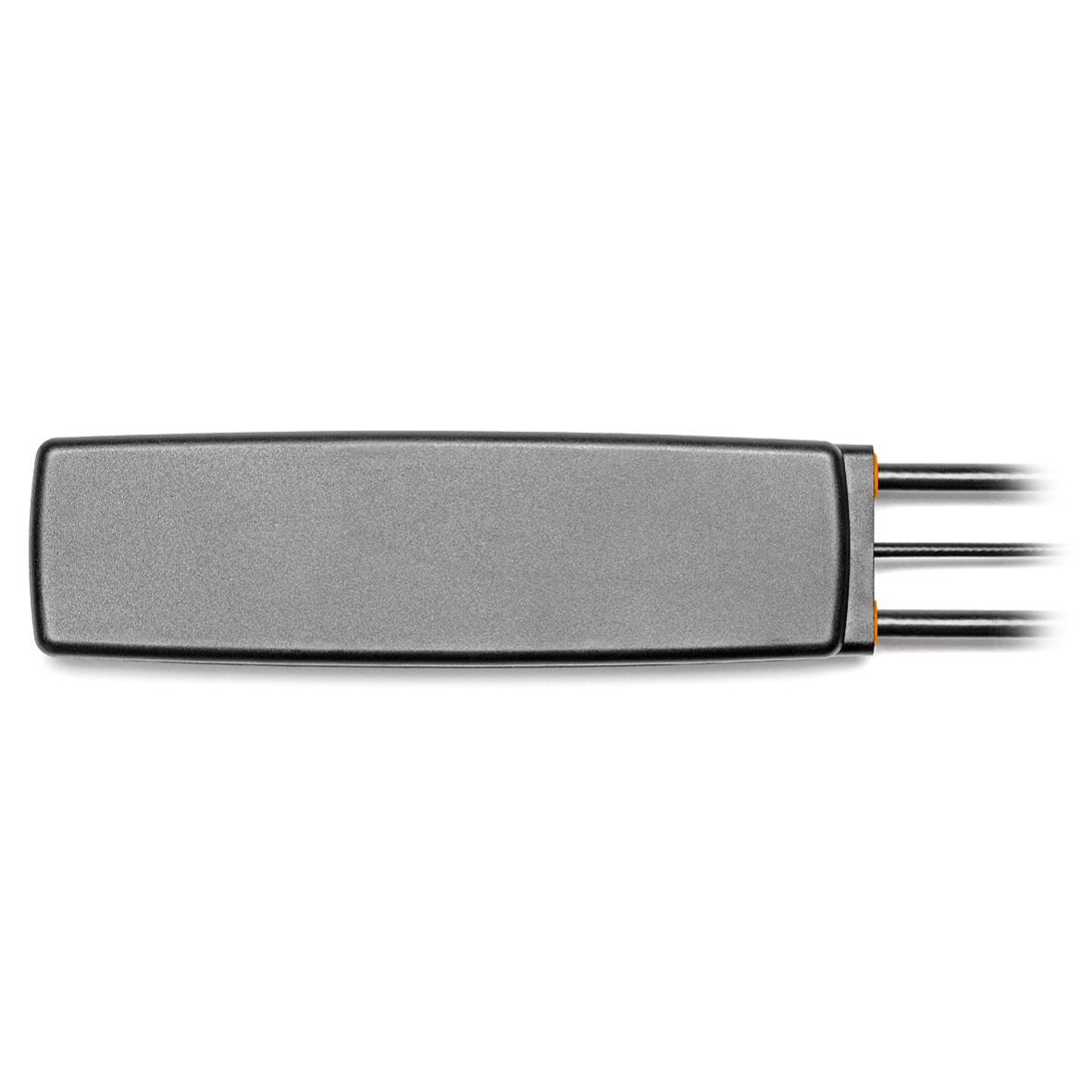

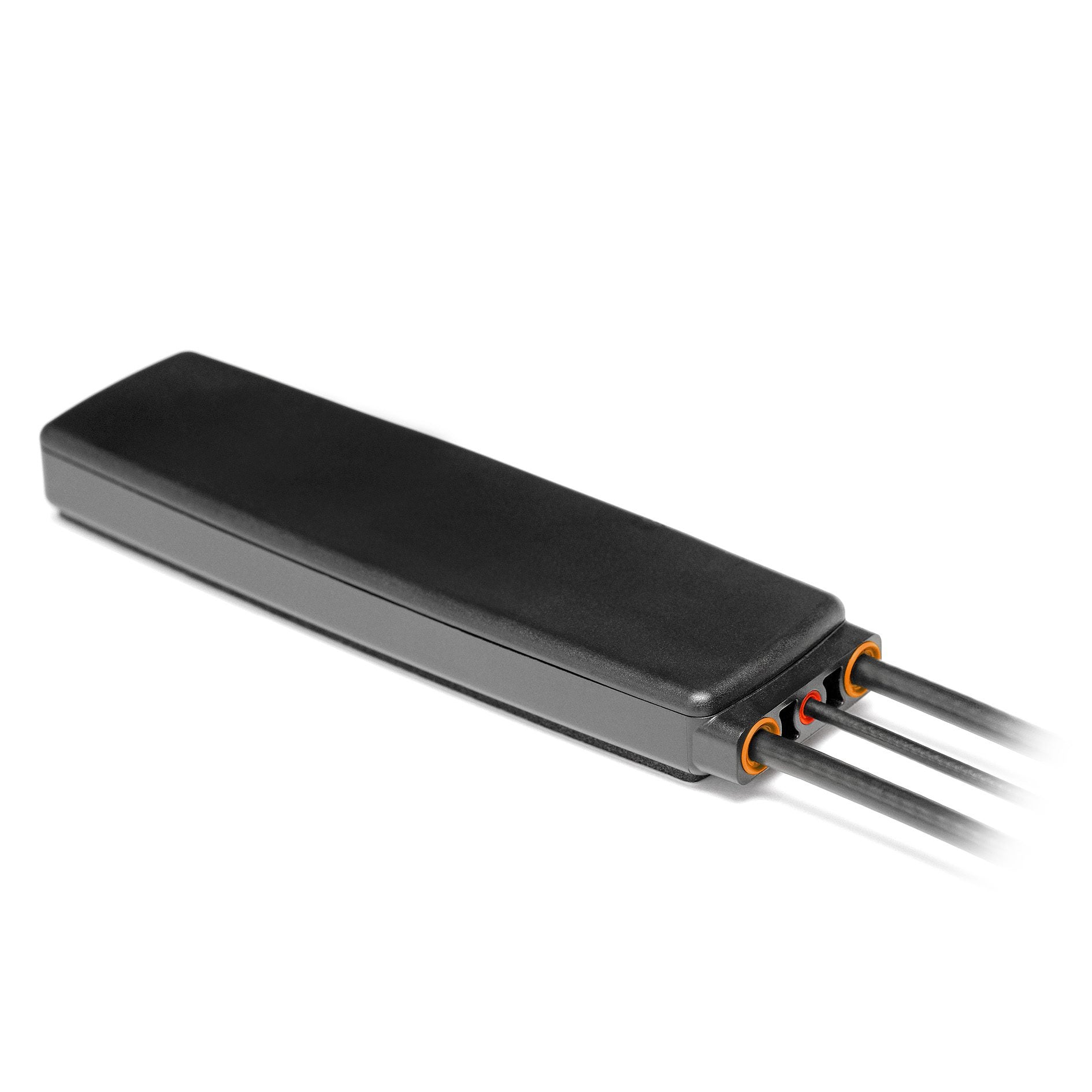

R3WA-G5W-10-TTT: 1x GPS + 1x 5G/4G/LTE +1x WiFi, with TNC Male Connectors. This is a Triple Pass Dashboard / Windshield / Covert Antenna.

Blue heat Shrink = GPS Line, Red heat Shrink = 5G or WiFi

Use with Havis and Gamber Johnson Docking Station / MDTs

***This antenna comes with SMA connectors installed and SMA to TNC adapter screwed on the SMA connector.

More Information

We Also Recommend

3-in-1 Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables | RBDM-G55-17-SSS-B
In Stock
RBDM-G55-17-SSS-B
3-in-1 Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables | RBDM-G55-17-SSS-B
View Details
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
In Stock
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
View Details
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
In Stock
RSF-DB-G4W-SSS
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
View Details
3-in-1 White Adhesive Mount Sharkfin Antenna - GPS+3G/4G/LTE+WiFi with SMA Male | RSF-AW-G4W-SSS
In Stock
RSF-AW-G4W-SSS
3-in-1 White Adhesive Mount Sharkfin Antenna - GPS+3G/4G/LTE+WiFi with SMA Male | RSF-AW-G4W-SSS
View Details
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
In Stock
RBDM-G55WW-17-SSSRR-B
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
View Details
No Drilling-Adhesive Mount Antenna for 4G/LTE Modems/Gateways.12 ft RG316 Cable & SMA | RSK-698-SSM-12
In Stock
RSK-698-SSM-12
No Drilling-Adhesive Mount Antenna for 4G/LTE Modems/Gateways.12 ft RG316 Cable & SMA | RSK-698-SSM-12
View Details

Specifications

SKU R3WAG5W10TTT
Manufacturer Part Number R3WA-G5W-10-TTT
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Antenna Style "Wedge" Multi-Element Antenna
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Operating Temp (celsius) -40 to +85 C
Mount Style Wedge/Adhesive
Color Black
Cable Type RG-174
Number of Cables 3
Cable Length (inches) 120

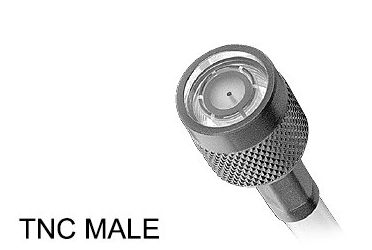

Connector 1 TNC-Male
Includes Direct-Double Side Tape
Vehicular Yes
Product Condition New
