RSK-698-SSM-12: No Drilling-Adhesive Mount Antenna for 4G/LTE Modems/Gateways.12 ft RG316 Cable & SMA

  • $24.99
    Unit price per

RSK-698-SSM-12


22 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
100 $20.00
500 $15.40
Factory lead time:  Ships in 2-4 Weeks

RSK-698-SSM-12: No Drilling-Adhesive Mount Antenna for 4G/LTE Modems/Gateways.12 ft RG316 Cable & SMA

More InfoSpecifications Reviews

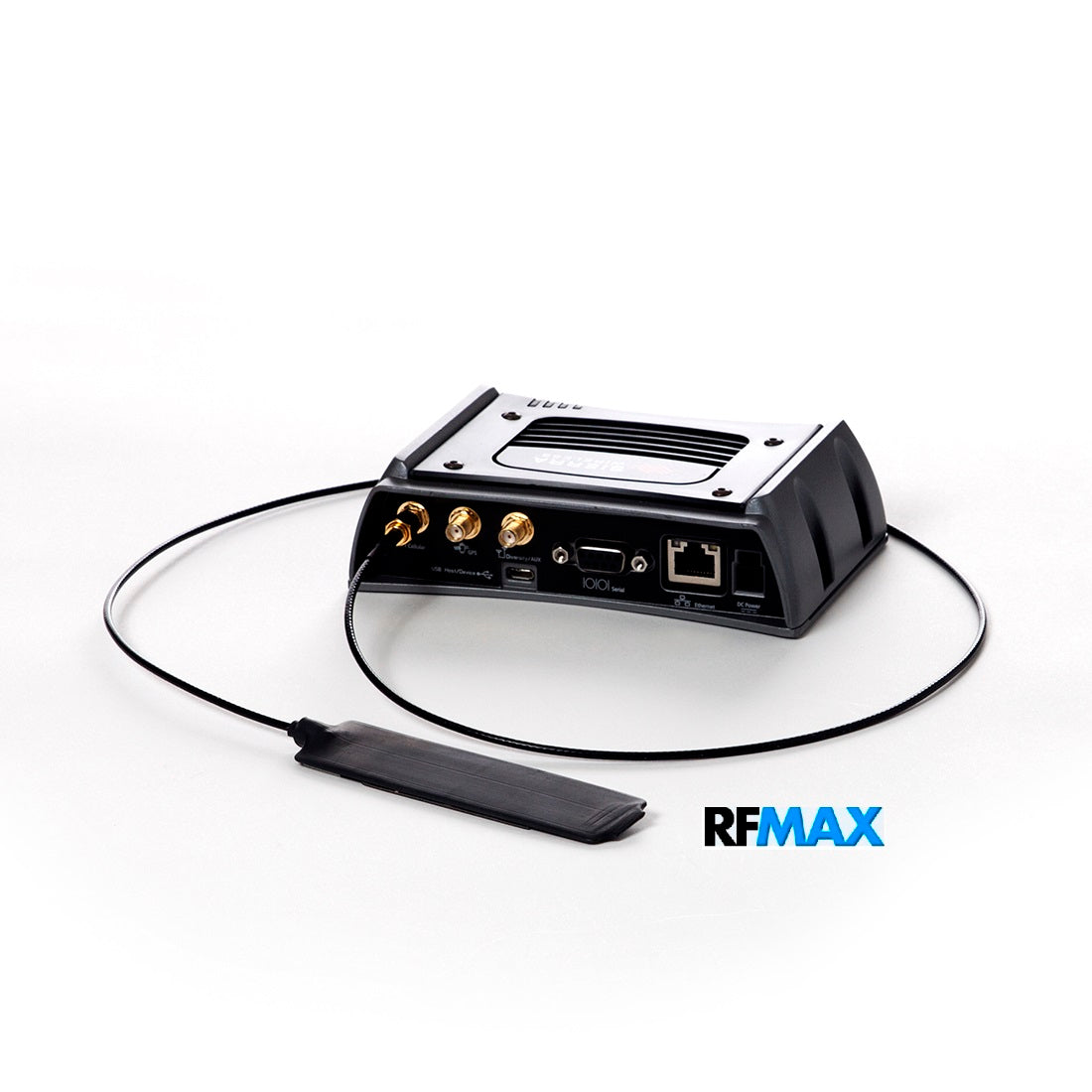

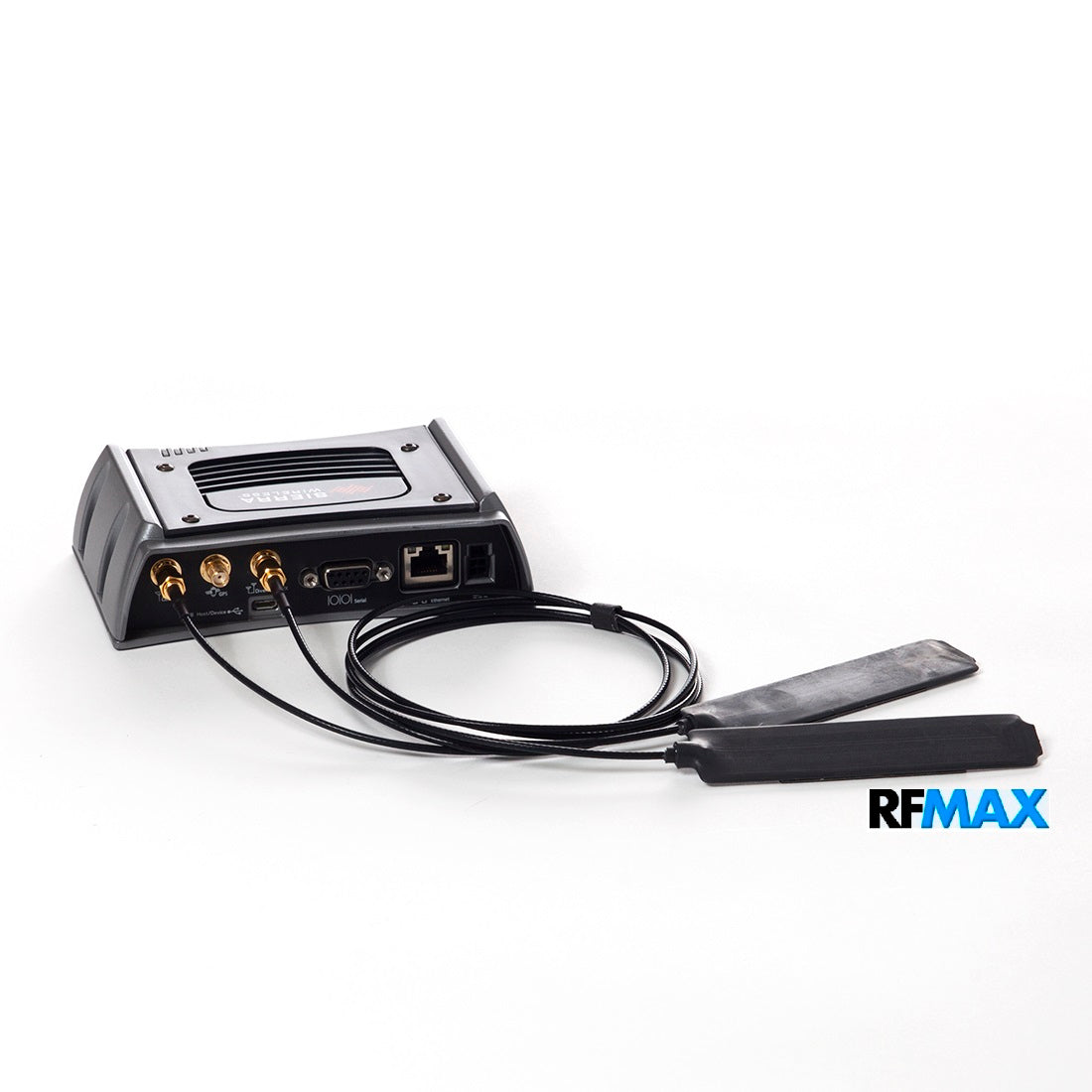

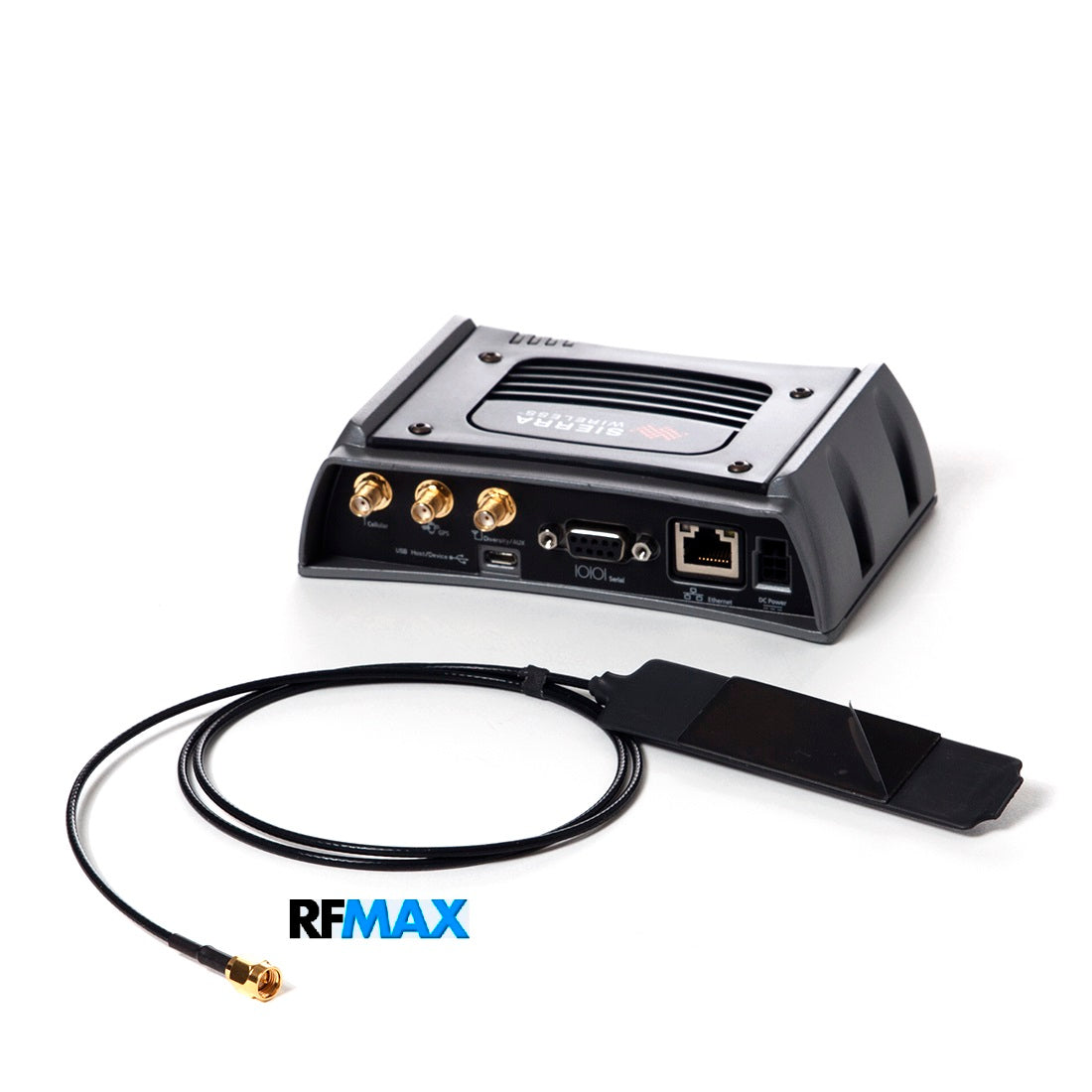

RSK-698-SSM-12: Slim Blade dashboard or windshield mounted covert antenna for 4G/LTE Cellular Modem & Gateways with 12 feet of RG 316 cable & SMA Male connector. No need to drill - easy mounting with adhesive tape (included.) Works with: Sierra Wireless Airlink GX400, GX440, GX450, LS300 & RV50 Works with: Cradlepoint: IBR1100, IBR900, IBR600, IBR600B & IBR350


More Information

FEATURES:

    •Cost-effective, high-performance solution for 698-2700 MHz 3G/4G/LTE

    •Slim, low- profile without sacrificing mechanical performance

    •Adhesive mount - No Drilling!

    •Flexible board

    •IP-67 rating when installed to compliant surface

    •RoHS Compliant Product

    APPLICATIONS:

    •WLAN, LTE and 3G/4G applications

    •Public Safety

    •IoT - Vending/Smart Metering

    •Access Points

    •Vehicular (window, dashboard, visor)

    •Data transmission

    •Works with: Sierra Wireless Airlink GX400, GX440, GX450, LS300 & RV50

    •Works with: Cradlepoint: IBR1100, IBR900, IBR600, IBR600B & IBR350


Specifications

SKU RSK698SSM12
Manufacturer Part Number RSK-698-SSM-12
Manufacturer RFMAX
Product Condition New
Antenna Category 3G/4G/LTE (698-2700 MHz)
Bands Multi
SISO or MIMO SISO
Frequency 1 698-960 MHz
Gain 1 2 dBi
Frequency 2 1710-2170 MHz
Gain 2 2 dBi
Frequency 3 2300-2700 MHz
Gain 3 2 dBi
Impedance 50 Ohm
Max Input Power (W) 3 Watts
VSWR: < X: 1 2.5:1
Horizontal/Azimuth Beamwidth 360 degree
Vertical/Elevation Beamwidth 40/70/55
Cable Length - PT195 12 Foot
Height/Length (inches) 4.16
Height/Length (mm) 105.7
Width (inches) 1.03
Width (mm) 26.16
Thickness/Diameter (inches) 0.082
Thickness/Diameter (mm) 2.08
Weight (lbs) 0.1
Weight (grams) 19
Operating Temp (celsius) -40 to +85
Mount Style Adhesive Tape
Color Black
Cable Type RG-316
IP Rating IP67
OK for Outdoor Use No
Vehicular Yes
Ground Plane Required No
