3-in-1 Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables | RBDM-G55-17-SSS-B
RBDM-G55-17-SSS-B
3-in-1 Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables | RBDM-G55-17-SSS-B

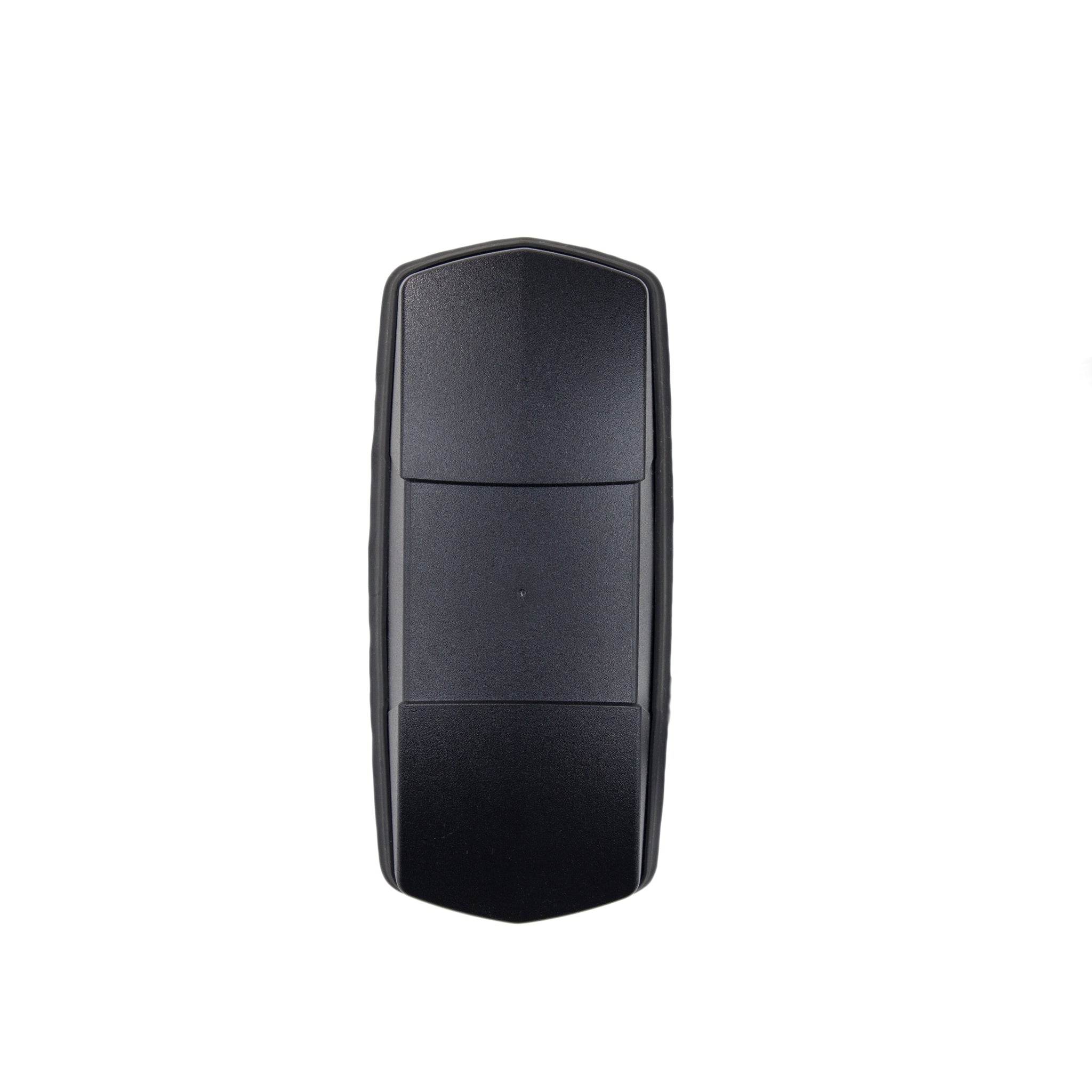

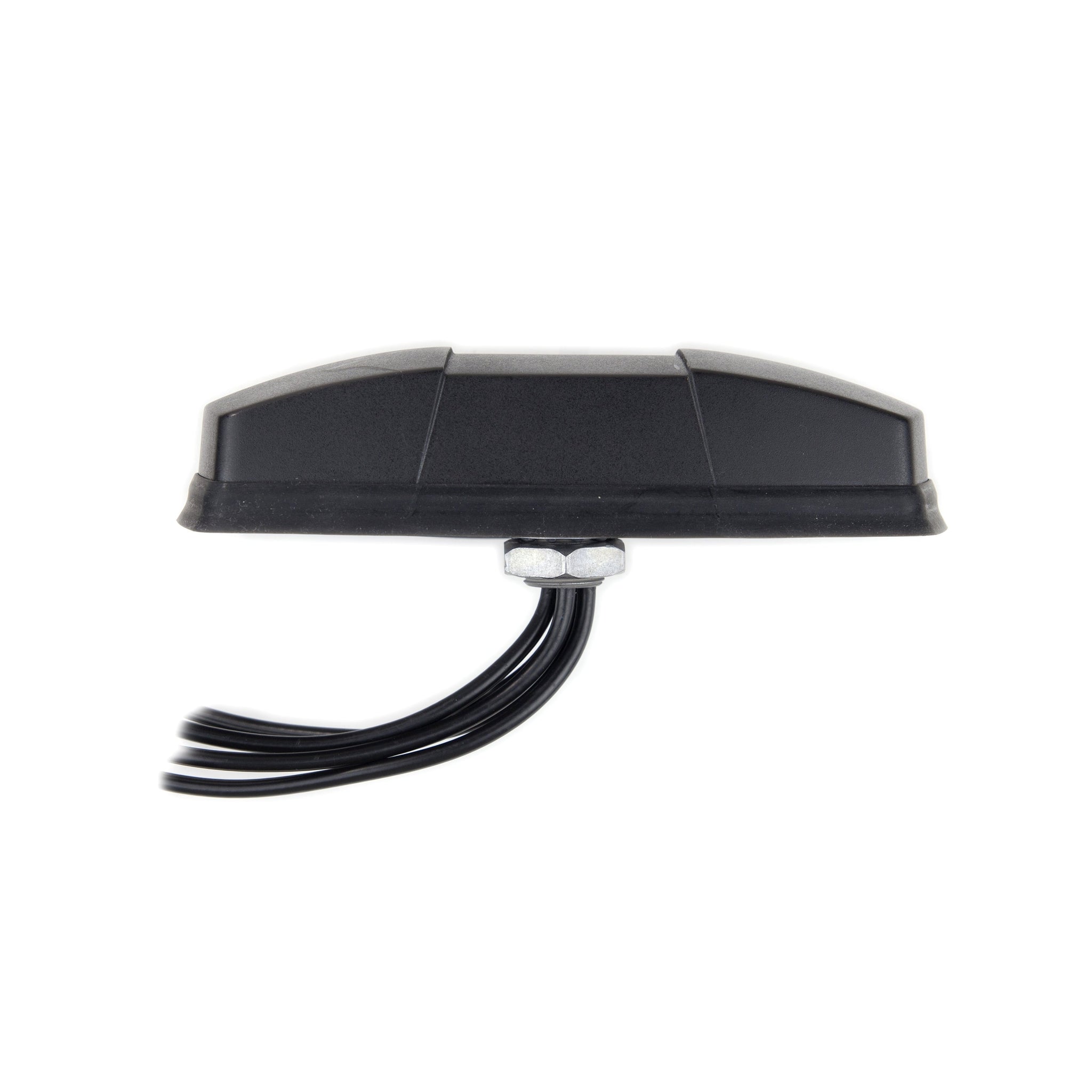

More InfoDocumentsSpecifications ReviewsThe RFMAX "Brick" antenna # RBDM-G55-17-SSS-B is a compact, Low profile, ultra-rugged direct-mount antenna designed for M2M machine-to-machine applications. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to exceed all 3G/4G/LTE/5G specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna is the perfect choice for NEMA enclosures, utility vehicles, or public safety vehicles, including the Ford Explorer / Police Interceptor, Dodge Durango, Chevy Tahoe Etc.
Optimized for: Sierra RV50, RV55, Cradlepoint IBR200
USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
More Information

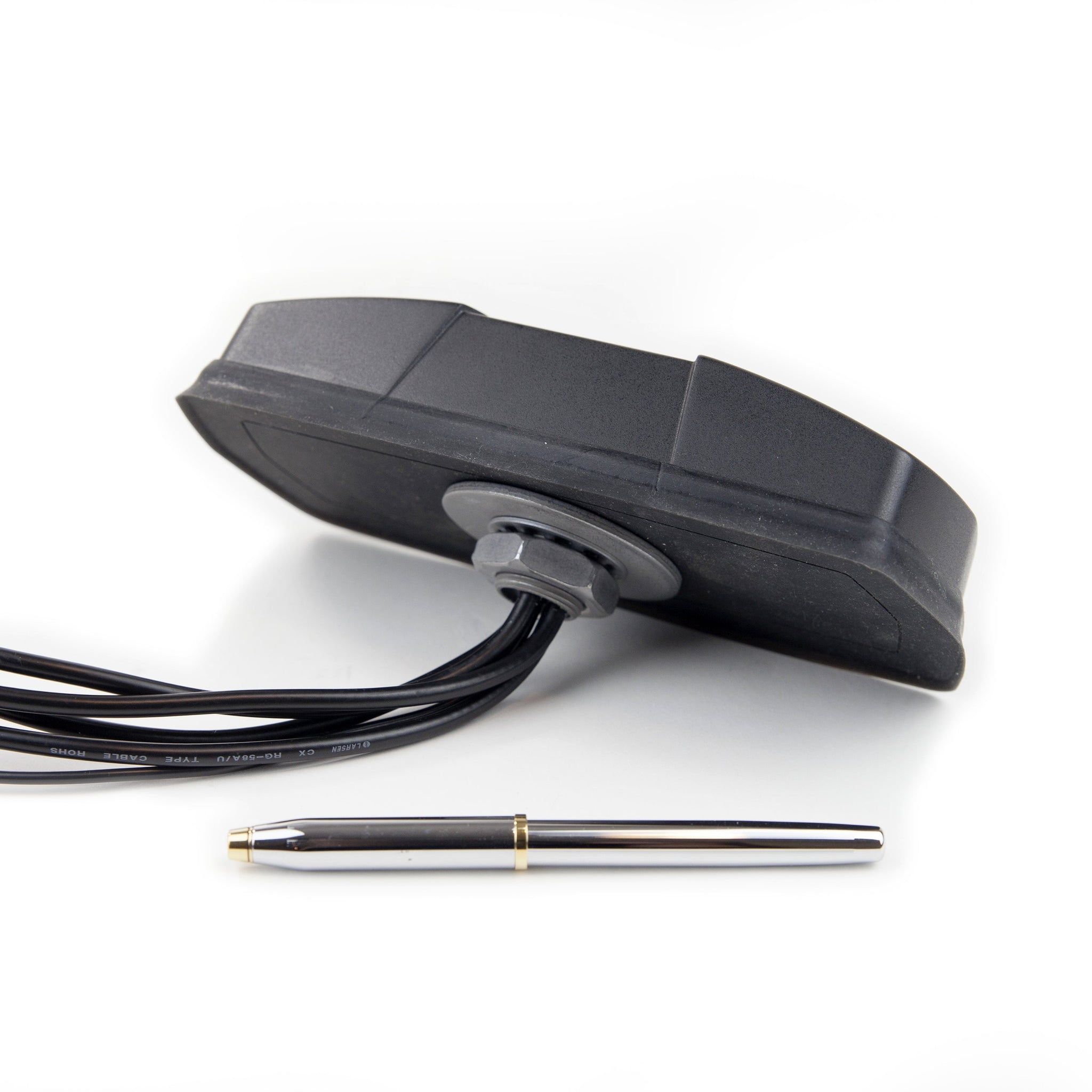

This unit was designed for use with, 1 x GPS and 2 x 3G/4G/5G or MiMo LTE cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc. Our "Brick" Low profile antenna is easy to install using the heavy-duty threaded stud mount which is 100% vandal proof and IP67 rated for year-round indoor or outdoor use. The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network. The antenna includes five 17 foot long, low loss cables with 3 x SMA male connectors.
- RFMAX "Brick" Antenna
- Size: 7.9 x 3.4 x 1.8 Inches
- Same footprint as Antenna Plus, but lower profile
- Elements: 1 GPS + (2) Cellular
- High Gain at all frequencies for maximum connection speeds
- Designed for Indoor or Outdoor Installations (IP67 rated)
- Easy to install, Rugged & 100% Vandal Proof
- Approved for use with all major carriers: AT&T, Verizon, Sprint
- Optimized for RV50, GX450 (No WiFi), IBR950, MC400, MC400lpe, Max BR1-ENT, NTC-140, NTC-6200, CBA850, CBAlpe, IBR1150
- Color: Black
Documents
We Also Recommend
Specifications
| SKU | RBDMG5517SSSB |
|---|---|
| Manufacturer Part Number | RBDM-G55-17-SSS-B |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 600-960 MHz |
| Gain | 2.5 dBi |
| Working Frequency 2 | 1710-2690 MHz |
| Gain 2 | 3.1 dBi |
| Working Frequency 3 | 2400-2500 MHz |
| Gain 3 | 3.2 dBi |
| Working Frequency 4 | 5150-5925 MHz |
| Gain 4 | 3.1 dBi |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS |
| Gain 5 | 30 dB |
| Antenna Style | "Brick" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | <2:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| No Of Elements | 3 |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Weight (lbs) | 2 |
| Material | UV Stable, UL94 Radome |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct Mount |
| Color | Black |
| Number of Cables | 3 |
| Cable Length (inches) | 204 |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
