GPS + 2 x 3G/4G/LTE + 2 x Dual WiFi No Drilling- Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable. | RWA-G44WW-10-SSSRR
More InfoDocumentsSpecifications Reviews***This part is EOL. Click here to view version 2.0 (5G compatible)***

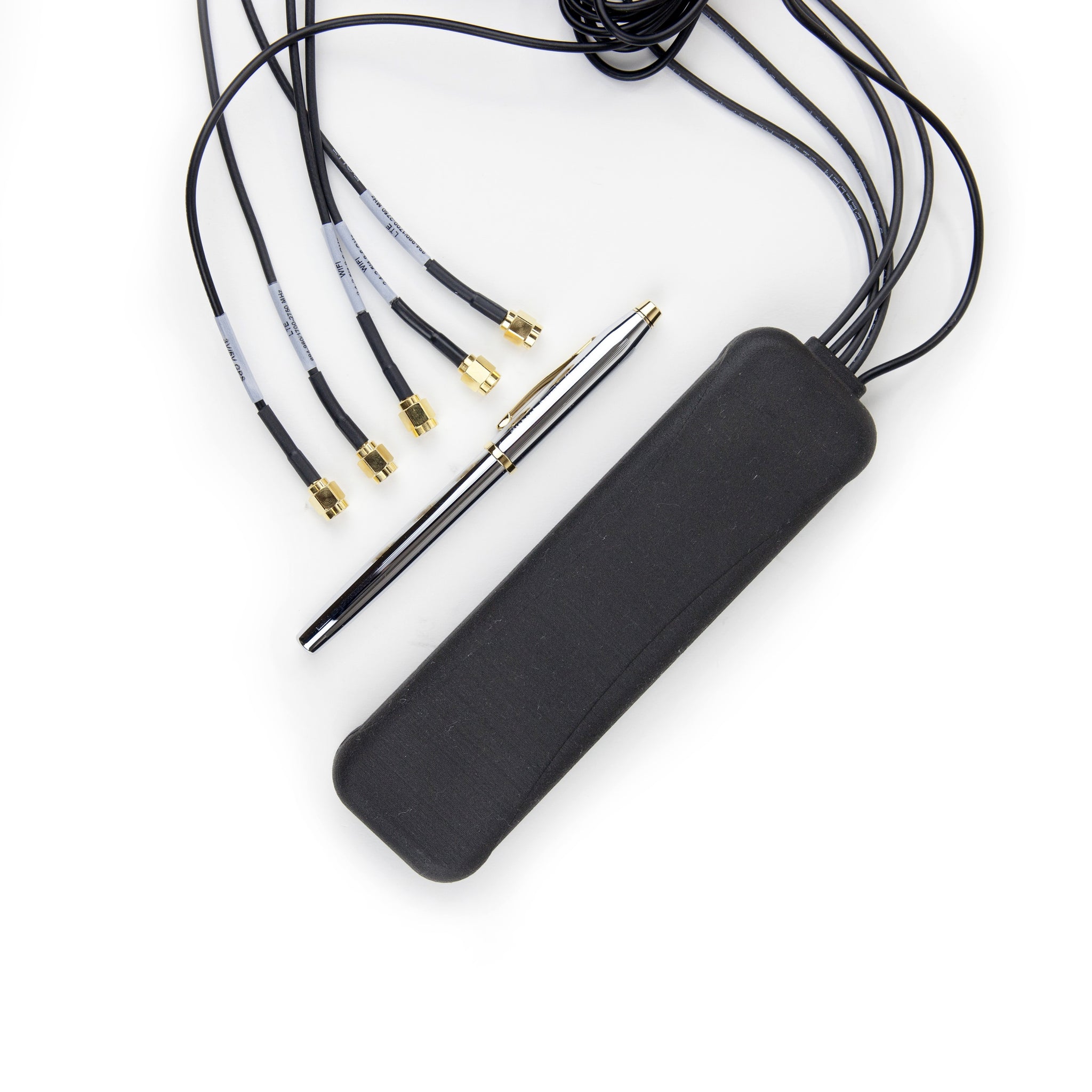

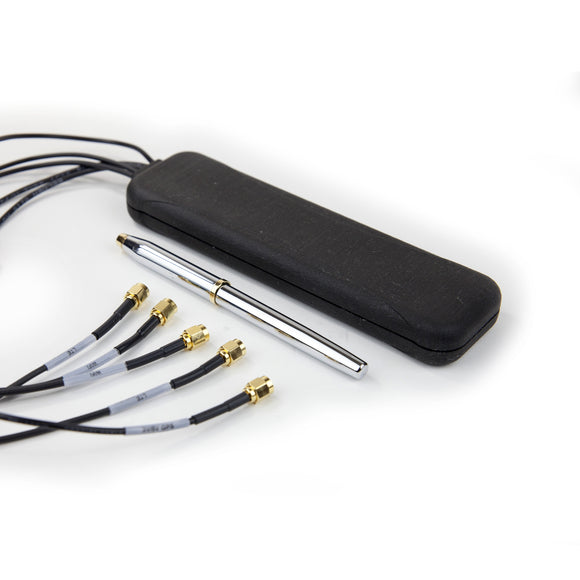

RWA-G44WW-10-SSSRR: No Drilling! Unit mounts using adhesive tape (included) with 3 x 10 foot RG174 cable & SMA male connector for the GPS and LTE line and 2 x 10 foot RG174 cable & RP SMA male connectors for WiFi line. Perfect for leased vehicles. This unit offers very high-performance, customers love using it with their ruggedized tablets, cellular modems, etc. Black, 5 in 1 combination LTE/Cellular+GPS+WiFi covert strip style antenna for modems from the Sierra Wireless AirLink series (GX450, etc.) or Cradlepoint IBR series (IBR900, IBR1100, etc.) Operates at LTE/Cellular : 694-960/1700-2700 MHz, 1575.42 MHz GPS w/26 dB LNA and WiFi: 2.4 GHz and 5.0 GHz.
More Information
The RFMAX RWA-G44WW-10-SSSRR is a 5-in-1 combination antenna for active 3.3 or 5 volt GPS, 2 x Mimo 3G/4G/LTE and 2 x Dual WiFi. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." The unit has adhesive for mounting the antenna to a dashboard, or windshield. This unit is field tested, and provides great connectivity with the Cradlepoint IBR900, IBR1100, IBR600 as well as NTC-140W and Sierra Wireless AirLink GX450 Cellular modems/gateways/routers.
- No Drilling! Excellent Choice for Leased Vehicles.
- 3G/4G/LTE Cellular Frequencies: 695-960 & 1700-2700 Mhz
- Cellular Antenna Gain: 2.5 dBi (2:1 VSWR)
- GPS Frequency: 1575.42 MHz
- GPS Antenna: LNA Gain: 26 db
- WiFi Frequency: 2.4 GHz and 5.0 GHz
- Small, Covert Size: L=7 x W=2 and T=2 Inches
- Max Power: 10 Watts
- Operating Temp: -40 to +85 C
- Cables/Connectors: (3x) 10 foot RG174 wtih SMA Male, (2x) 10 foot RG174 wtih RP-SMA Male
Documents
Specifications
SKU | RWAG44WW10SSSRR |
---|---|
Manufacturer Part Number | RWA-G44WW-10-SSSRR |
Manufacturer | RFMAX |
Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
Working Frequency | 695-2700 MHz (3G/4G/LTE) |
Gain | 2 dBi |
Working Frequency 2 | 1575.42 (GPS) |
Gain 2 | 26 dB (LNA Gain) |
Working Frequency 3 | 2.4-2.5/4.9-6.0 GHz |
Gain 3 | 2 dBi |
Antenna Style | "Wedge" Multi-Element Antenna |
Polarity | Linear |
Bands | Multi |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
Impedance | 50 Ohms |
Max Input Power (W) | 10 |
VSWR: < X: 1 | 2:01 |
Horizontal/Azimuth Beamwidth | 360 |
Material | Black ASA Plastic |
Operating Temp (celsius) | -40 to +85 C |
Mount Style | Wedge/Adhesive |
Color | Black |
Cable Type | RG-174 |
Number of Cables | 5 |
Cable Length (inches) | 120 |
Includes | Direct-Double Side Tape |
IP Rating | IPx7 |
Vehicular | Yes |
