10x10 inch RHCP FCC RFID Antenna. Equivalent to IPJ-A-1001-USA | RCPR-902-8-RTM-8-A

  • $155.82
    Unit price per

RCPR-902-8-RTM-8-A


0 in stock. Subject to factory lead time
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

10x10 inch RHCP FCC RFID Antenna. Equivalent to IPJ-A-1001-USA | RCPR-902-8-RTM-8-A

More InfoSpecifications Reviews

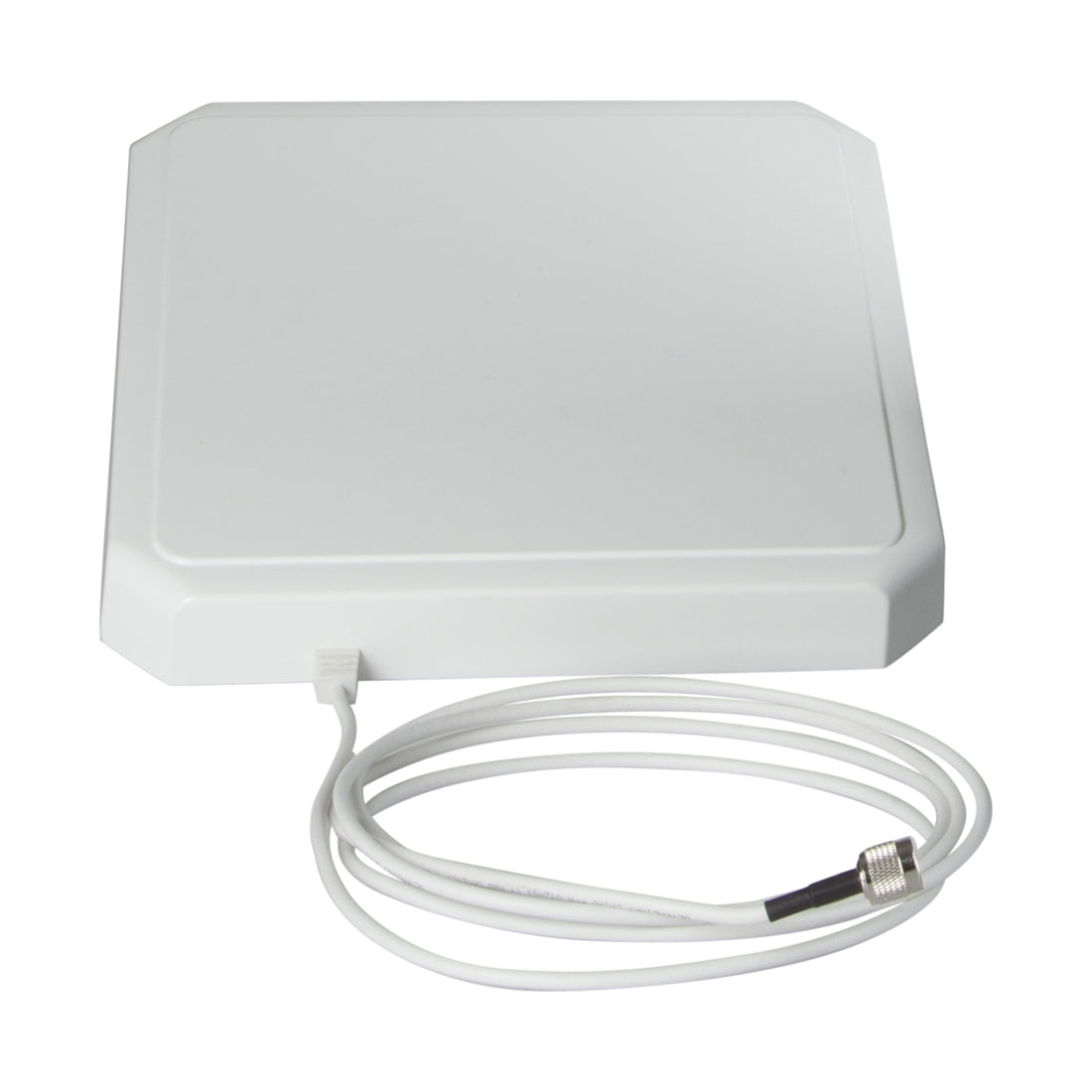

The RFMAX RCPR-902-8-RTM-8-A is the industry standard antenna for passive UHF RFID installations. This unit is a right hand circularly polarized 10x10 inch panel with reception and transmission in the FCC: 902-928 MHz frequency band and operates at 8.5 dBic gain. It is built with a pre-installed 96 inch / 8 foot pigtail and RPTNC-Male connector. Equivalent to: Laird Cushcraft S9028PCRJ96RTN, and Impinj IPJ-A1001-USA (RHCP)

*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.



More Information


Specifications

SKU RCPR9028RTM8A
Manufacturer Part Number RCPR-902-8-RTM-8-A
Manufacturer RFMAX
Working Frequency 902-928 MHz
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP54
Polarity Right Hand Circular
Gain 8.5
Horizontal/Azimuth Beamwidth 70
Vertical/Elevation Beamwidth 70
Connector Type Cable - Bottom Entry
Connector 1 RP TNC-Male
Cable Length (inches) 96
Cable Length (mm) 2438
Height/Length (inches) 10.2
Height/Length (mm) 259
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 1.75
Weight (grams) 1130
Material ABS Housing
Mount Style (2) 1/4-20 threaded studs at 4.875 inch / 124 mm spacing.
Includes 2 each: flat washers, lock washers & hex nuts
Product Condition New
