HDMNT-150MM: Heavy-Duty Antenna Mount for Zebra AN480, AN440, Impinj IPJ-A1000, IPJ-A1001. Also for MIST AP41, AP43, AP61.
HDMNT-150MM
HDMNT-150MM: Heavy-Duty Antenna Mount for Zebra AN480, AN440, Impinj IPJ-A1000, IPJ-A1001. Also for MIST AP41, AP43, AP61.

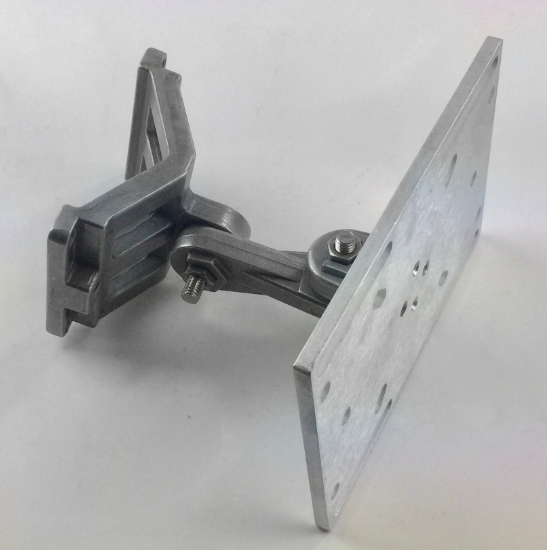

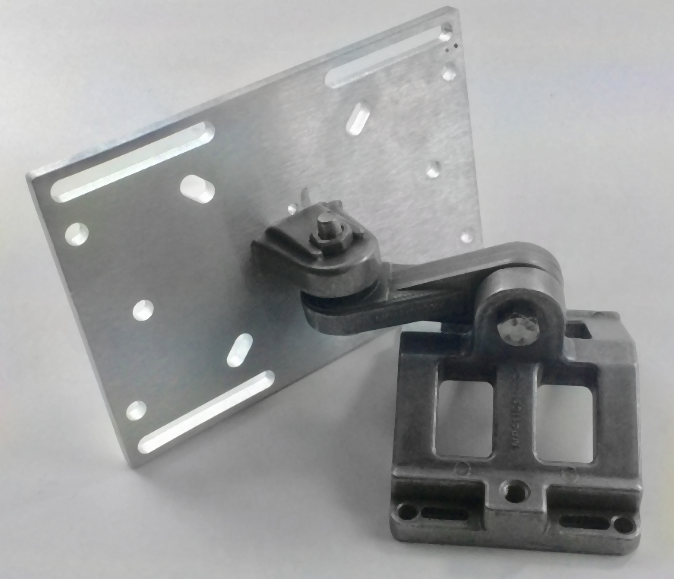

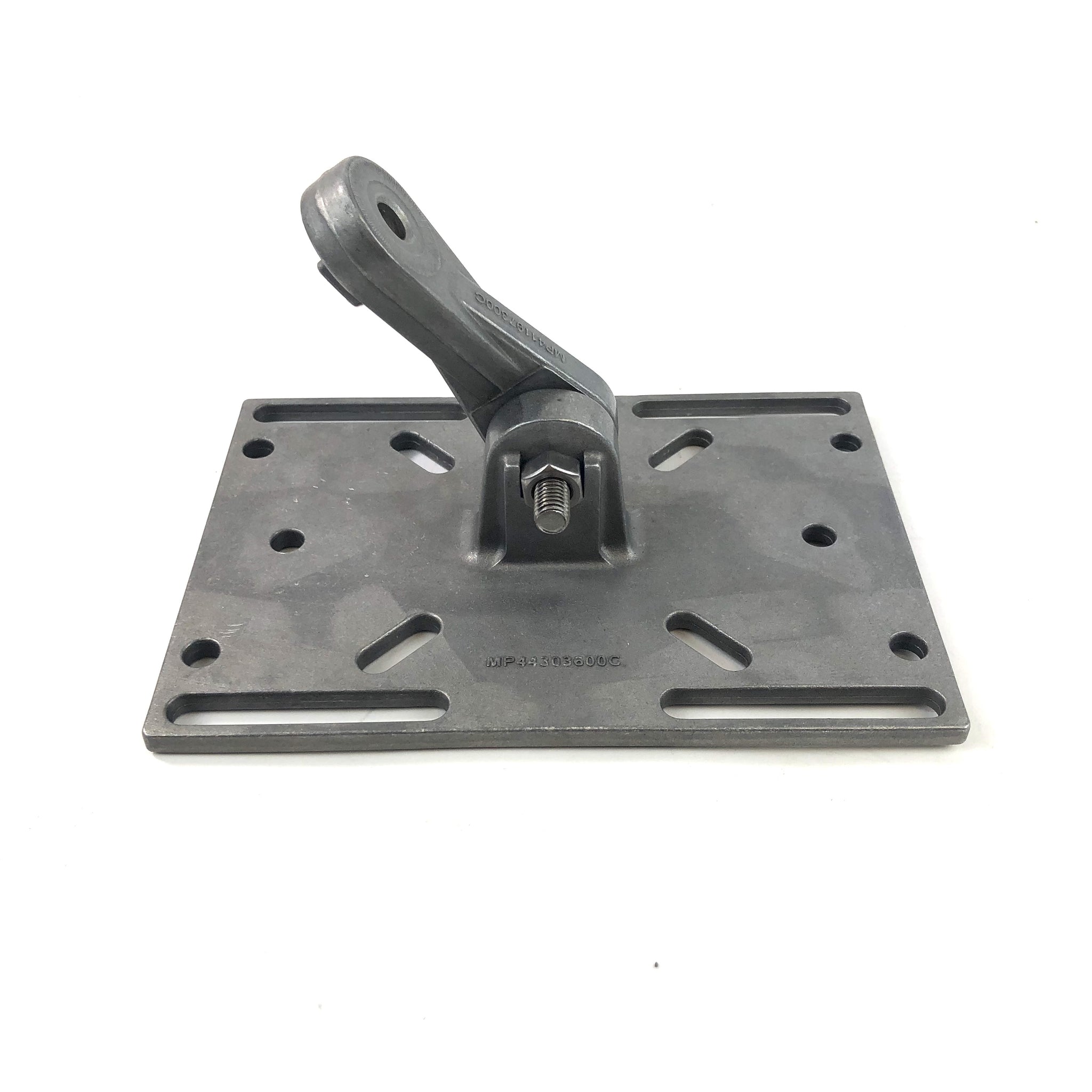

More InfoDocumentsSpecifications ReviewsThe HDMNT-150MM universal antenna mounting solution from RFMAX is THE ONE AND ONLY heavy-duty mounting bracket designed to mount panel antennas from Zebra, Impinj or MIST / Juniper. The unit easily articulates in both the vertical and horizontal plane and is appropriate for indoor or outdoor mounting. The HDMNT-150MM comes with hardware to accommodate mounting to a wall, uni-strut or pole with diameter of 1-3 inches. You can also use "hose clamps" or "worm gear clamps" to attach the mount to a pole or bollard up to 12 inches in diameter.
- This heavy-duty, die-cast bracket was specifically designed for the following antenna models:
- Zebra RFID Antennas AN440, AN480, AN610*, AN620* (*AN610 requires mounting plate # 71631, AN620 requires mounting plate # 71632)
- This mount REPLACES Zebra BRKT-70661-01R and BRKT-70662-01R
- Impinj RFID Antennas IPJ-A1000, IPJ-A1001, IPJ-A1000-EU1, IPJ-A1001-EU1
- MIST / Juniper 4x4 MiMo Antenna # PDQ24518-MI1 (for AP41, AP43, AP61 access points)
- Invengo's XC-AF26
- Hi-Volume Project Pricing Available!
More Information
For many years, the team at RFMAX has heard complaints from system integrators in the field about the pain of mounting antennas from Zebra, Impinj, Mist, etc. There simply are no mounting solutions available for these antennas that were designed with the integrator in mind...until now! The HDMNT-150MM from RFMAX was designed with YOU in mind, the person responsible for mounting these antenans in the field. The HDMNT-150MM is a heavy-duty, die-cast mounting bracket, that allows full articulation in all directions, and will mount directly to a wall, pole, shelving, or uni-strut. By using worm gear hose clamps or straps (NOT included) you can use the HDMNT-150MM to mount to a bollard or utility pole.
Documents
Specifications
| SKU | HDMNT150MM |
|---|---|
| Manufacturer Part Number | HDMNT-150MM |
| Manufacturer | RFMAX |
| Antenna Category | RFID (865-928 MHz) |
| IP Rating | IP67 |
| Horizontal/Azimuth Beamwidth | 180 |
| Vertical/Elevation Beamwidth | 180 |
| Material | Die Cast Aluminum |
| Color | Grey |
| Mount Style | Wall, Pole, Uni-Strut, or Bollard |

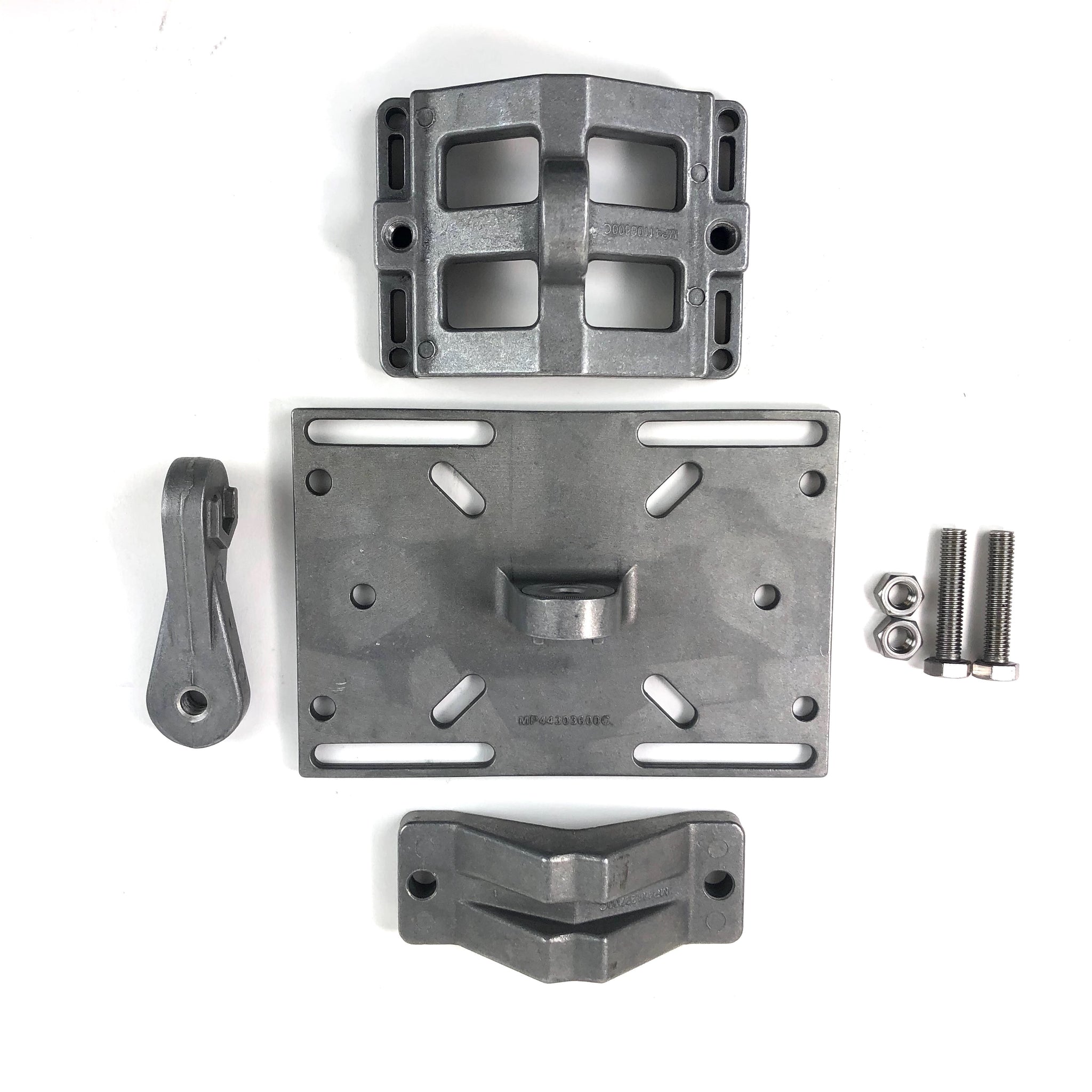

| Includes | Antenna Mounting Plate. Extension Arm. Wall, Pole, Uni-Strut & Bollard Mounting Hardware. |
| Product Condition | New |
