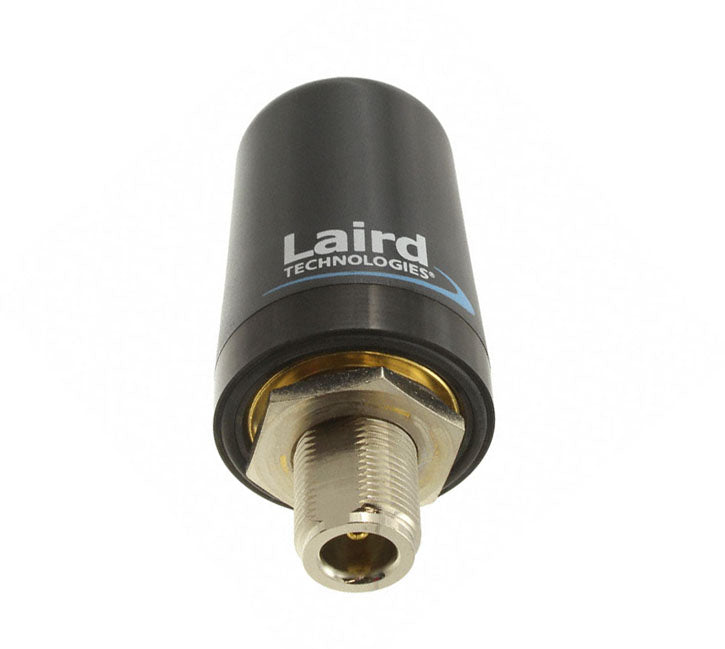

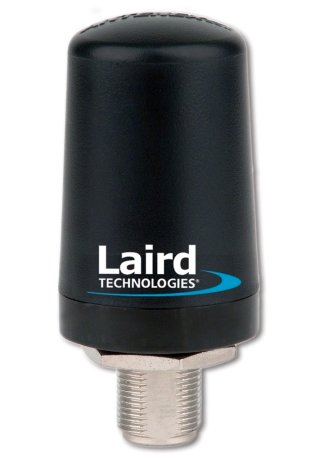

TRAB806/17103P | Phantom Antenna- 806-2500 MHz 2G/3G - N Female - Ground Plane Reqd
TRAB806/17103P
TRAB806/17103P | Phantom Antenna- 806-2500 MHz 2G/3G - N Female - Ground Plane Reqd
More InfoDocumentsSpecifications ReviewsMore Information
The low profile, omni-directional, Phantom Antenna product line, was originally introduced by Antenex, and later acquired by Laird Technologies. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required. The antenna's revolutionary design features field diversity with both vertical and horizontal polarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.
- Whipless Design: The patented whipless design of the Laird / Antenex Phantom antenna allows your fleet to pass through car washes without removing the antenna. Using a low profile, shot-glass or salt shaker design means they don't look like traditional antennas. So, they attract less attention, are subject to less vandalism, and have lower wind resistance. The Phantom Antenna is also less susceptible to damage by low hanging trees, garages or other obstructions.
- Field Diversity: Field diversity means that the antenna is simultaneously sensitive to both the electric and magnetic fields of the signal, like having two antennas. Field diversity makes the antenna resistant to the picket-fence fading and multipath nulls that are found in urban operation and undulating mobile environments.
- Mounting: The Phantom Antenna series is available in several different versions within each frequency range. These versions include: Standard NMO mount or N-Female / permanent mount (metallic ground plane IS required) as well as NMO mount or N-Female / permanent mount with NGP option (where NO metallic ground plane is required) We strongly suggest using the N-Female P/ Permanent models for high risk applications such as digital signage, free-standing kiosks and automated meter reading DCU data collection units where antennas must resist vandalism.
- TRAxxxx (no suffix) = Standard NMO version, metallic ground plane IS required
- TRAxxxxN = NMO mount, No metallic ground plane required
- TRAxxxxP = Permanent/N-Female version, metallic ground plane IS required
- TRAxxxxNP = Permanent/N-Female version, No metallic ground plane required
- Whipless Design: The patented whipless design of our Phantom antenna allows car washes without removing the antenna. Whipless means they don't look like antennas, attract less attention, less vandalism, and have lower wind resistance. The Phantom Antenna is also less susceptible to damage by trees, garages or other obstructions.
- Field Diversity: Field diversity means that the antenna is simultaneously sensitive to both the electric and magnetic fields of the signal, like having two antennas. Field diversity makes the antenna resistant to the picket-fence fading and multipath nulls that are found in urban operation and undulating mobile environments. Permanent
- Mounting: Permanent mount versions of the UHF and higher frequency models are available for high risk applications such as metering where antennas must resist vandalism and achieve economical mounting.
- Versatile: Excellent for voice or telemetry applications.
True Field Diversity design ensures uninterrupted transmissions in urban canyons and rural drop off areas
The Laird Phantom® outperforms most typical 3dB whips in many applications
U.S. Patent Nos. 5,977,931 – 6,292,156 and 7,209,096
diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.Threaded stud mount for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required.
True Field Diversity design ensures uninterrupted transmissions in urban canyons and rural drop off areas
The Laird Phantom® outperforms a 3dB whip in many applications
U.S. Patent Nos. 5,977,931 – 6,292,156 and 7,209,096
Documents
Specifications
SKU | TRAB80617103P |
---|---|
Manufacturer Part Number | TRAB806/17103P |
Manufacturer | Laird |
Antenna Category | 4G/LTE (698-2700 MHz) |
Working Frequency | 806-960 MHz |
Gain | 5.9 dBi |
Working Frequency 2 | 1710-2500 MHz |
Gain 2 | 4.2 dBi |
Working Frequency 3 | 1575.42 Mhz |
Gain 3 | 5.1 dBi |
Working Frequency 4 | 1710-1880 |
Gain 4 | 4.2 dBi |
Working Frequency 5 | 1850-1990 |
Gain 5 | 4.2 dBi |
Antenna Style | Low Profile Antenna |
Polarity | Dual Polarity |
Bands | Multi |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
Impedance | 50 ohms |
Max Input Power (W) | 100 Watts |
Height/Length (inches) | 3.3 Inches |
Height/Length (mm) | 83.8 mm |
Width (inches) | 1.44 |
Width (mm) | 36.6 |
Weight (lbs) | 0.35 |
Weight (grams) | 159.1 |
Material | ABS Radome |
Operating Temp (celsius) | (-40 C) to 85 C |
Mount Style | N-Female-permanent 5/8 Inch mount |
Color | Black |
Connector Type | Connector - Bottom |
Connector 1 | N-Female |
Includes | Or-Ring, Star Washer, Hex Nut |
OK for Outdoor Use | Yes |
Vehicular | No |
Ground Plane Required | Yes |
Product Condition | New |
