GPSDM700/5800SSS: 3G/4G/LTE/GPS 3-in-1 Roof Mount Antenna - SMA-Male

More InfoDocumentsSpecifications Reviews

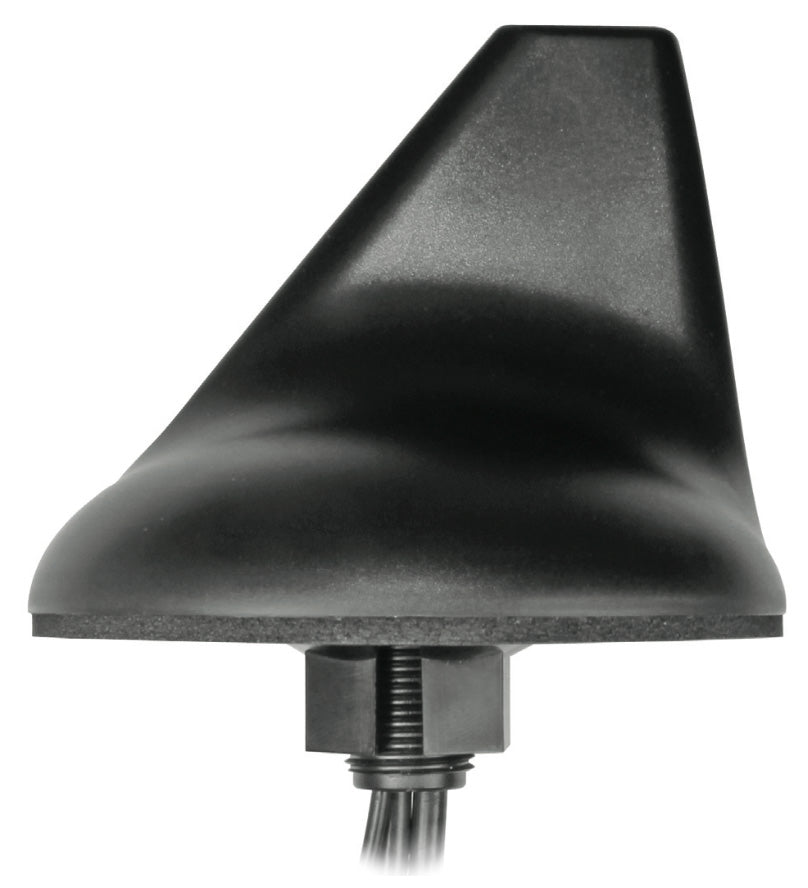

The GPSDM700/5800SSS is a roof mounted vehicular 3-in-1 antenna with a threaded mounting stud. The unit is IP67 rated, and perfectly suited for use with police cruisers, ambulances, transit buses and for fleets of utility service vans & trucks. The antenna is multi-band and consists of three separate antenna elements: 3G/4G-LTE cellular, 2.4 & 5Ghz WiFi, and active 1575 Mhz GPS.

More Information

This state-of-the-art, direct mount multi band Antenna from Pulse Electronics operates from 698 thru 5875 MHz, including LTE. The antenna is ideal for voice, mobile data, Public Safety, WLAN and asset tracking applications. The rugged,yet aesthetically pleasing design provides UV and IP-65 protection to ensure a long, reliable, maintenance-free life.

The antenna mount can accommodate up to a 5/8” (16 mm) thick surface. The GPSDM700/5800SSS has 3 cables to optimally support the different technologies. Wireless voice, data and LTE frequencies are supported by a single low-loss RG-58 cable. WLAN operates on a separate RG-58 cable. The 26 dB gain GPS antenna has its own RG-174 cable.


  • Single antenna supports multiple applications/ technologies
  • Eliminates “antenna farm” vehicle appearance
  • Separate cables create maximum application flexibility
  • Easily mounted through a single 3/4” hole
  • RoHS Compliant Product
  • (3) Cables with SMA Male Connectors



  • Mobile and Fixed Broadband
  • Navigation/Asset Tracking/Fleet Management
  • LTE and 700 MHz Public Safety



Manufacturer Part Number GPSDM700/5800SSS
Manufacturer Pulse
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency (GSM) 698-960/1710-2170/ 2300-2700
Working Frequency 2 (WiFi) 2400-2485/5150-5875
Working Frequency 3 (GPS) 1575.42
Bands Multi
Directional or Omni Omnidirectional
Color Black
Connector Type Cable - Bottom Entry
Cable Type RG-58/U
Number of Cables 3
Cable Length (inches) 17 feet
Connector 1 SMA-Male
Connector 2 SMA-Male
Connector 3 SMA Male
IP Rating IP65
Vehicular Yes
Product Condition New
