TRAT1420 | Phantom Omni Antenna- 142-160 MHz - NMO - Ground Plane Reqd VHF Low Profile Antenna White

  • $88.58
    Unit price per

TRAT1420


7 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $83.20
25 $79.59
100 $76.27
250 $72.73
500 $72.26
Lead time for qty above 7:  Ships in 8-10 Weeks

TRAT1420 | Phantom Omni Antenna- 142-160 MHz - NMO - Ground Plane Reqd VHF Low Profile Antenna White

TRAT1420 | Phantom Omni Antenna- 142-160 MHz - NMO - Ground Plane Reqd VHF Low Profile Antenna White

More InfoDocumentsSpecifications Reviews

Note: Field tuning is REQUIRED for this antenna, see tuning guide below.

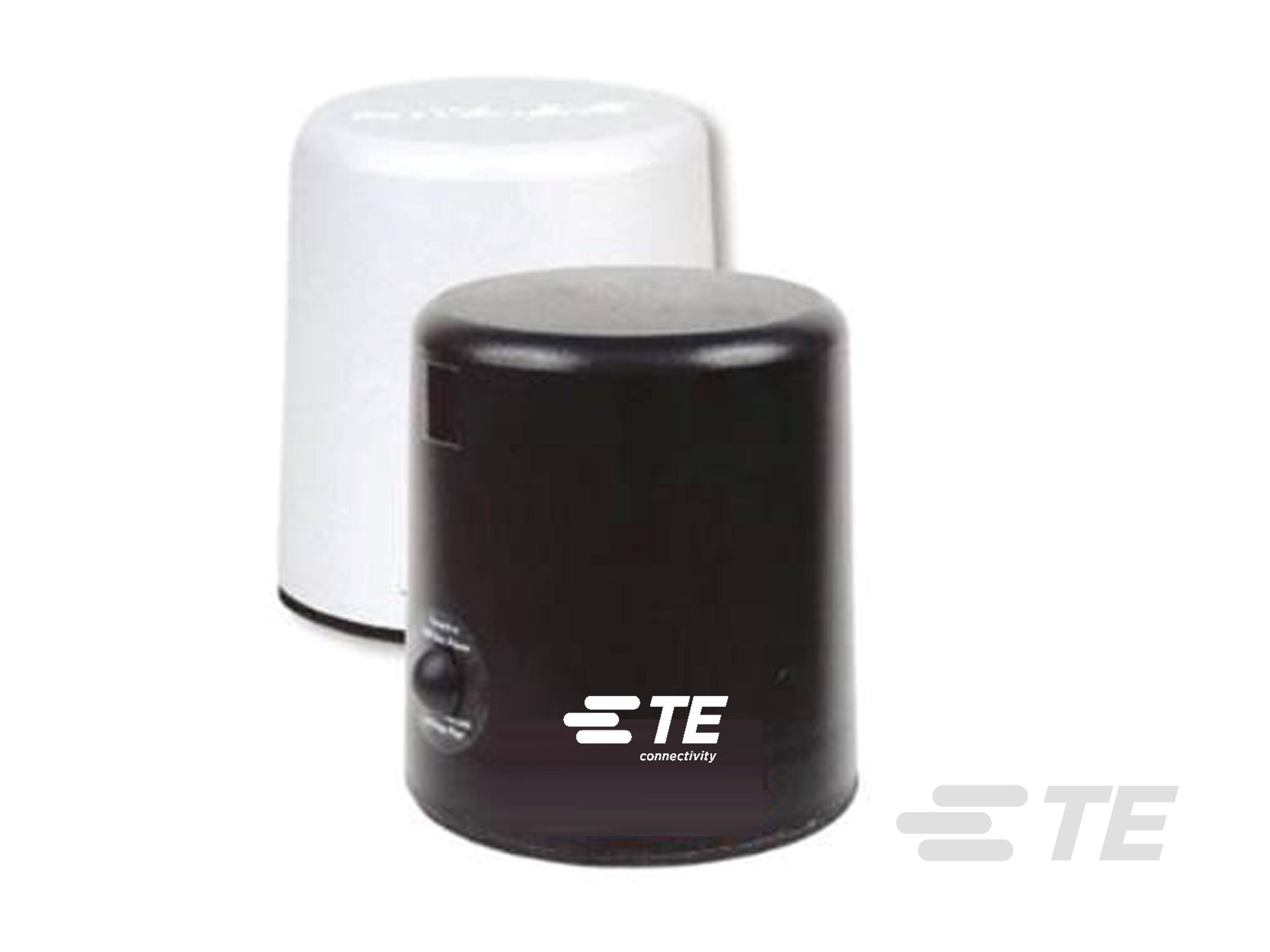

This unit is a White 'Phantom' style / Stealth VHF Omni-directional antenna with NMO-mobile mount operating at 142-160 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model REQUIRES mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The low profile, omni-directional, Phantom Antenna product line, was originally introduced by Antenex, and later acquired by Laird Technologies. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required. The antenna's revolutionary design features field diversity with both vertical and horizontal polarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.

Documents


Specifications

SKU TRAT1420
Manufacturer Part Number TRAT1420
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 142-160 MHz
Gain Unity
Antenna Style Phantom Low Profile
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 60 Watts
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 80
Height/Length (inches) 3.3 Inches
Height/Length (mm) 83.8 mm
Width (inches) 3.25
Width (mm) 82.6
Weight (lbs) 0.35
Weight (grams) 159.1
Operating Temp (celsius) (-40 C) to 85 C
Mount Style NMO-mobile mount
Color White
Connector Type Connector - Bottom
Connector 1 NMO
Includes O-Ring
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
