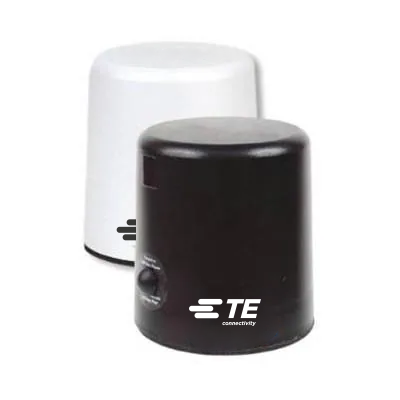

TRABT1560 | Phantom Omni Antenna- 156-172 MHz - NMO - Ground Plane Reqd VHF Low Profile Antenna Black

  • $88.58
    Unit price per

TRABT1560


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $83.20
25 $79.59
100 $76.27
250 $72.73
500 $72.26
Lead time:  Ships in 8-10 Weeks

TRABT1560 | Phantom Omni Antenna- 156-172 MHz - NMO - Ground Plane Reqd VHF Low Profile Antenna Black

TRABT1560 | Phantom Omni Antenna- 156-172 MHz - NMO - Ground Plane Reqd VHF Low Profile Antenna Black

More InfoDocumentsSpecifications Reviews

Note: Field tuning is REQUIRED for this antenna, see tuning guide below.

This unit is a Black 'Phantom' style / Stealth VHF Omni-directional antenna with NMO-mobile mount operating at 156-172 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model REQUIRES mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The low profile, omni-directional, Phantom Antenna product line, was originally introduced by Antenex, and later acquired by Laird Technologies. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required. The antenna's revolutionary design features field diversity with both vertical and horizontal polarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.

Documents


Specifications

SKU TRABT1560
Manufacturer Part Number TRABT1560
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 156-172 MHz
Gain Unity
Antenna Style Phantom Low Profile
Polarity Dual Polarity
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 60 Watts
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 3.3 Inches
Height/Length (mm) 83.8 mm
Width (inches) 3.25
Width (mm) 82.6
Weight (lbs) 0.35
Weight (grams) 159.1
Operating Temp (celsius) (-40 C) to 85 C
Mount Style NMO-mobile mount
Color Black
Connector Type Connector - Bottom
Connector 1 NMO
Includes O-Ring
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
