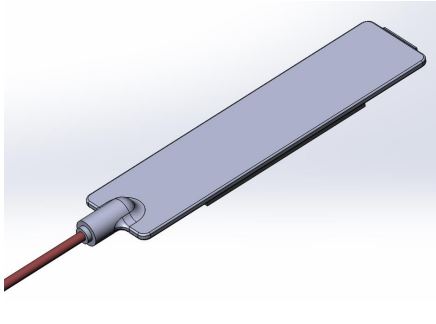

SB698SMA3: Stealth Blade Antenna for 698-960/1710-2170/2300-2700MHz (LTE) with 3 Ft of RG 316 Coax Cable

SB698SMA3
0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $17.78
25 $16.48
100 $15.11
250 $13.73
500 $12.58
1000 $11.84
Lead time:  Ships in 14-16 Weeks
Shipping calculated at checkout.

SB698SMA3: Stealth Blade Antenna for 698-960/1710-2170/2300-2700MHz (LTE) with 3 Ft of RG 316 Coax Cable

More InfoSpecifications Reviews

SB698SMA3: Stealth Blade Antenna for 698-960/1710-2170/2300-2700MHz (LTE) with 3 Ft of RG 316 Coax Cable

More Information

Features:

  • Cost-effective, high-performance solution for LTE
  • Slim, low- profile without sacrificing mechanical performance
  • Adhesive mount
  • Flexible board
  • IP-67 rating when installed to compliant surfac
  • RoHS Compliant Product

Applications:

  • WLAN, LTE and 3G/4G applications
  • Public Safety
  • IoT - Vending/Smart Metering
  • Access Points
  • Vehicular (window, dashboard, visor)
  • Data transmission

We Also Recommend

3-in-1 Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables | RBDM-G55-17-SSS-B
In Stock
RBDM-G55-17-SSS-B
3-in-1 Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables | RBDM-G55-17-SSS-B
View Details
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
In Stock
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
View Details
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
In Stock
RSF-DB-G4W-SSS
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
View Details
GPS & 5G/4G 2-in-1 Antenna for Dashboard/Windshield 10 ft Cables & SMA. Dual-Pass RF. Adhesive Mount. R2G5A-10SSM
In Stock
R2G5A-10SSM
GPS & 5G/4G 2-in-1 Antenna for Dashboard/Windshield 10 ft Cables & SMA. Dual-Pass RF. Adhesive Mount. R2G5A-10SSM
View Details
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
In Stock
RBDM-G55WW-17-SSSRR-B
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
View Details

Specifications

SKU SB698SMA3
Manufacturer Part Number SB698SMA3
Manufacturer Pulse
Antenna Category 4G/LTE (698-2700 MHz)
Working Frequency 698-960 MHz
Gain 2 dBi
Working Frequency 2 1710-2170 MHz
Gain 2 2 dBi
Working Frequency 3 2300-2700 MHz
Gain 3 2 dBi
Bands Multi
SISO or MIMO SISO
Impedance 50 Ohm
Max Input Power (W) 3 Watts
VSWR: < X: 1 2.5:1
Horizontal/Azimuth Beamwidth 360 degree
Vertical/Elevation Beamwidth 40/70/55
Cable Length - PT195 3 Foot
Height/Length (inches) 4.16
Height/Length (mm) 105.7
Width (inches) 1.03
Width (mm) 26.16
Thickness/Diameter (inches) 0.082
Thickness/Diameter (mm) 2.08
Weight (lbs) 0.1
Weight (grams) 19
Operating Temp (celsius) -40 to +85
Mount Style Adhesive Tape
Color Black
Cable Type RG-316
IP Rating IP67
Vehicular Yes
Product Condition New
