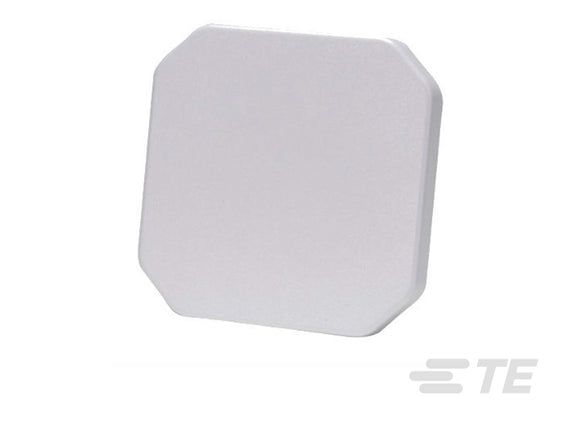

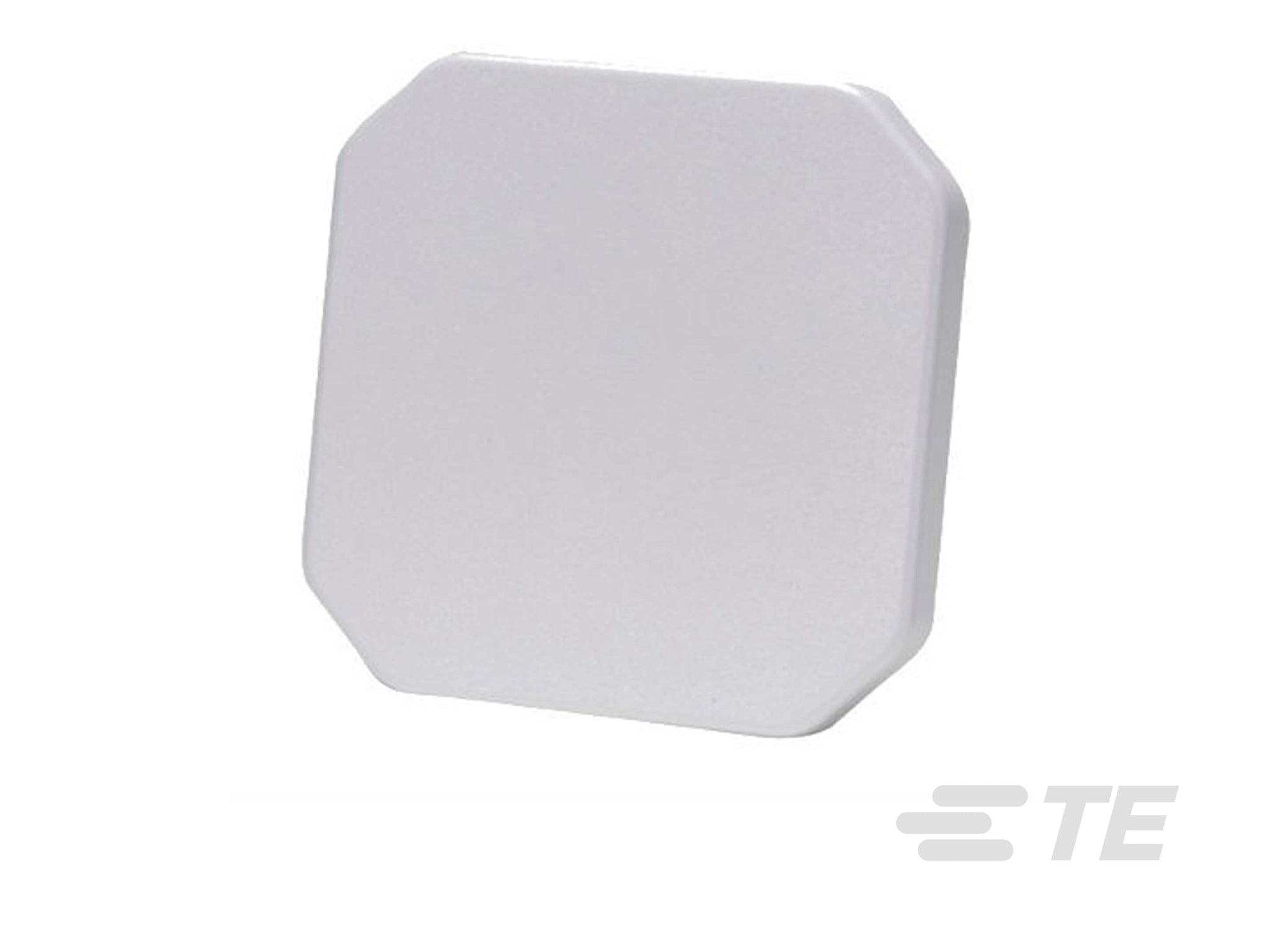

S9025PRNF 5x5 inch RHCP IP-67 Rated Ultra Rugged RFID Antenna - N Female S9025PRNF.

$176.25
Unit price per

S9025PRNF

Shipping calculated at checkout.

S9025PRNF 5x5 inch RHCP IP-67 Rated Ultra Rugged RFID Antenna - N Female S9025PRNF.

More Info Specifications Reviews

The S9025PRNF is a ultra-rugged IP67 rated Right Hand Circularly Polarized RFID Antenna. This antenna operates in the FCC 902-928 Mhz range and offers 5 dBic gain. Size 5 x 5 inch with fixed N-Female Connector.

*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.

(Bracket sold separately, Click Here)

More Information

Specifications

SKU	S9025PRNF
Manufacturer Part Number	S9025PRNF
Manufacturer	Laird
Working Frequency	902-928 MHz
Antenna Category	RFID (865-928 MHz)
Bands	Single
IP Rating	67
Polarity	Right Hand Circular
Gain	5.5
Horizontal/Azimuth Beamwidth	100
Vertical/Elevation Beamwidth	100
Connector Type	Connector - Rear
Connector 1	N-Female
Height/Length (inches)	5.2
Height/Length (mm)	133
Operating Temp (celsius)	-30 to +70
Thickness/Diameter (inches)	0.71
Thickness/Diameter (mm)	18
Width (inches)	5.2
Width (mm)	133
Weight (lbs)	0.8
Weight (grams)	370
Material	ABS Housing
Mount Style	2 Stud
Includes	washers and hex nuts
Product Condition	New
