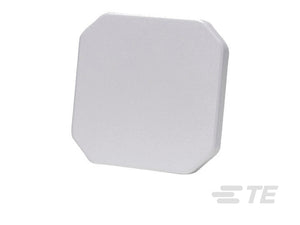

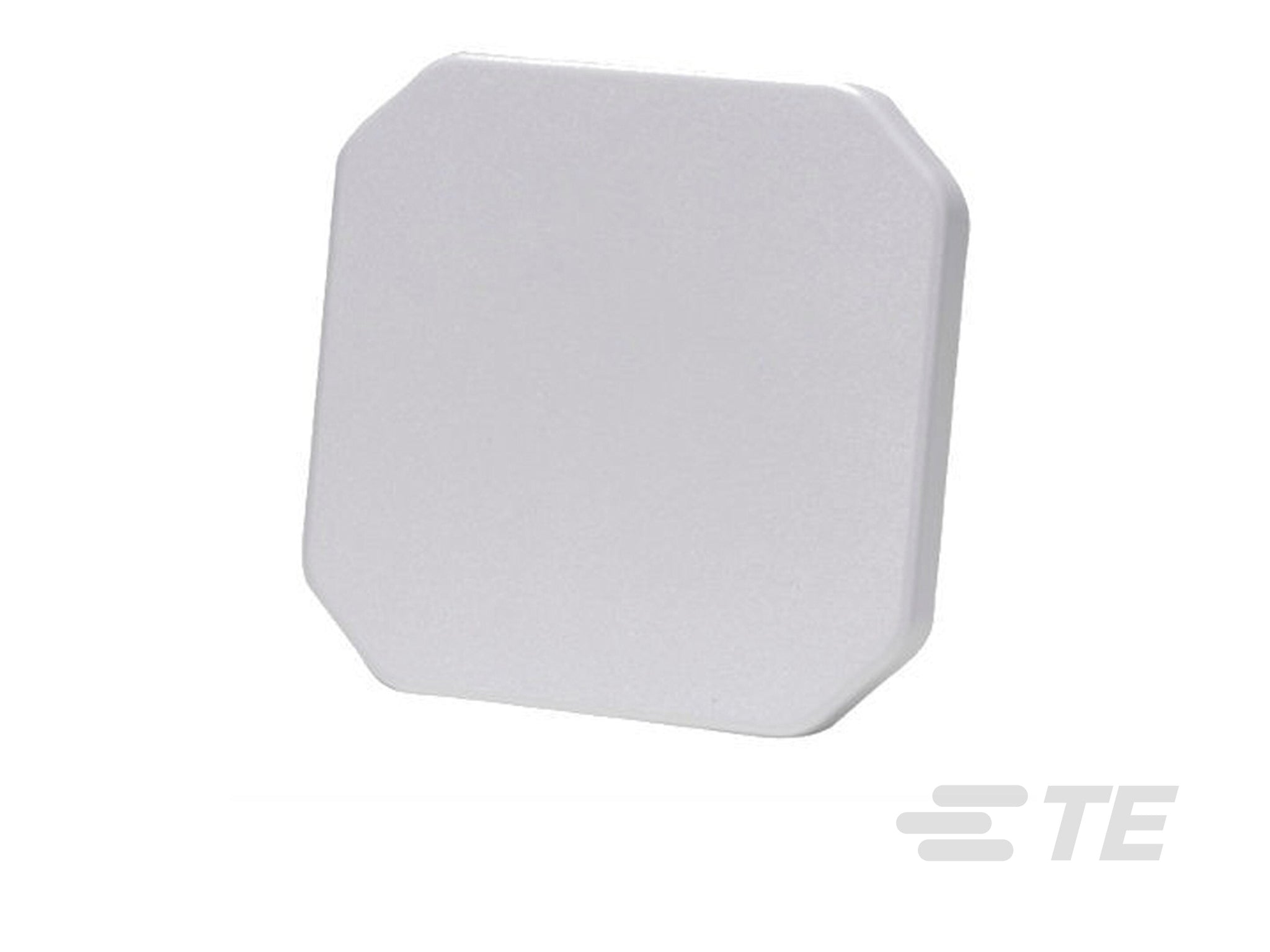

Zebra AN720-L51NF00WUS Equivalent RFID Antenna. Low profile 5x5 Inch | TE Connectivity S9025PLNF
S9025PLNF
Shipping calculated at checkout.
Zebra AN720-L51NF00WUS Equivalent RFID Antenna. Low profile 5x5 Inch | TE Connectivity S9025PLNF
More InfoDocumentsSpecifications Reviews- Equivalent to Zebra RFID antenna AN720-L51NF00WUS
- NOTE: This antenna is for FCC 902-928 Mhz ONLY
- Plastic Mounting Bracket - SOLD SEPARATELY. Click Here.
- 5x5 inches. LHCP. N-Female. 5.5 dBic gain. 105 deg. beamwidth
- Tested with Zebra RFID readers FX9600, FX7500, FXR90
- Tested with Impinj RFID readers R720, R420, R700, R220
- Volume discounts for RFID System Integrators
*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.
More Information
Specifications
| SKU | S9025PLNF |
|---|---|
| Manufacturer Part Number | S9025PLNF |
| Manufacturer | TE Connectivity |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 67 |
| Polarity | Left Hand Circular |
| Gain | 5.5 |
| Horizontal/Azimuth Beamwidth | 100 |
| Vertical/Elevation Beamwidth | 100 |
| Connector Type | Connector - Rear |
| Connector 1 | N-Female |
| Height/Length (inches) | 5.2 |
| Height/Length (mm) | 133 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 0.71 |
| Thickness/Diameter (mm) | 18 |
| Width (inches) | 5.2 |
| Width (mm) | 133 |
| Weight (lbs) | 0.8 |
| Weight (grams) | 370 |
| Material | ABS Housing |
| Mount Style | 2 Stud |
| Includes | washers and hex nuts |
| Product Condition | New |
