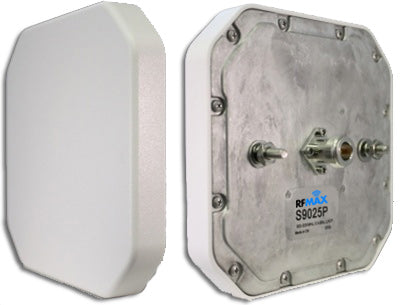

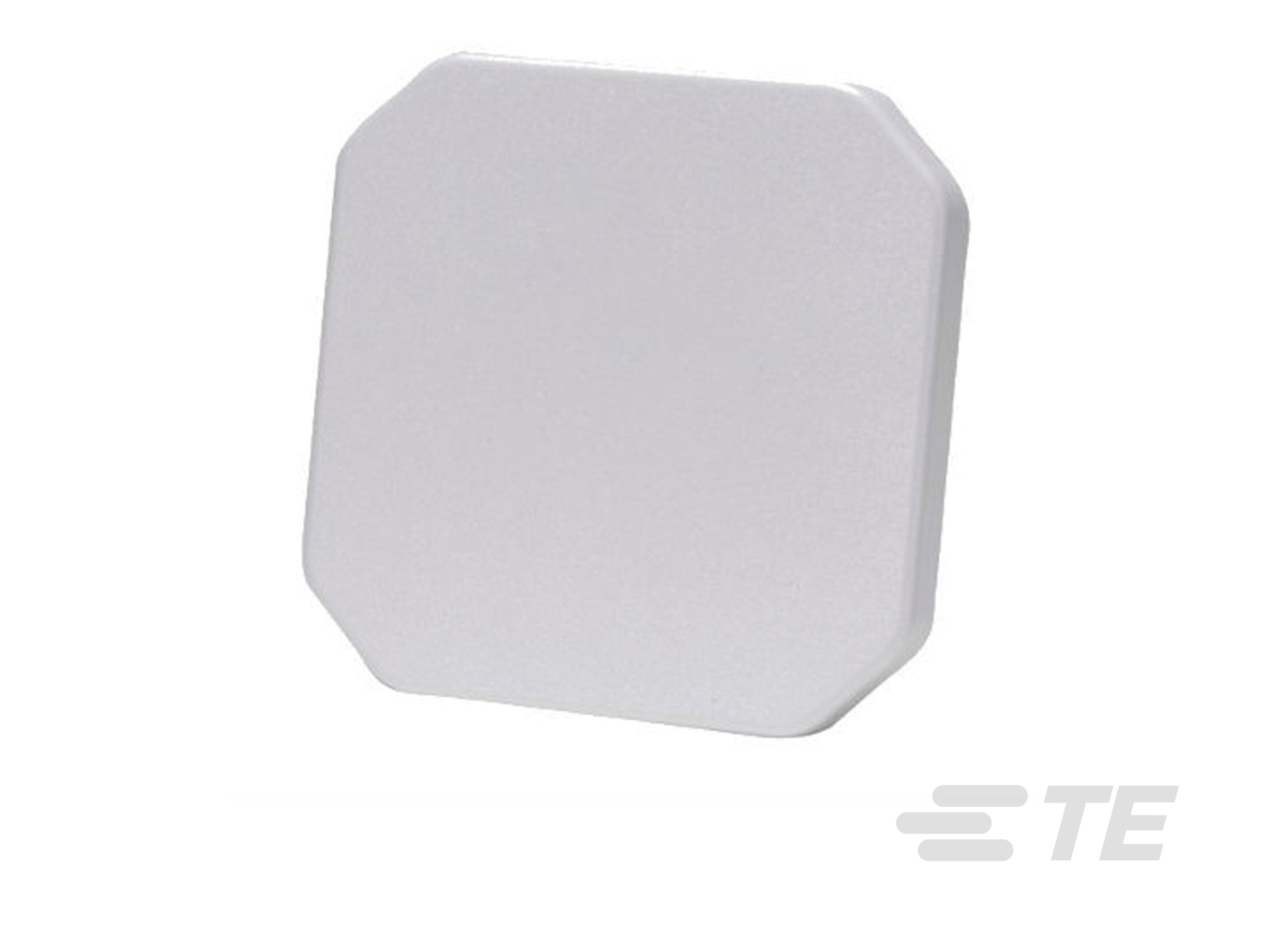

S9025PLSMF 5x5 inch LHCP IP-67 Rated Ultra Rugged RFID Antenna - SMA Female

  • $139.00
    Unit price per

S9025PLSMF


150 Can ship immediately
Factory lead time:  Ships in 12-14 Weeks

S9025PLSMF 5x5 inch LHCP IP-67 Rated Ultra Rugged RFID Antenna - SMA Female

More InfoDocumentsSpecifications Reviews

The S9025PLSMF is a ultra-rugged IP67 rated Left Hand Circularly Polarized RFID Antenna. This antenna operates in the FCC 902-928 Mhz range and offers 5 dBic gain. Size 5 x 5 inch with fixed SMA-Female Connector.

*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.



More Information

Circularly Polarized RFID Antenna, 902-928 Mhz, 5 dBic, 5 x 5 inch with a fixed SMA Female connector.

The RFMAX S9025PLNF antenna is the only UHF RFID antenna that offers this kind of no-compromise performance in such a small package. The antenna is housed in a 5" x 5" ultra-rugged, IP67 rated radome and features solid state construction for use in the most demanding environments.

Features:

• Small size - only 5.2” x 5.2"
• IP67 rated for outdoor use
• Solid state antenna element
• Designed to withstand shock and vibration
• Low profile
• Extremely low VSWR and axial ratio
• Circular Polarity


Documents


Specifications

SKU S9025PLSMF
Manufacturer Part Number S9025PLSMF
Manufacturer RFMAX
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating 67
Polarity Left Hand Circular
Gain 5.5
Horizontal/Azimuth Beamwidth 100
Vertical/Elevation Beamwidth 100
Connector Type Connector - Rear
Connector 1 SMA-Female
Height/Length (inches) 5.2
Height/Length (mm) 133
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 0.71
Thickness/Diameter (mm) 18
Width (inches) 5.2
Width (mm) 133
Weight (lbs) 0.8
Weight (grams) 370
Material ABS Housing
Color White
Mount Style 2 Stud
Includes washers and hex nuts
