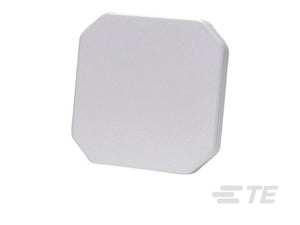

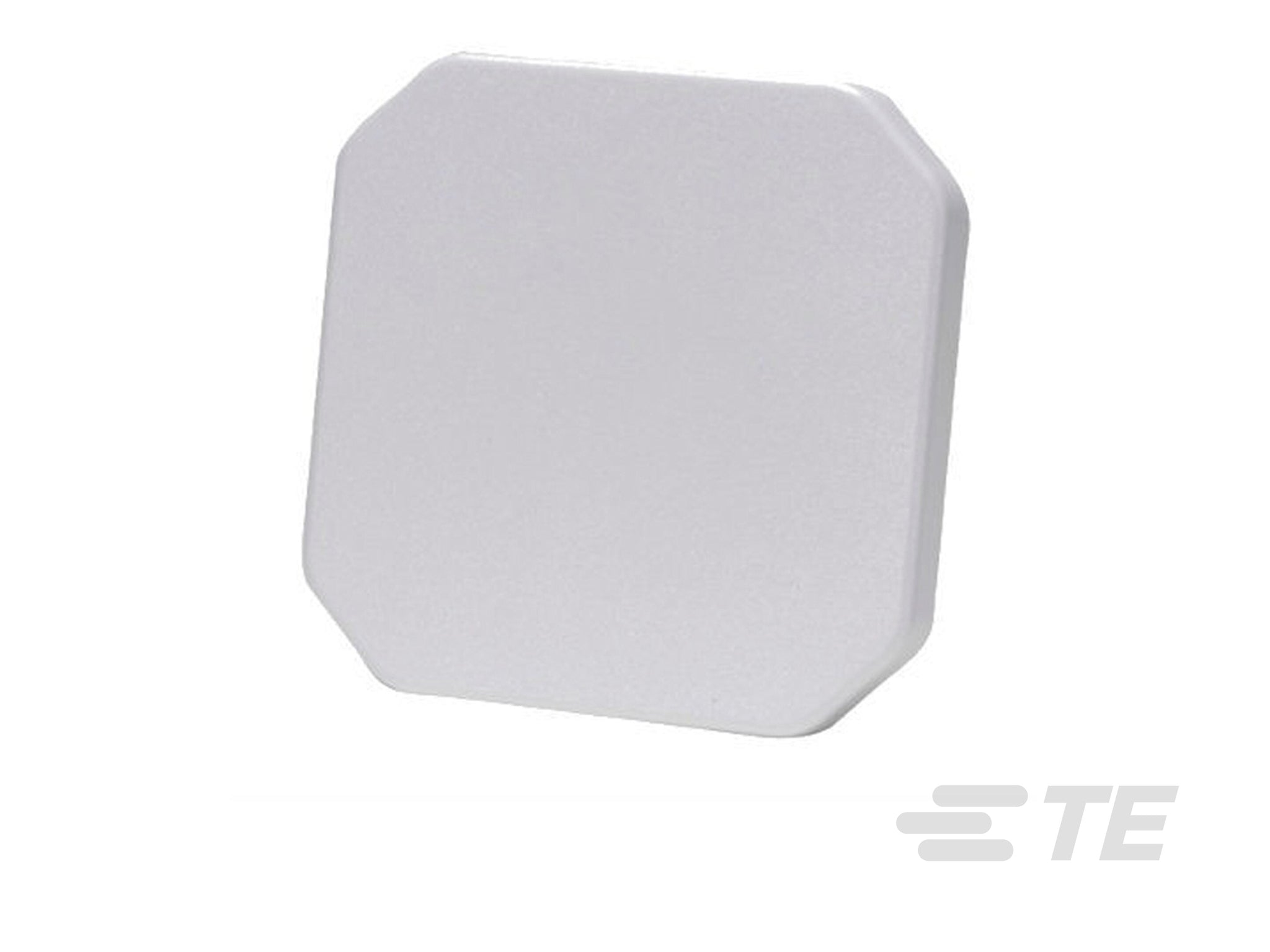

S8655PRNF: END OF LIFE. 5x5 Inch Right Hand Circular Polarity RFID Panel Antenna - N Female Connector
S8655PRNF
Shipping calculated at checkout.
S8655PRNF: END OF LIFE. 5x5 Inch Right Hand Circular Polarity RFID Panel Antenna - N Female Connector
More InfoDocumentsSpecifications ReviewsThis part is EOL – End of Life
For immediate requirements, try S8655PL-RASF (This antenna is EOL and NOT recommended for new designs, but may be in stock)
For new designs, use R8655-LPF-SSF
The TE Connectivity S8655PRNF is the latest addition to the TE Connectivity RFID antenna lineup, and offers no- compromise performance in a compact and rugged package. This 5x5 inch antenna has a fixed right angle SMA female connector.
More Information
Specifications
| SKU | S8655PRNF |
|---|---|
| Manufacturer Part Number | S8655PRNF |
| Manufacturer | TE Connectivity |
| Working Frequency | 865-868 MHz |
| Antenna Category | RFID (865-928 MHz) |
| IP Rating | IP67 |
| Polarity | Right Hand Circular |
| Gain | 5.5 |
| Horizontal/Azimuth Beamwidth | 100 degree |
| Vertical/Elevation Beamwidth | 100 degree |
| Connector Type | Connector - Rear |
| Connector 1 | N-Female |
| Height/Length (inches) | 5.2 |
| Height/Length (mm) | 132.08 |
| Operating Temp (celsius) | (-30) to 70 |
| Thickness/Diameter (inches) | 0.71 |
| Thickness/Diameter (mm) | 18 |
| Width (inches) | 5.2 |
| Width (mm) | 132 |
| Weight (lbs) | 0.8 |
| Weight (grams) | 364 |
| Material | Polycarbonate |
| Mount Style | Threaded Stud 2x #10-32 |
| Product Condition | New |
