R8655-LPF-SSF (ETSI): SlimLine Circular Polarized UHF RFID Antenna 865-868 MHz
R8655-LPF-SSF
R8655-LPF-SSF (ETSI): SlimLine Circular Polarized UHF RFID Antenna 865-868 MHz
More InfoSpecifications ReviewsEquipped with the familiar and industry leading RFMAX ultra-low profile, the R8655-LPF-SSF offers a compact footprint of only 150 mm / 5.9 inch square in a very smart-looking design. With a 1.5 ft. wider read range than most other antennas of similar size in the market, the circularly polarized R8655-LPF-SSF antenna creates a new benchmark for multi-purpose UHF RFID antennas. IP68 rated and built to RFMAX’s high standard for quality and robustness, the R8655-LPF-SSF can be used for permanent outdoor applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors, which makes the R8655-LPF-SSF very suitable for customer facing environments.

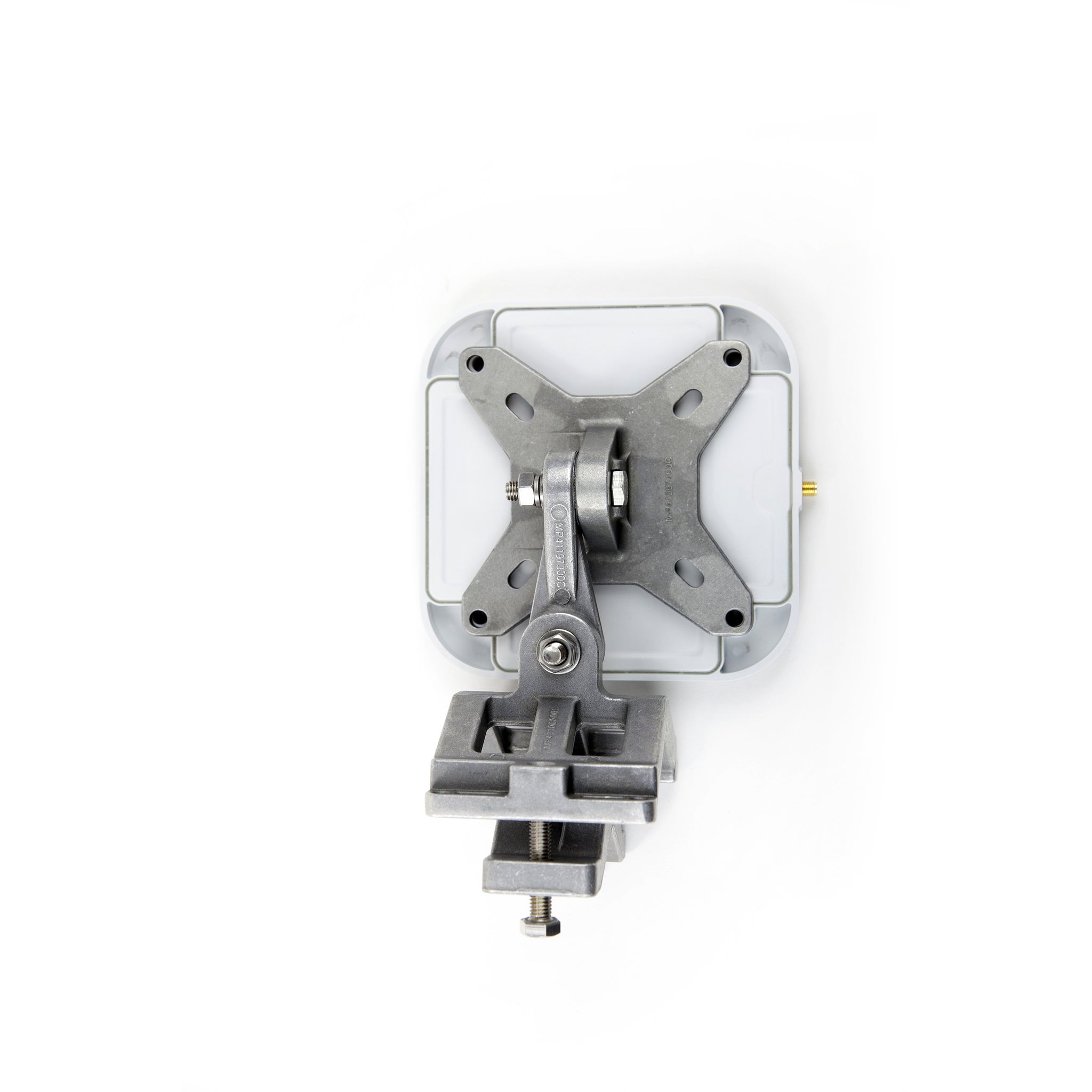

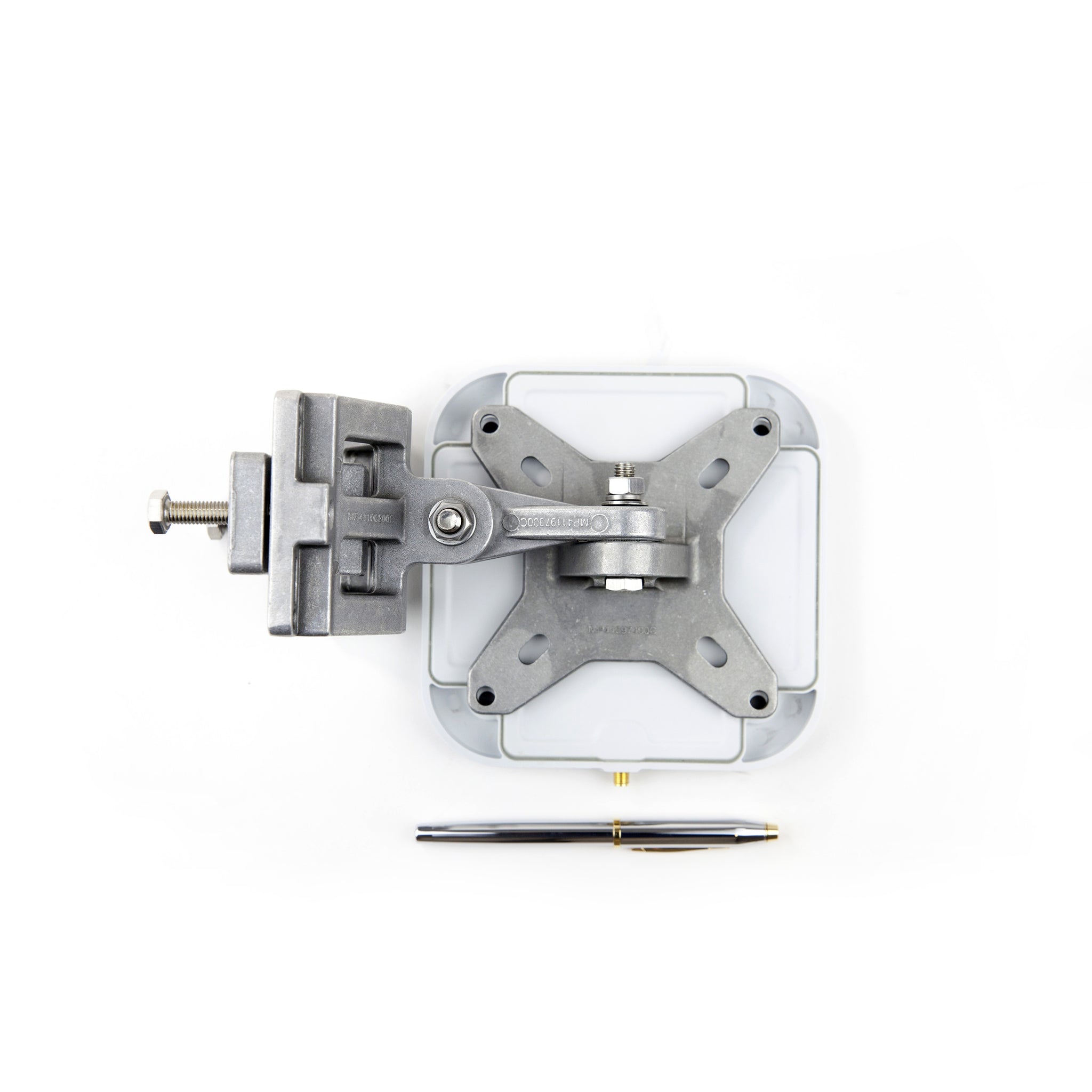

The appropriate mounting solution for this antenna is RFMAX part # HDMNT-100MM
More Information
Equipped with the familiar and industry leading RFMAX ultra-low profile, the R8655-LPF-SSF offers a compact footprint of only 150 mm / 5.9 inch square in a very smart-looking design. With a 1.5 ft. wider read range than most other antennas of similar size in the market, the circularly polarized R8655-LPF-SSF antenna creates a new benchmark for multi-purpose UHF RFID antennas. IP68 rated and built to RFMAX ’s high standard for quality and robustness, the R8655-LPF-SSF can be used for permanent outdoor applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors, which makes the R8655-LPF-SSF very suitable for customer facing environments. The appropriate mounting solution for this antenna is RFMAX part # HDMNT-100MM
Kiosks and Point of Sale
The R8655-LPF-SSF antenna’s RF radiation can be confined in a zone while operating at low power. This is practically achievable due to its low gain nature. The antenna is best suited for kiosks and POS applications where a confined read zone is a key requirement. The antenna is aesthetically appealing and fits into every POS environment.
Waste Management
The R8655-LPF-SSF is IP68 rated, meaning it is suitable for permanent outdoor installations. The ‘all-plastic’-housing prevents the antenna from corroding. The antenna is moderately impact resistant and can be water blasted. The ~100° beam-width of the R8655-LPF-SSF antenna makes wheelie bin detection easy and straight-forward. The antenna can be cleaned with cleaning agents and it would not be adversely affected. The physical size of the antenna is small and thus installation in waste management trucks is hassle free.
Retail
The R8655-LPF-SSF can easily be deployed in space constrained environments such as retail. With its superb aesthetics and compact design, the R8655-LPF-SSF antenna blends well into the retail back drop.
Medical & Pharmaceutical
The R8655-LPF-SSF can operate at lowtemperature extremes. High-value pharmaceutical assets can be tracked in fridges and freezers using the R8655-LPF-SSF antenna. The slim design maximizes the usable space inside of a refrigerator. The antenna can handle general purpose cleaning agents and is water resistant. The white colored R8655-LPF-SSF antenna is suitable for hospitals, medical laboratories, research industries and pharma labs.
Specifications
SKU | R8655LPFSSF |
---|---|
Manufacturer Part Number | R8655-LPF-SSF |
Manufacturer | RFMAX |
Product Condition | New |
Antenna Category | RFID (865-928 MHz) |
Bands | Single |
IP Rating | IP68 |
Polarity | Right Hand Circular |
Gain | 5.5 dBiC |

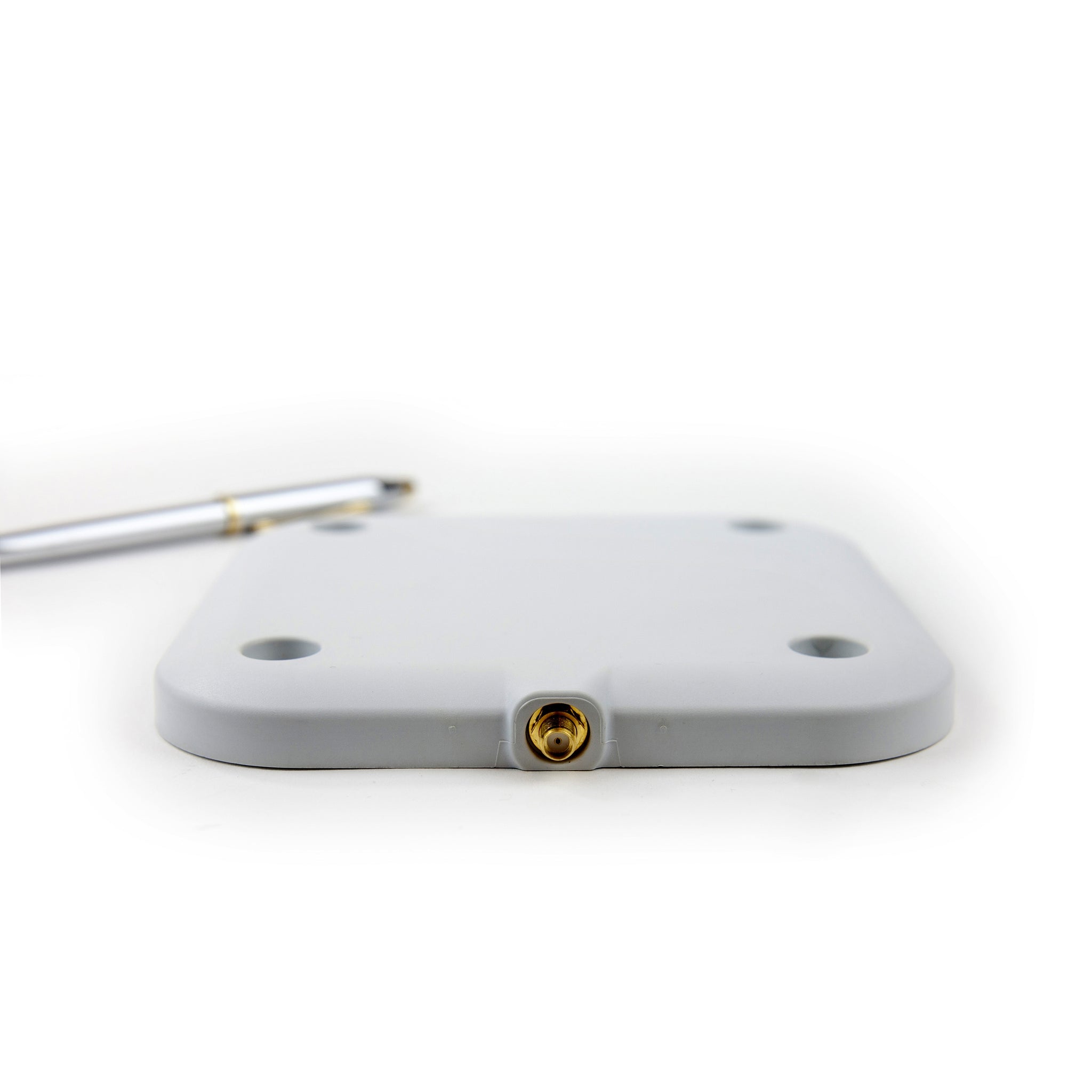

Connector 1 | SMA-Female |
Height/Length (inches) | 5.9 |
Height/Length (mm) | 150 |
Operating Temp (celsius) | -30° to +65°C |
Thickness/Diameter (inches) | 0.55 |
Thickness/Diameter (mm) | 14 |
Width (inches) | 5.9 |
Width (mm) | 150 |
Weight (lbs) | 0.55 lbs |
Material | UV-Resistant ABS |
Color | White |
Mount Style | Flush mount |
