RSK-698-SSM-3: Slim Blade Antenna for 698-2700 MHz 4G/LTE Modems/Gateways with 3 ft RG316 Coax & SMA

  • $20.00
    Unit price per

RSK-698-SSM-3


23 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
100 $12.00
250 $10.30
500 $9.60
1000 $9.23
Factory lead time:  Ships in 2-4 Weeks

RSK-698-SSM-3: Slim Blade Antenna for 698-2700 MHz 4G/LTE Modems/Gateways with 3 ft RG316 Coax & SMA

More InfoSpecifications Reviews

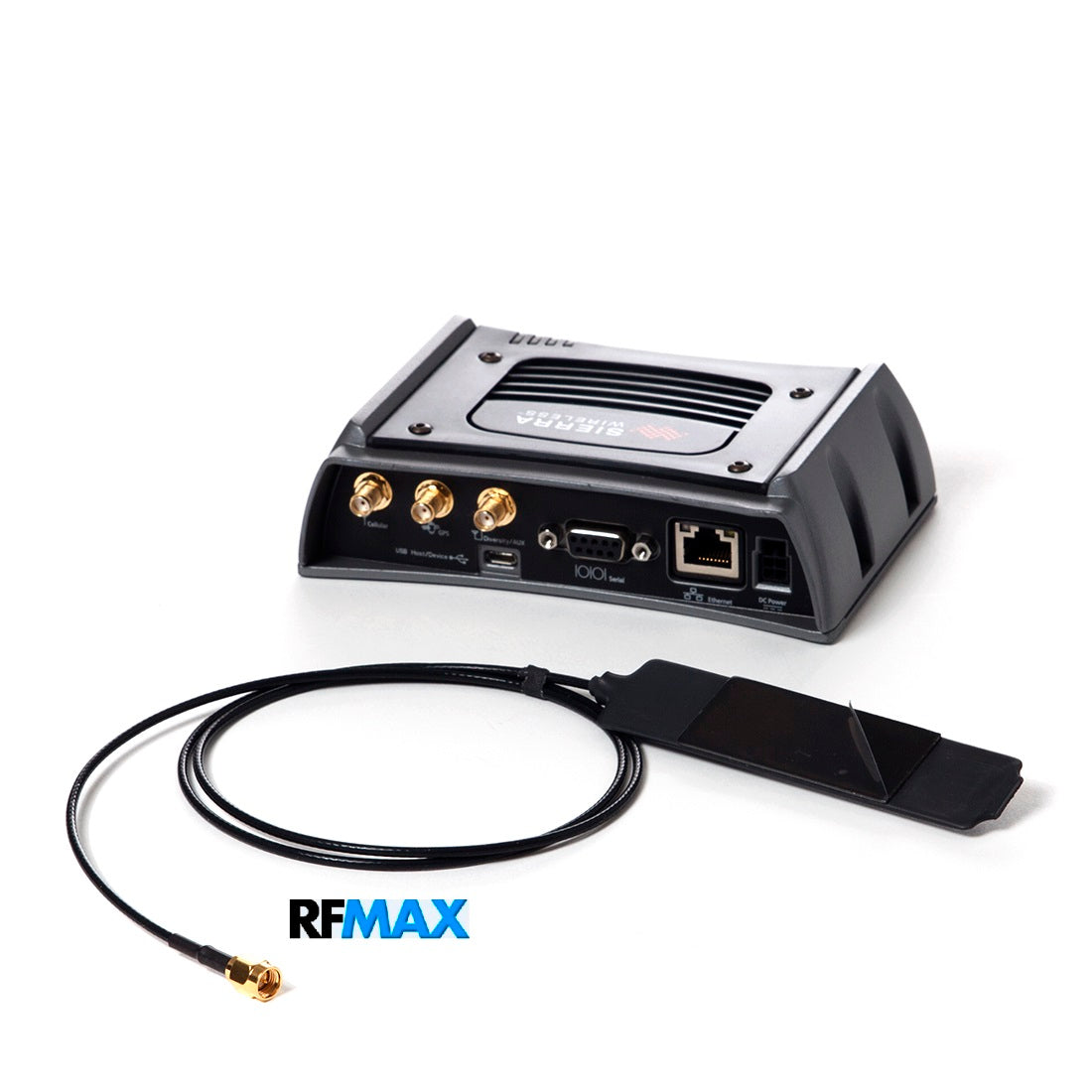

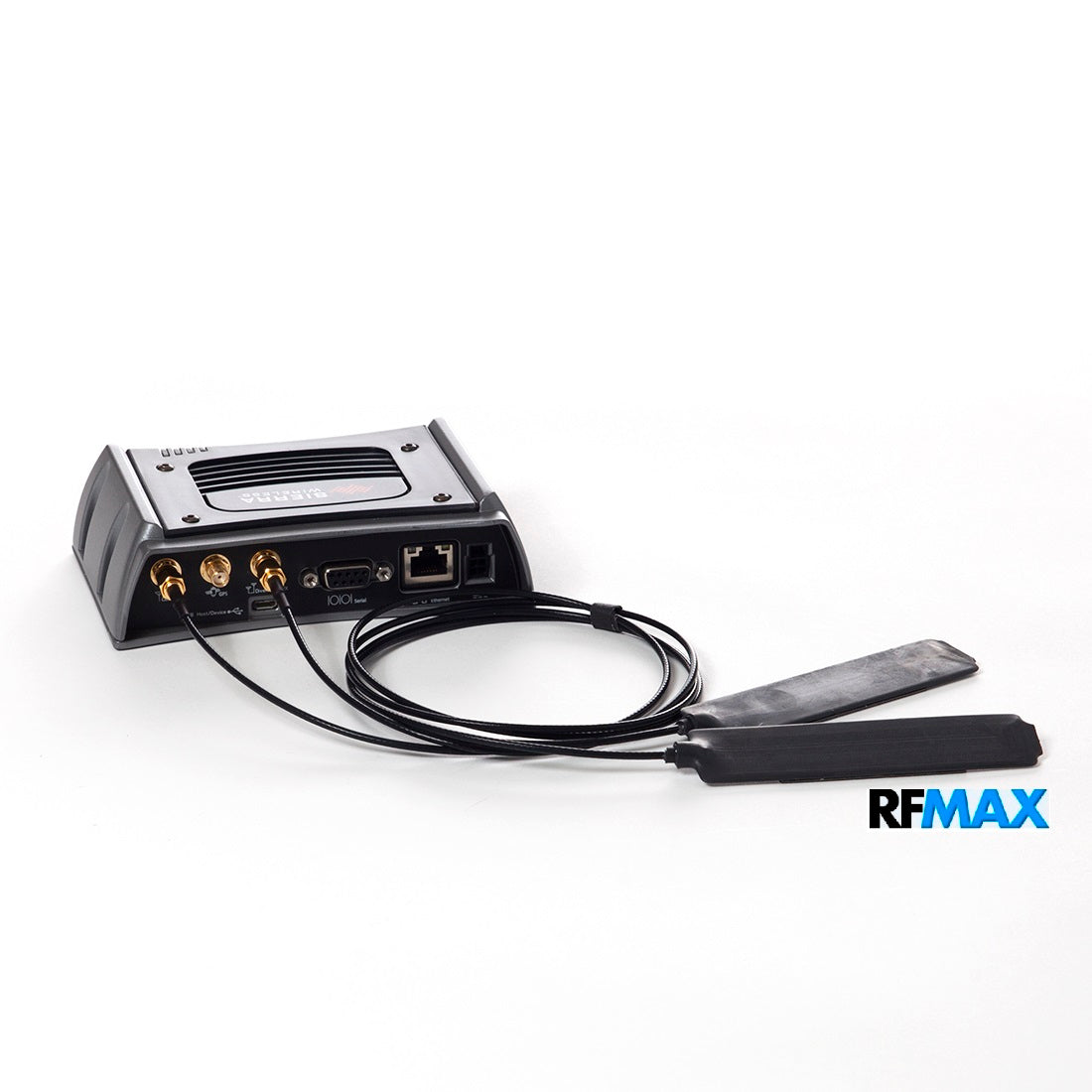

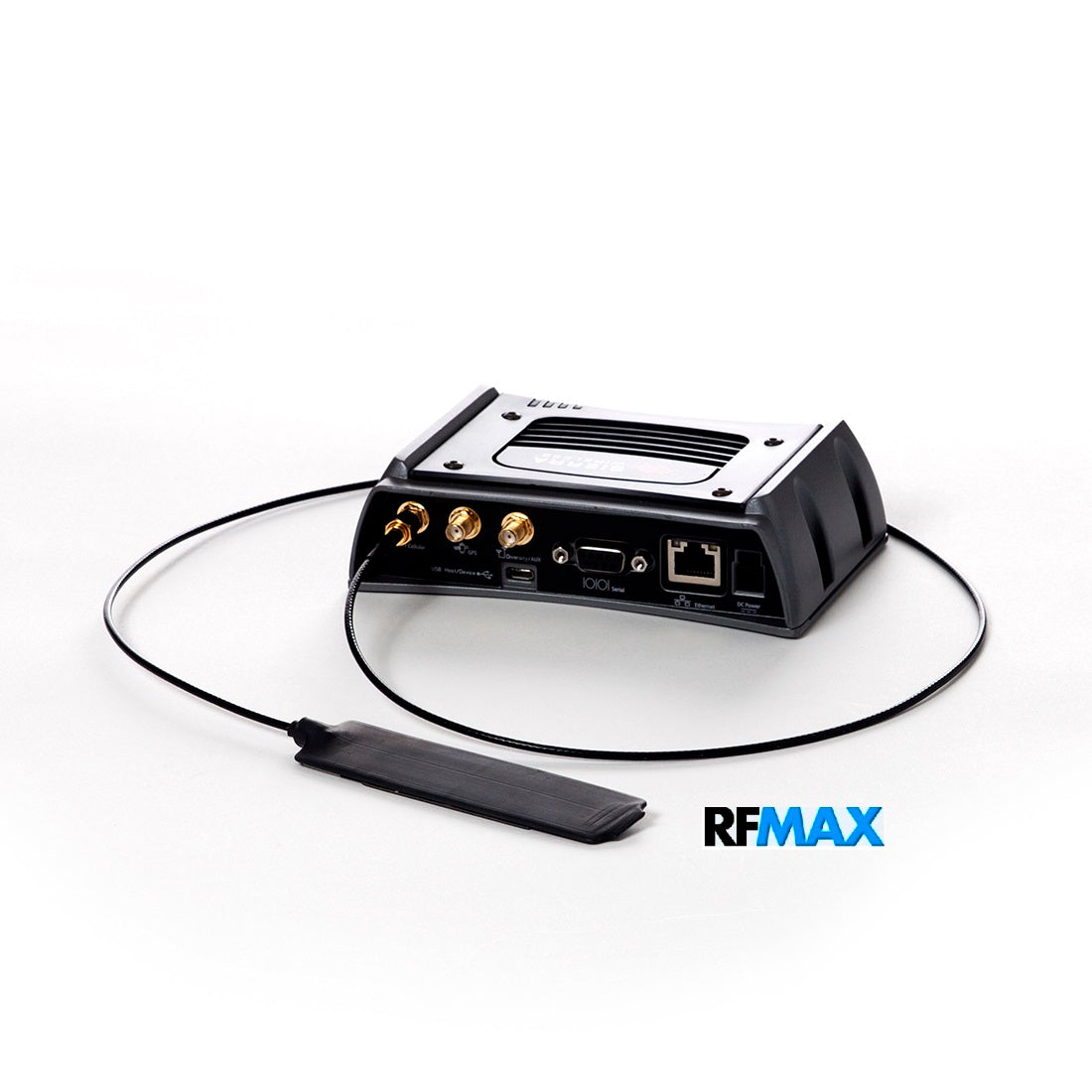

RSK-698-SSM-3: Slim Blade dashboard or windshield mounted covert antenna for 4G/LTE Cellular Modem & Gateways with 3 feet of RG 316 cable & SMA Male connector. No need to drill - easy mounting with adhesive tape (included.) Works with: Sierra Wireless Airlink & Cradlepoint COR IBR series



More Information

Features:

  • Cost-effective, high-performance solution for LTE
  • Slim, low- profile without sacrificing mechanical performance
  • Adhesive mount
  • Flexible board
  • IP-67 rating when installed to compliant surface
  • RoHS Compliant Product

Applications:

  • WLAN, LTE and 3G/4G applications
  • Public Safety
  • IoT - Vending/Smart Metering
  • Access Points
  • Vehicular (window, dashboard, visor)
  • Data transmission
  • Works with: Sierra Wireless Airlink & Cradlepoint COR IBR series

Specifications

SKU RSK698SSM3
Manufacturer Part Number RSK-698-SSM-3
Manufacturer RFMAX
Product Condition New
Antenna Category 3G/4G/LTE (698-2700 MHz)
Bands Multi
SISO or MIMO SISO
Frequency 1 698-960 MHz
Gain 1 2 dBi
Frequency 2 1710-2170 MHz
Gain 2 2 dBi
Frequency 3 2300-2700 MHz
Gain 3 2 dBi
Impedance 50 Ohm
Max Input Power (W) 3 Watts
VSWR: < X: 1 2.5:1
Horizontal/Azimuth Beamwidth 360 degree
Vertical/Elevation Beamwidth 40/70/55
Cable Length - PT195 3 Foot
Height/Length (inches) 4.16
Height/Length (mm) 105.7
Width (inches) 1.03
Width (mm) 26.16
Thickness/Diameter (inches) 0.082
Thickness/Diameter (mm) 2.08
Weight (lbs) 0.1
Weight (grams) 19
Operating Temp (celsius) -40 to +85
Mount Style Adhesive Tape
Color Black
Cable Type RG-316
IP Rating IP67
OK for Outdoor Use No
Vehicular Yes
Ground Plane Required No
