G44-HDMM: Heavy Duty Magnetic Roof Mount For G44 Series Vehicular Modem Antennas

  • $28.00
    Unit price per

G44-HDMM


2 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
100 $24.00
Factory lead time:  Ships in 2-4 Weeks

G44-HDMM: Heavy Duty Magnetic Roof Mount For G44 Series Vehicular Modem Antennas

More InfoSpecifications Reviews

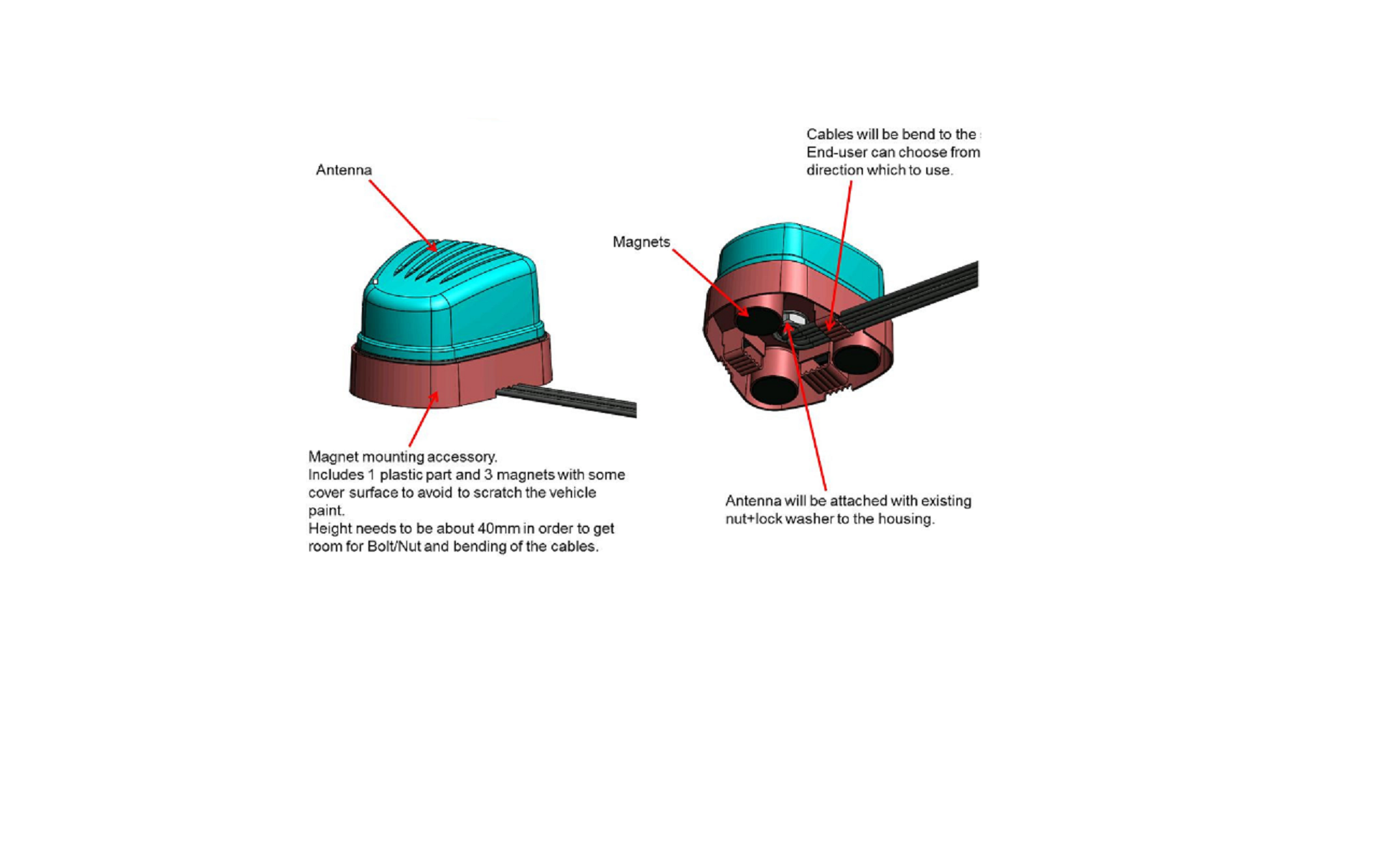

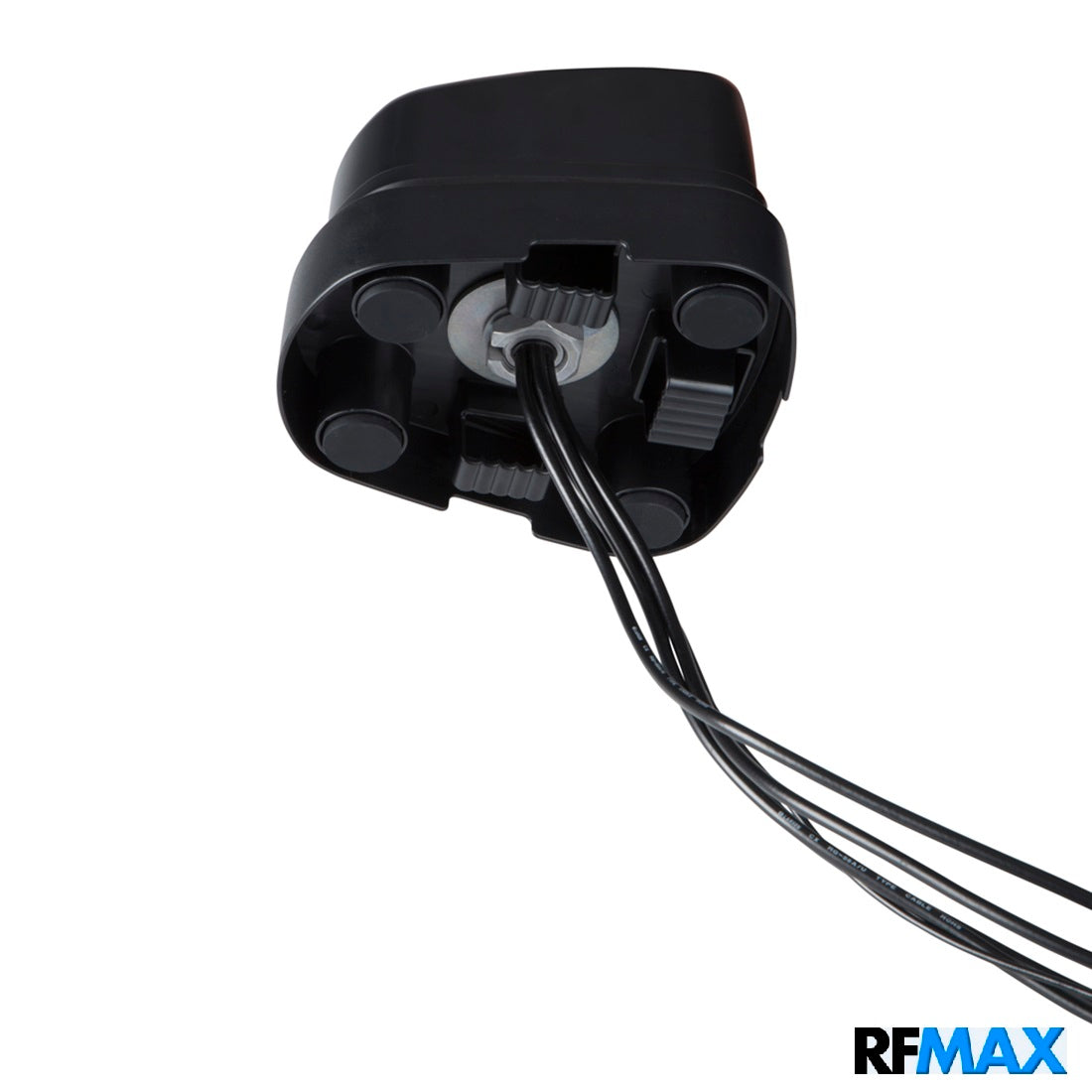

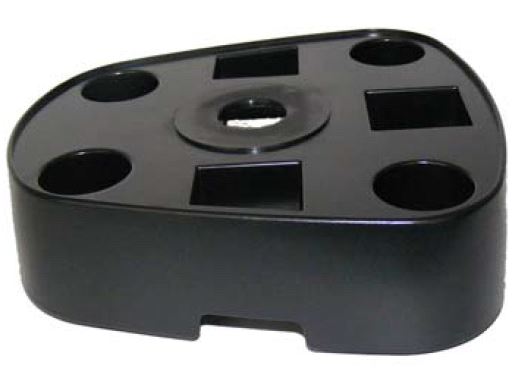

The RFMAX G44-HDMM vehicular magnetc mount adapter is the ideal magnetic mount accessory to be used in conjunction with the RFMAX G44 series of 3-in-1 & 5-in-1 LTE modem Antennas. This unit is made of heavy duty, black, polycarbonate, weighs only 0.6 lbs, and can be used on a vehical roof or other metal devices without damaging the surface.

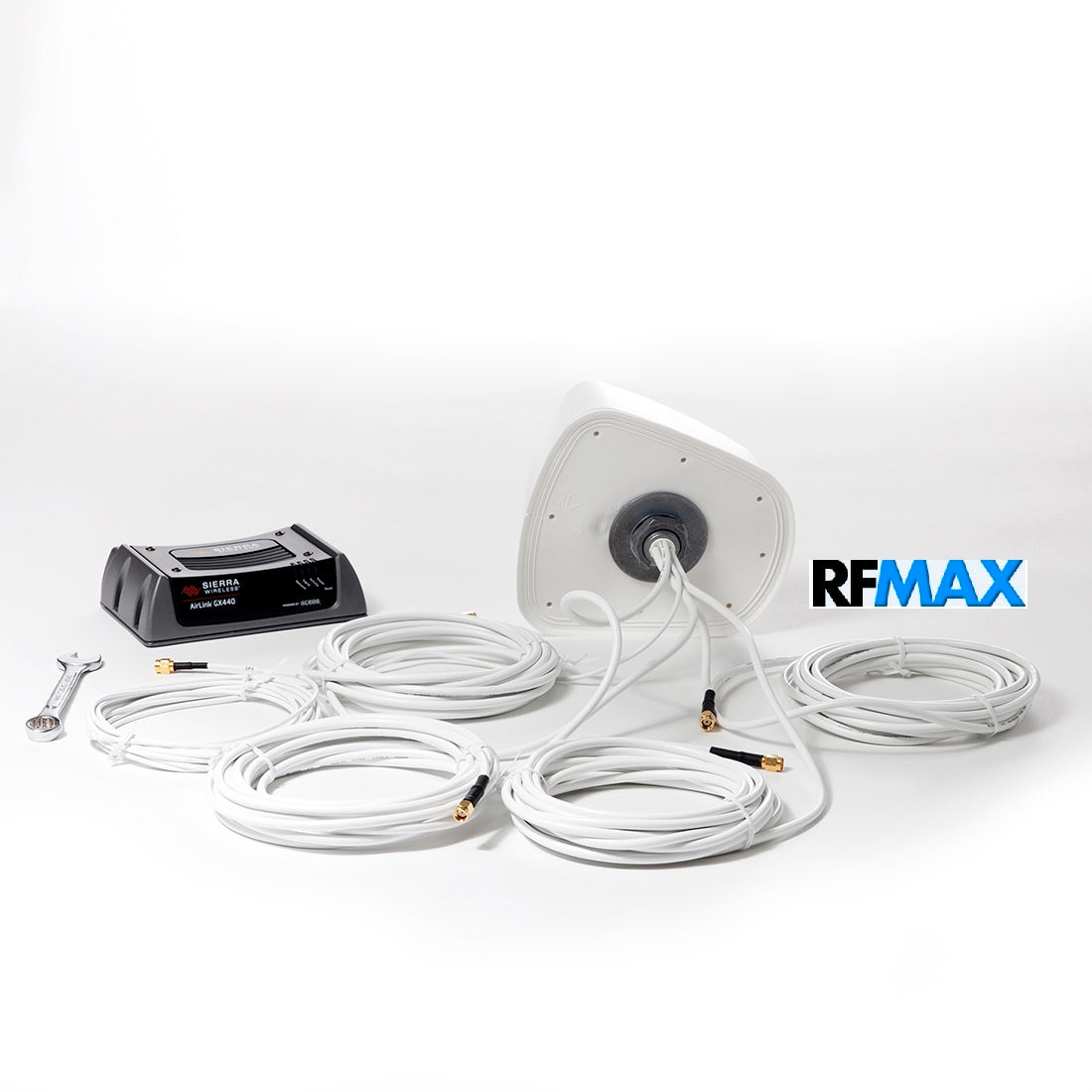

This mag-mount is typically paired with RFMAX antennas that are used with Sierra Wireless Airlink: GX400, GX440, GX450 or Cradlepoint IBR900, IBR950, IBR1100 & IBR1150 modems.



More Information

The RFMAX G44-HDMM vehicular magnetc mount adapter s the ideal magnetic mount accessory to be used in conjunction with our G44 series of 3-in-1 & 5-in-1 Antennas. This unit is made of heavy duty, black, polycarbonate, weighs only 0.6 lbs, and can be used on a vehical roof or other metal devices without damaging the surface.


Features
• Robust Removable Magnetic Mount Accessory
• Pull Strengh: 18 lbs.-side pull & 13.5 lbs. pull-off
• Detachable with a strong magnetic connection
• Robust housing - Outdoor UV stabilized
Applications
• Perfect for use on vehicular applications where a permanent mount is not desirable
• Can be used on various metal surfaces
• Detachable, non-€permanent mount


Specifications

SKU G44HDMM
Manufacturer Part Number G44-HDMM
Manufacturer RFMAX
Product Condition New

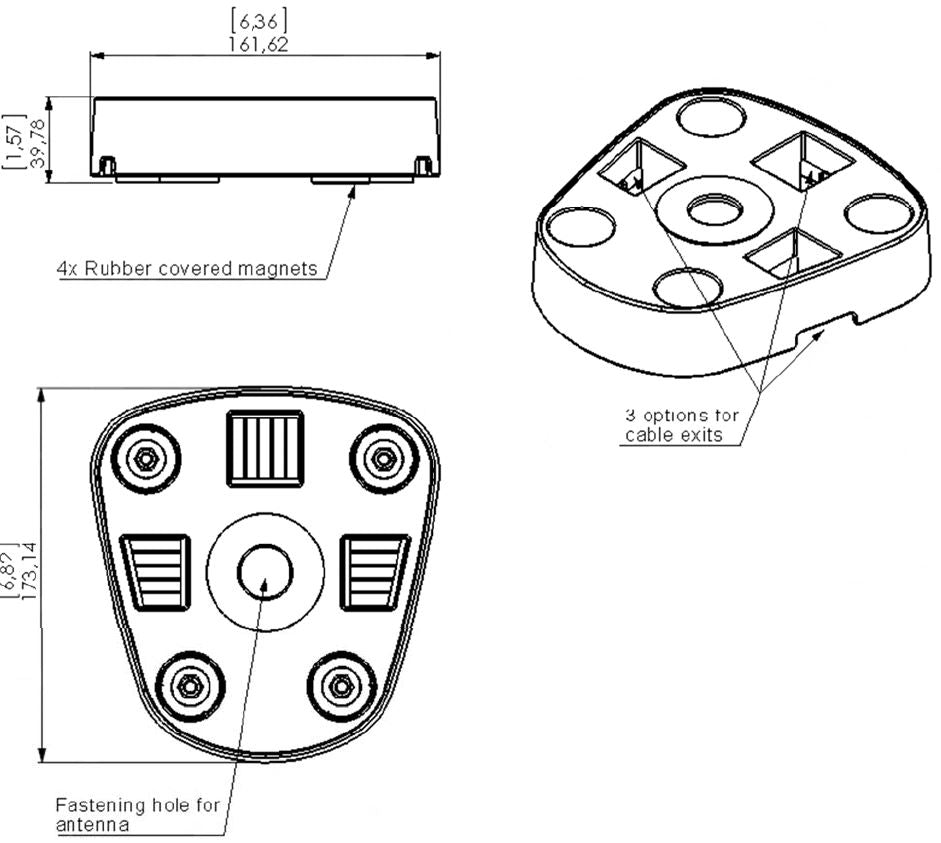

Mount Style Through hole / direct roof mount (7/8" hole)
Height/Length (inches) 6.8
Height/Length (mm) 173
Width (inches) 6.4
Width (mm) 162
Thickness/Diameter (inches) 1.57
Thickness/Diameter (mm) 40
Weight (lbs) 1
Weight (grams) 260
Used for High Frequency (900 MHz +) Yes
Color Black
Vehicular Yes
OK for Outdoor Use Yes
