RFID Thin Wall Portal FLEXANTENNA for In-Building Choke Points |RPOR-TH-865/902-8L-RTF. SLS D-100

RPOR-TH-865/902-8L-RTF
10 Can ship immediately
Lead time for qty above 10:  Ships in 2-4 Weeks
Shipping calculated at checkout.
RFID Thin Wall Portal FLEXANTENNA for In-Building Choke Points |RPOR-TH-865/902-8L-RTF. SLS D-100
RFID Thin Wall Portal FLEXANTENNA for In-Building Choke Points |RPOR-TH-865/902-8L-RTF. SLS D-100

RFID Thin Wall Portal FLEXANTENNA for In-Building Choke Points |RPOR-TH-865/902-8L-RTF. SLS D-100

More InfoDocumentsSpecifications Reviews

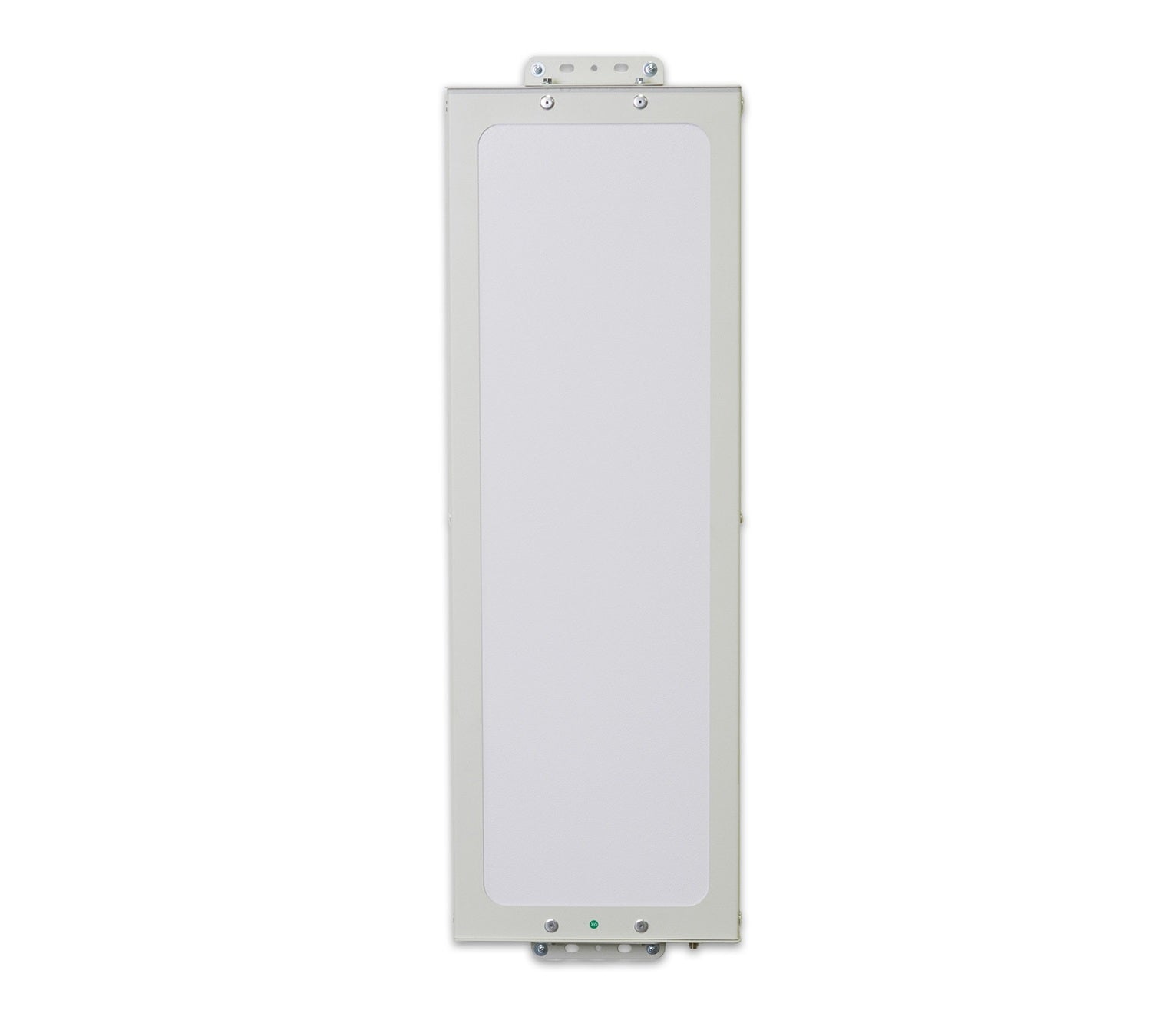

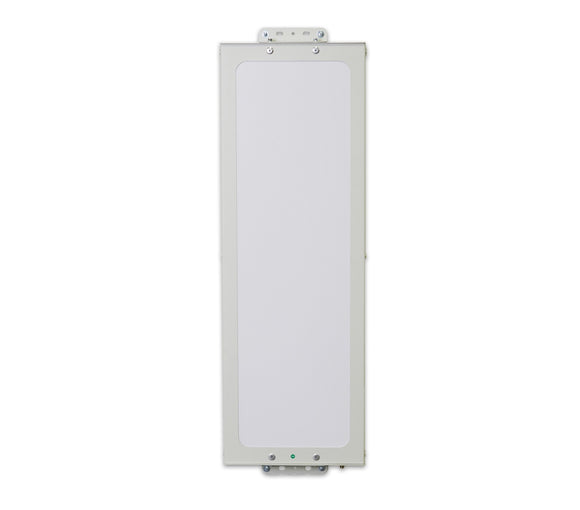

The RFMAX RPOR-TH-865/902-8L-RTF is a highly versatile multi-linear RFID "thin" wall portal FLEXANTENNA designed to offer superior tag read performance across all tag orientations. With a slim profile, Less than 2" Thick, 12.8" Wide and 38" Tall, the RPOR-TH-865/902-8L-RTF is designed for flexibility, and allows for seamless installation in tight spaces.

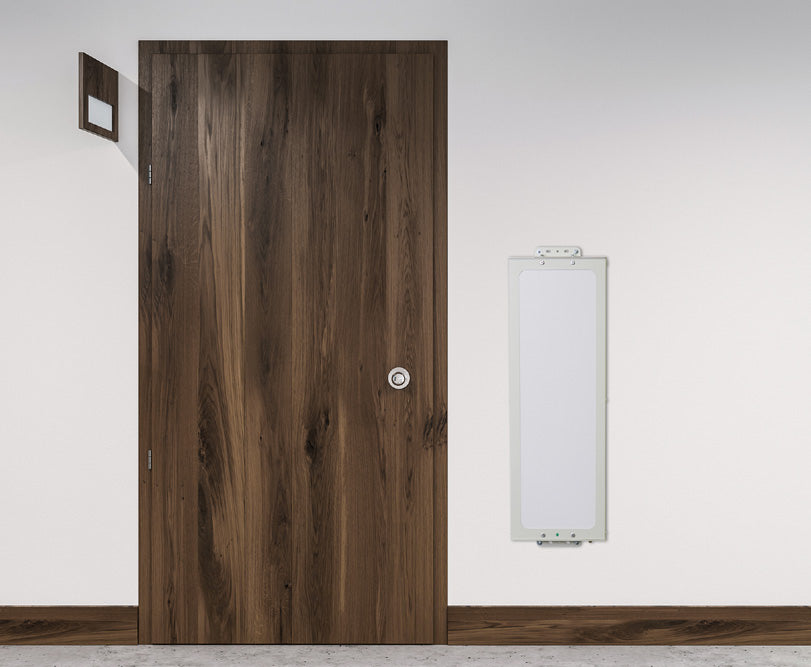

Mounted flush on walls or above doorways and workstations, mounted within conveyor tunnels, this versatility is an ideal solution for various environments, from Hospitals, Hotels and Hospitality to Retail, without compromising functionality.   This unit is a great alternative to the SLS D-100 model, yet only utilizes ONE port - not TWO.

*This unit requires separate mounting hardware and cables.

More Information

  • Focused Multi-Linear Beams - Captures All Tag Orientations
  • FCC 902-928 MHz and ETSI 865-868 MHz Band Coverage
  • Flush Wall Mount or U-Bolt Pole Mount Available (sold seperately)
  • Strong Near-Field Performance and Tightly Controlled READ ZONE
  • Thin & lightweight means low-cost shipping and easy installation
  • RPTNC-Female Edge Connector (cable not included)

Documents

Datasheet

We Also Recommend

High-performance, Circularly Polarized, White Flush Mount RFID antenna. 902-928 MHz |R902-11-W-F-SSF
In Stock
R902-11-W-F-SSF
High-performance, Circularly Polarized, White Flush Mount RFID antenna. 902-928 MHz |R902-11-W-F-SSF
View Details
PTW240-005-RTM-RTM: 5 Feet 240 White Type Low loss Cable Assembly with Reverse Polarity TNC-Male and Reverse Polarity TNC-Male Connectors
In Stock
PTW240-005-RTM-RTM
PTW240-005-RTM-RTM: 5 Feet 240 White Type Low loss Cable Assembly with Reverse Polarity TNC-Male and Reverse Polarity TNC-Male Connectors
View Details
240 Type Cable, White - RPTNC-Male to RPTNC-Male - 15 Feet | PTW240-015-RTM-RTM
In Stock
PTW240-015-RTM-RTM
240 Type Cable, White - RPTNC-Male to RPTNC-Male - 15 Feet | PTW240-015-RTM-RTM
View Details

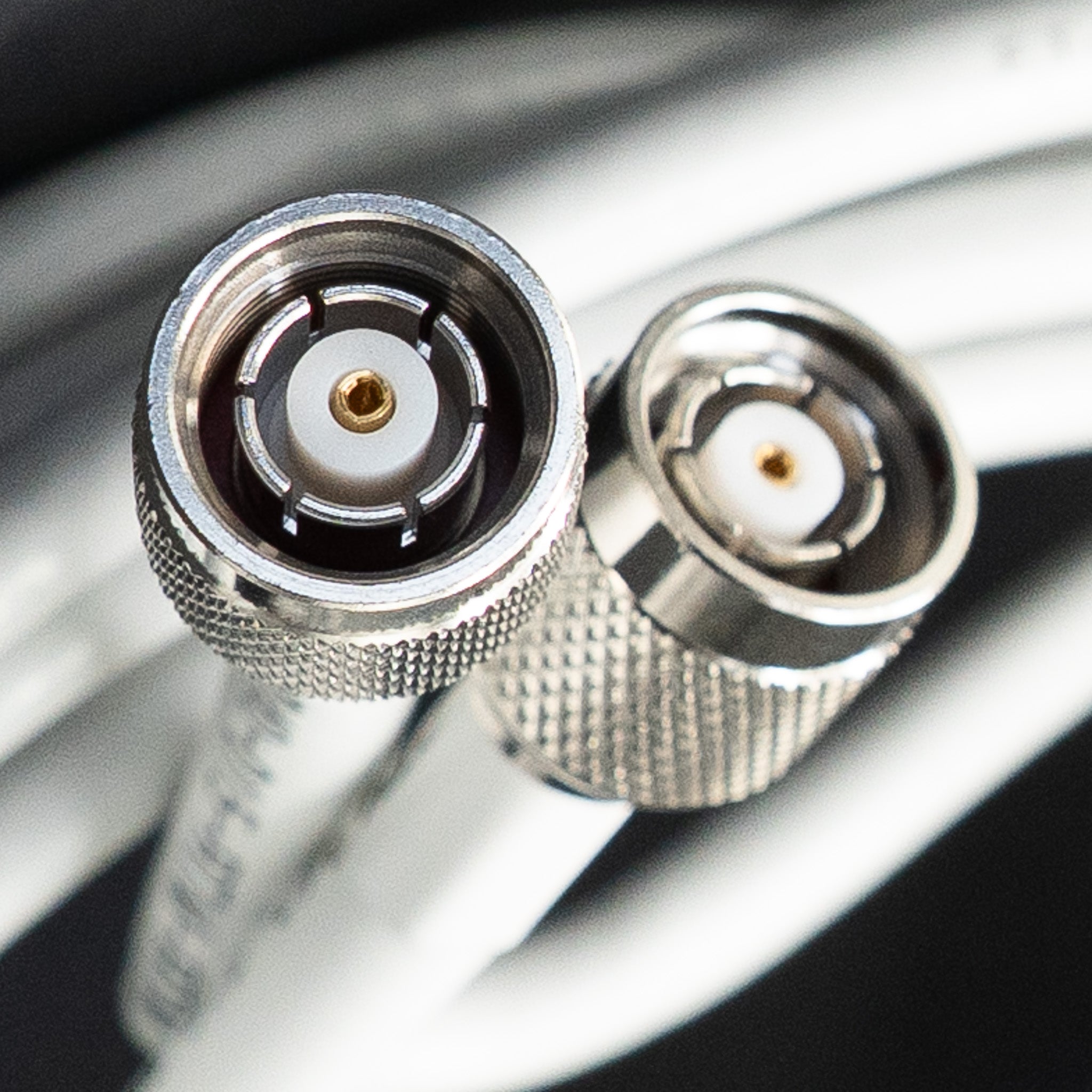

PTW240-025-RTM-RTM: 25 Feet 240 White Type Low loss Cable Assembly with Reverse Polarity TNC-Male and Reverse Polarity TNC-Male Connectors
In Stock
PTW240-025-RTM-RTM
PTW240-025-RTM-RTM: 25 Feet 240 White Type Low loss Cable Assembly with Reverse Polarity TNC-Male and Reverse Polarity TNC-Male Connectors
View Details

Specifications

SKU 50001011
Manufacturer Part Number RPOR-TH-865/902-8L-RTF
Manufacturer RFMAX
Working Frequency 902-928 MHz
Antenna Category RFID (865-928 MHz)
Polarity Multilinear
Connector 1 RP-TNC Female (on bottom edge)
Height/Length (inches) 38
Height/Length (mm) 965.2
Operating Temp (celsius) -20ºC to 60ºC (-4ºF to + 140ºF)
Thickness/Diameter (inches) 1.94
Thickness/Diameter (mm) 49.27
Width (inches) 12.8
Width (mm) 325.12
Weight (lbs) 24
Material Flame Retardant ABS
Color White
Mount Style Flush Mount
Product Condition New
