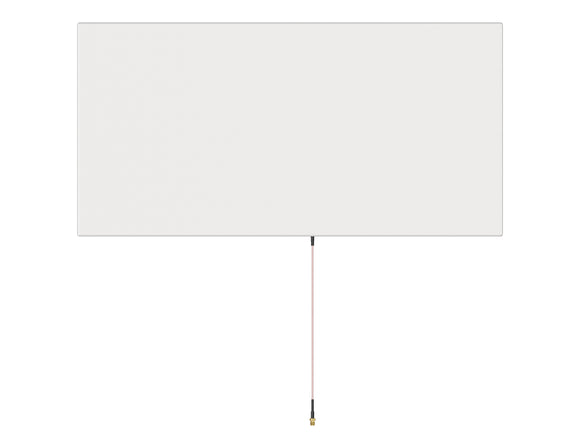

High-performance, Circularly Polarized, White Flush Mount RFID antenna. 902-928 MHz |R902-11-W-F-SSF
R902-11-W-F-SSF
High-performance, Circularly Polarized, White Flush Mount RFID antenna. 902-928 MHz |R902-11-W-F-SSF
More InfoDocumentsSpecifications ReviewsThe RFMAX R902-11-W-F-SSF is a high-performance, circularly polarized RFID antenna designed for superior read accuracy in demanding environments. Operating within the FCC 902-928 MHz frequency range, this antenna delivers a powerful 10.5 dBiC gain, ensuring extended read ranges of up to 10 meters (33 feet). Its multi-element array minimizes signal distortion, making it ideal for industrial portals, warehouse tracking, and other high-density RFID applications. This antenna has a formed radome.
More Information
The RFMAX R902-11-x-F-SSF is a high-performance, circularly polarized RFID antenna designed for superior read accuracy in demanding environments. Operating within the FCC 902-928 MHz frequency range, this antenna delivers a powerful 10.5 dBiC gain, ensuring extended read ranges of up to 10 meters (33 feet). Its multi-element array minimizes signal distortion, making it ideal for industrial portals, warehouse tracking, and other high-density RFID applications.
Built for for versatility, the R902-11-x-F-SSF features a sleek, low-profile design measuring 604 x 304 x 8.6mm (23.78 x 11.97 x 0.34”), allowing seamless integration into various installations. It can be flush-mounted using six pre-drilled holes or attached via a VESA-compatible mounting plate for additional flexibility. Its rugged, flame-retardant ABS radome construction and IP54 environmental rating ensure reliable performance in harsh conditions.
- UHF RFID: 902-928 MHz
- 25° Beamwidth in XZ plane, 60° in YZ plane
- 10.5 dBic Gain
- Easy installation, Integrated Flush Mounting Holes
- 10.5” Flying Lead with SMA Female Connector
- Available in Black and White
- R902-11-B-F-SSF - Black Radome
- R902-11-W-F-SSF - White Radome
Documents
We Also Recommend
Specifications
| SKU | R90211WFSSF |
|---|---|
| Manufacturer Part Number | R902-11-W-F-SSF |
| Manufacturer | RFMAX |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| IP Rating | IP54 |
| Polarity | Circular |
| Horizontal/Azimuth Beamwidth | 60° |
| Vertical/Elevation Beamwidth | 25° |
| Connector 1 | SMA-female |
| Cable Type | RG-316 |
| Height/Length (inches) | 23.78 |
| Height/Length (mm) | 604 |
| Operating Temp (celsius) | -30°C to + 60°C |
| Thickness/Diameter (inches) | 0.34 |
| Thickness/Diameter (mm) | 8.6 |
| Width (inches) | 11.97 |
| Width (mm) | 304 |
| Weight (lbs) | 3.9 |
| Weight (grams) | 1790 |
| Material | Flame Retardant ABS |
| Color | White |
| Mount Style | Flush Mount |
| Product Condition | New |
