WiFi WLAN Dual band dipole Flat Paddle Antenna for 2.4 & 5.0 GHz Sierra Wireless AirLink, Cradlepoint IBR Modem / Gateways and Pepwave router. RPSMA Connector. | RDA24/502-RSM

  • $10.39
    Unit price per

RDA24/502-RSM


55 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $9.36
25 $8.84
100 $8.06
250 $7.54
500 $7.38
1000 $6.84
Lead time for qty above 55:  Ships in 8-10 Weeks

Shipping calculated at checkout.

WiFi WLAN Dual band dipole Flat Paddle Antenna for 2.4 & 5.0 GHz Sierra Wireless AirLink, Cradlepoint IBR Modem / Gateways and Pepwave router. RPSMA Connector. | RDA24/502-RSM

More InfoSpecifications Reviews

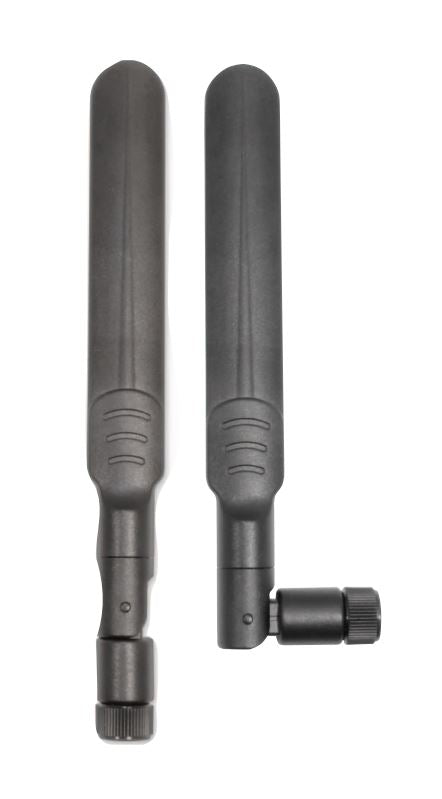

The RDA24/502-RSM offers long range WiFi coverage in a super small package.  This is an RFMAX dual band Hi-Gain Dipole,  Flat Paddle Antenna for 2.4 & 5.0 GHz WiFi / WLAN coverage with an articulating knuckle and Reverse Polarity SMA Male Connector (RP-SMA.)  This rubber duckie type antenna is designed for use with the Wi-Fi ports on Cradlepoint & Sierra Wireless 3G/4G/LTE cellular modems, access points, routers , gateways and small base station applications that have a WiFi or WLAN option.  The RDA24/502-RSM covers all 2.4 & 5.0 GHz WiFi bands, inlcuding 802.11 A,B,G,N & AC providing omnidirectional radiation with a gain of 2.1 -3.4 dBi for an outstanding coverage area.

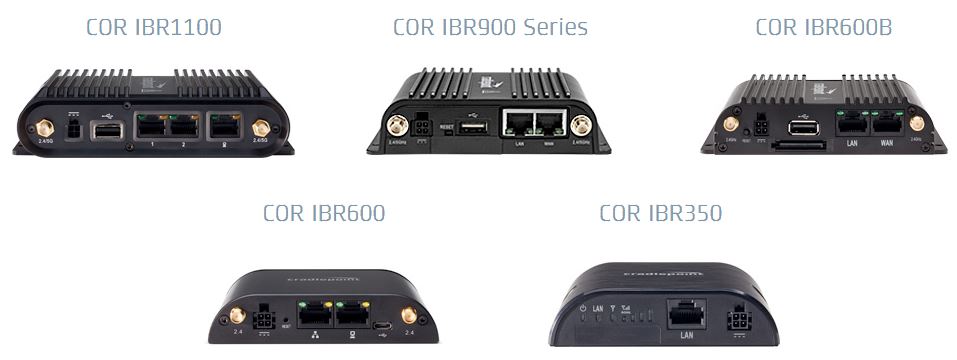

RPSMA Male connector mates with Sierra Wireless RV50 & GX450 as well as all Cradlepoint modems: IBR600, IBR600B, IBR900 & IBR1100.  Equivalent to antennas: 170628-000170548-000.



More Information

The RDA24/502-RSM is an RFMAX Hi-Gain Dipole,  Flat Paddle Antenna for 2.4 & 5.0 GHz WiFi / WLAN coverage with an articulating knuckle and Reverse Polarity SMA Male Connector (RPSMA.)  This rubber duckie type antenna is designed for use with the Wi-Fi ports on Cradlepoint & Sierra Wireless 3G/4G/LTE cellular modems, access points, routers , gateways and small base station applications that have a WiFi or WLAN option.  The RDA24/502-RSM covers all 2.4 & 5.0 GHz WiFi bands, inlcuding 802.11 A,B,G,N & AC providing omnidirectional radiation with a gain of 2.1 -3.4 dBi.

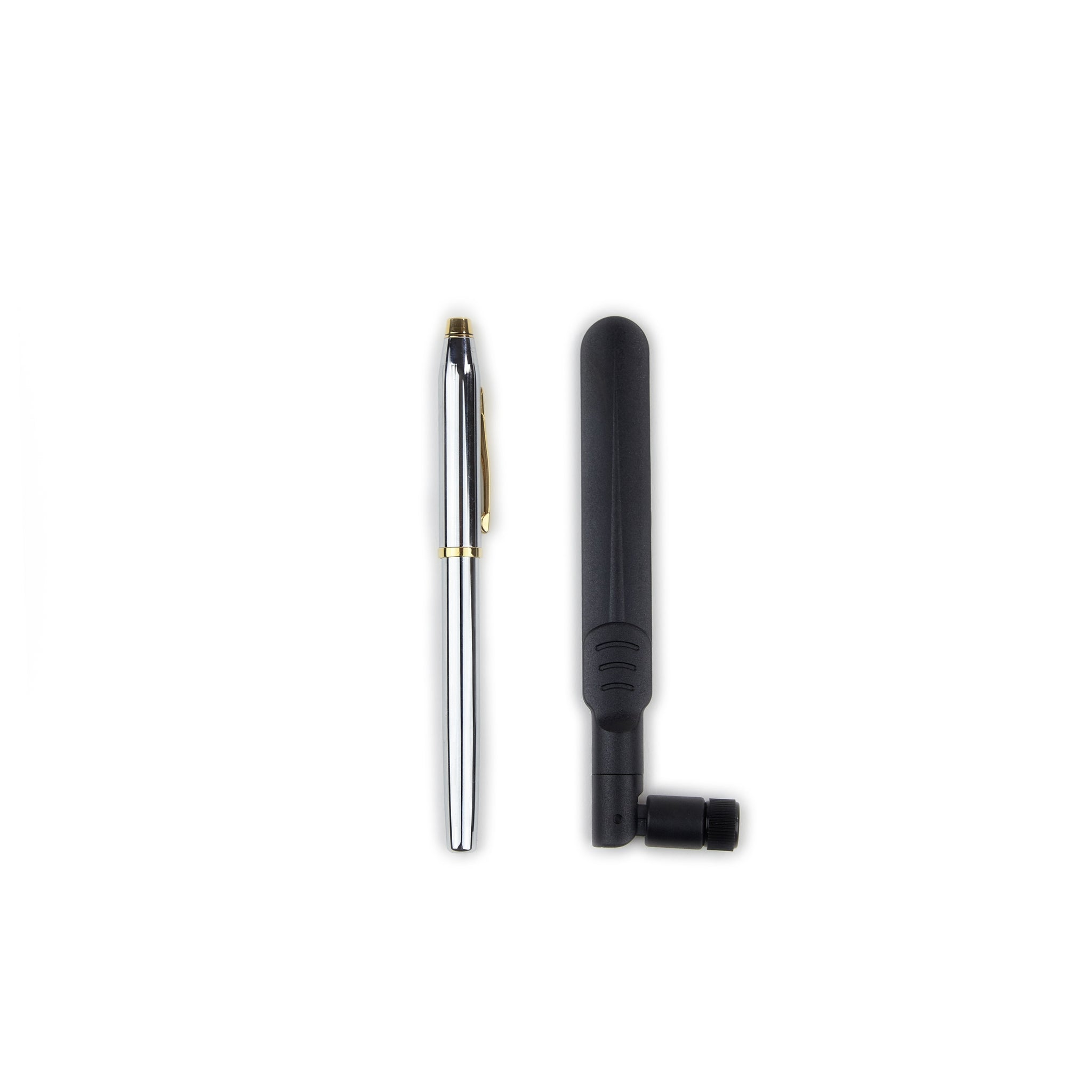

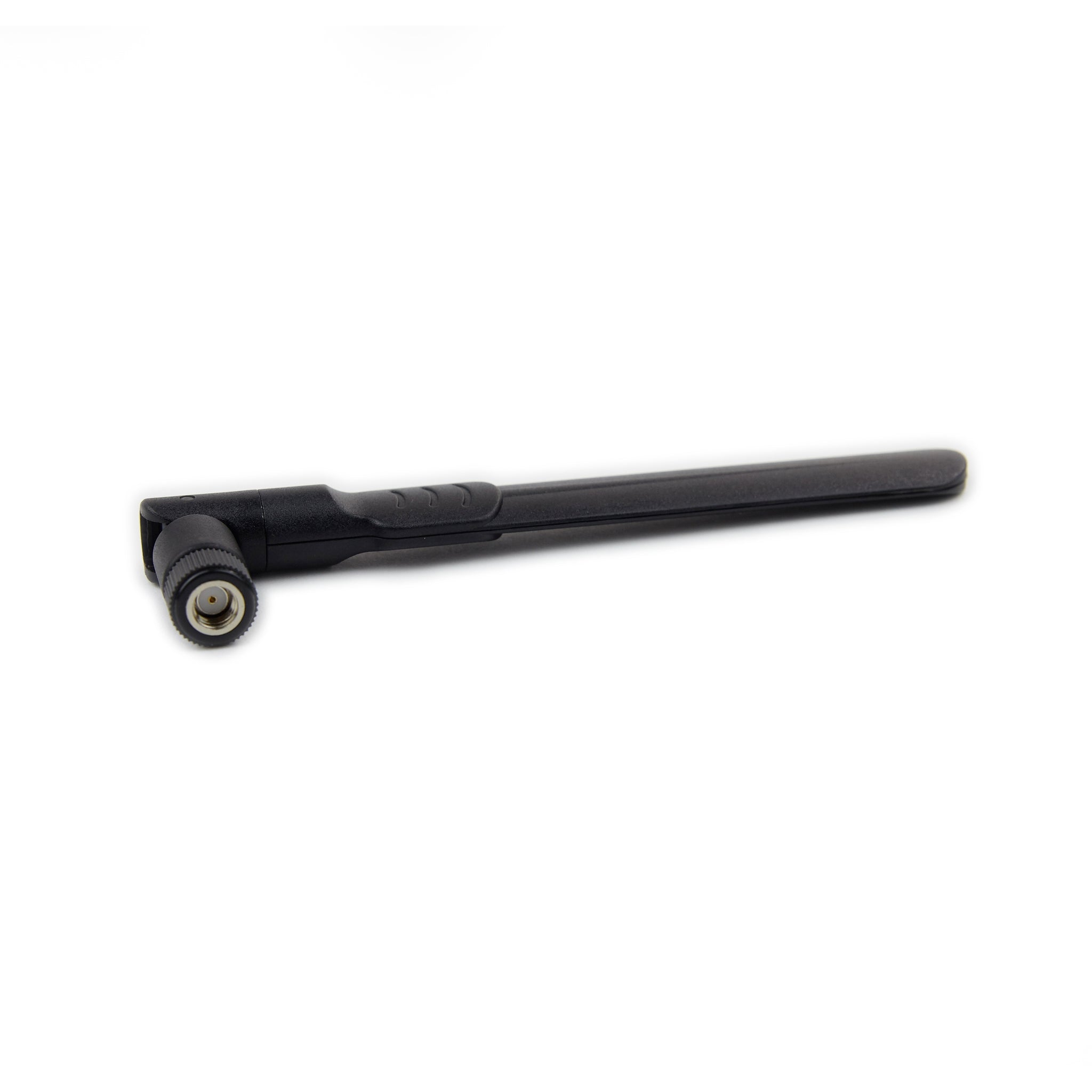

This antennas has a right angle swivel provided in black ABS plastic witha height of less than 4 inches tall.  It is supplied with an RPSMA Male connector which mates with Sierra Wireless RV50 & GX450 as well as all Cradlepoint modems: IBR600, IBR600B, IBR900 & IBR1100

Features

  • Opeates at 2.4 - 5.9 GHz for 802.11 a,b,g,n,ac WiFi & WLAN
  • Gain of 2.1 dBi at 2.4 GHz & 2.4 dBi at 5 GHz
  • Articulating Knuckle & RPSMA Male connector
  • RoHS Compliant
  • Equivalent to: 170628-000, 170548-000

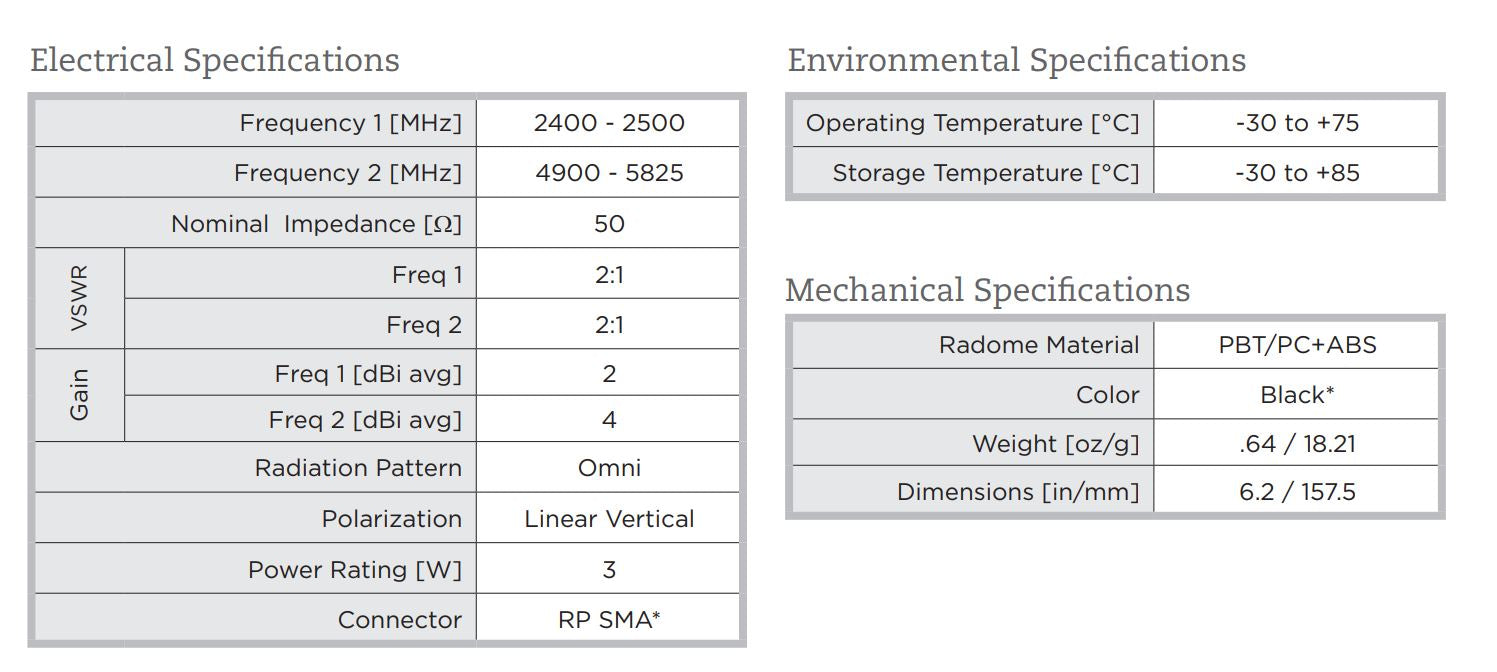

Specifications

SKU RDA24502RSM
Manufacturer Part Number RDA24/502-RSM
Manufacturer RFMAX
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2.4 GHz
Gain 2 dBi
Working Frequency 2 5.0 GHz
Gain 2 4 dBi
Antenna Style Blade or Stubby Antennas
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 6.2
Weight (lbs) 0.07 lbs
Material PBT/PC+ABS
Operating Temp (celsius) -30 to +70 C
Color Black
Connector Type Connector - Bottom
Connector 1 RP SMA-Male
Includes Articulating 90 degreee knuckle
Product Condition New
