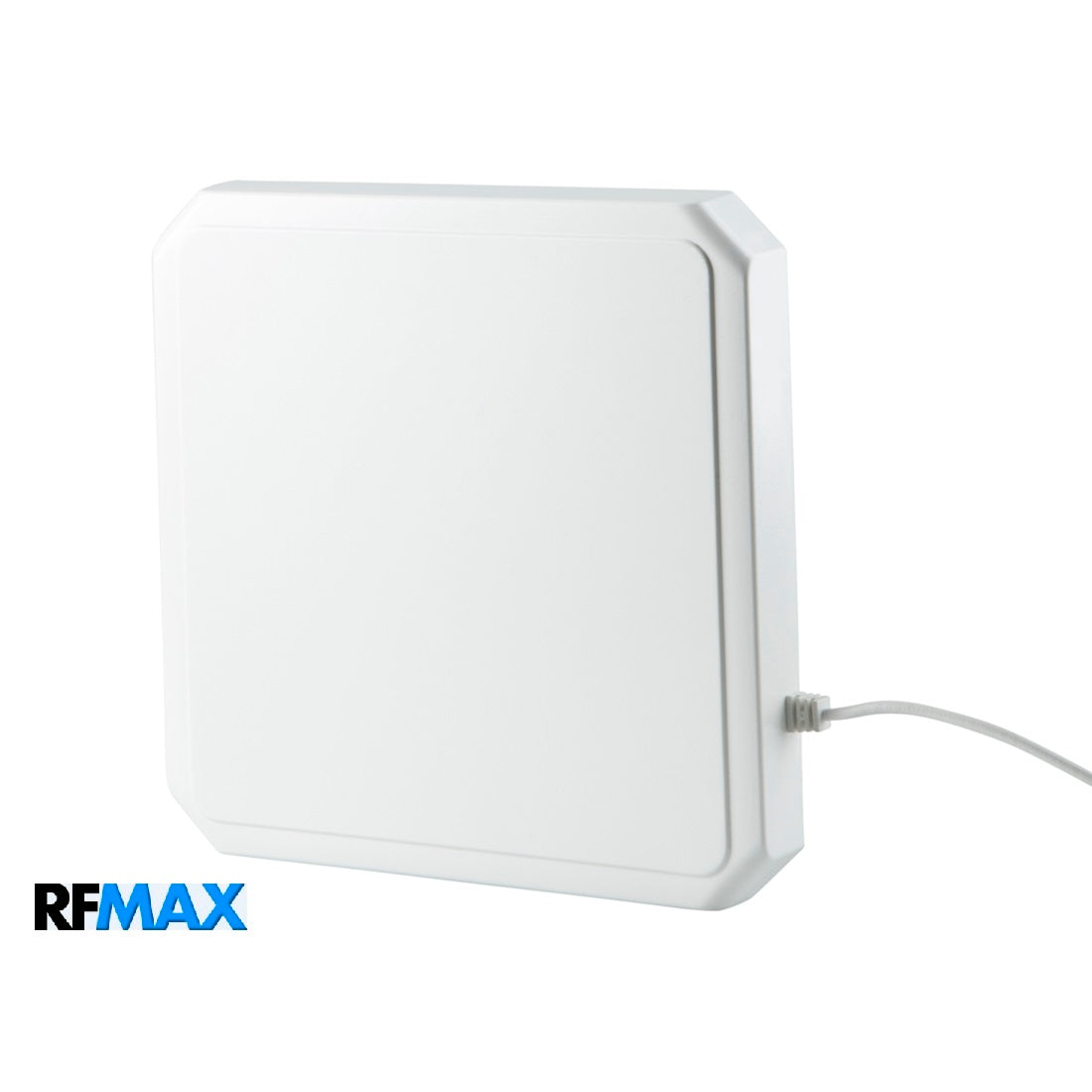

Zebra AN480 & Laird S9028PCL96RTN Equivalent RFID Antenna. 10x10 Inch Panel with 8 foot Cable & RPTNC. 64mm Mount | RCPR-902-8-RTM-8

  • $150.26
    Unit price per

RCPR-902-8-RTM-8


182 Can ship immediately
Lead time for qty above 182:  Ships in 8-10 Weeks

Shipping calculated at checkout.

Zebra AN480 & Laird S9028PCL96RTN Equivalent RFID Antenna. 10x10 Inch Panel with 8 foot Cable & RPTNC. 64mm Mount | RCPR-902-8-RTM-8

More InfoSpecifications Reviews

  • RFMAX # RCPR-902-8-RTM-8
  • Electrically Equivalent to Zebra FID antenna AN480-US
  • 63.5mm spaced mounting studs. Mount with HDMNT-100MM bracket
  • Circularly Polarized FCC RFID Antenna tuned for 902-928 Mhz.
  • 10x10 inches. 8.5 dBic LHCP gain. 70 degrees beamwidth
  • IP54 rated for indoor or moderate outdoor use
  • Tested with Zebra fixed RFID readers FX9600, FX7500, FXR90
  • Tested with Impinj fixed RFID readers R720, R420, R700, R220

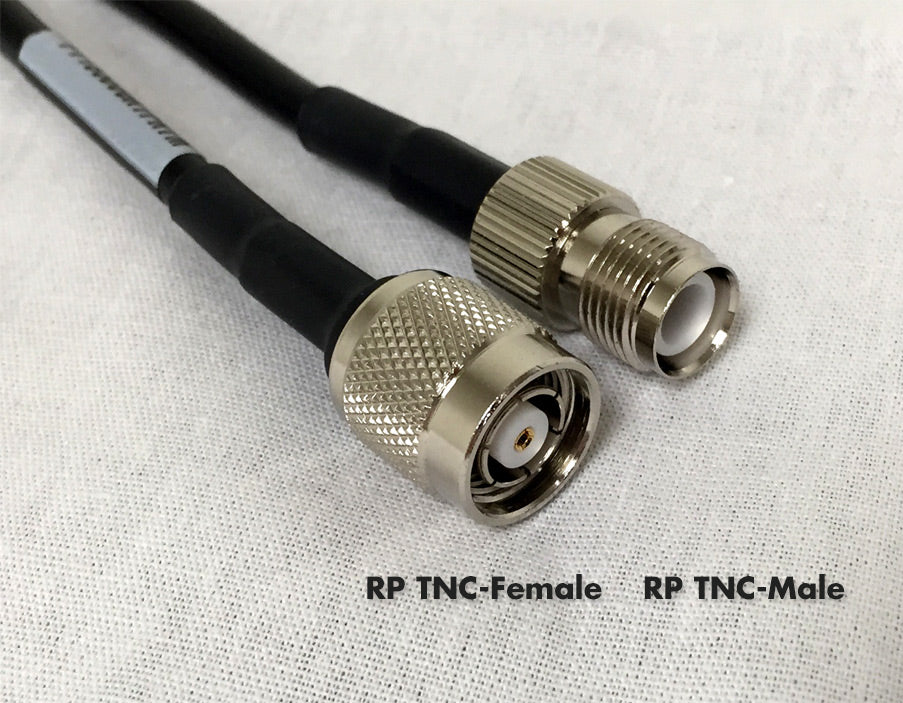

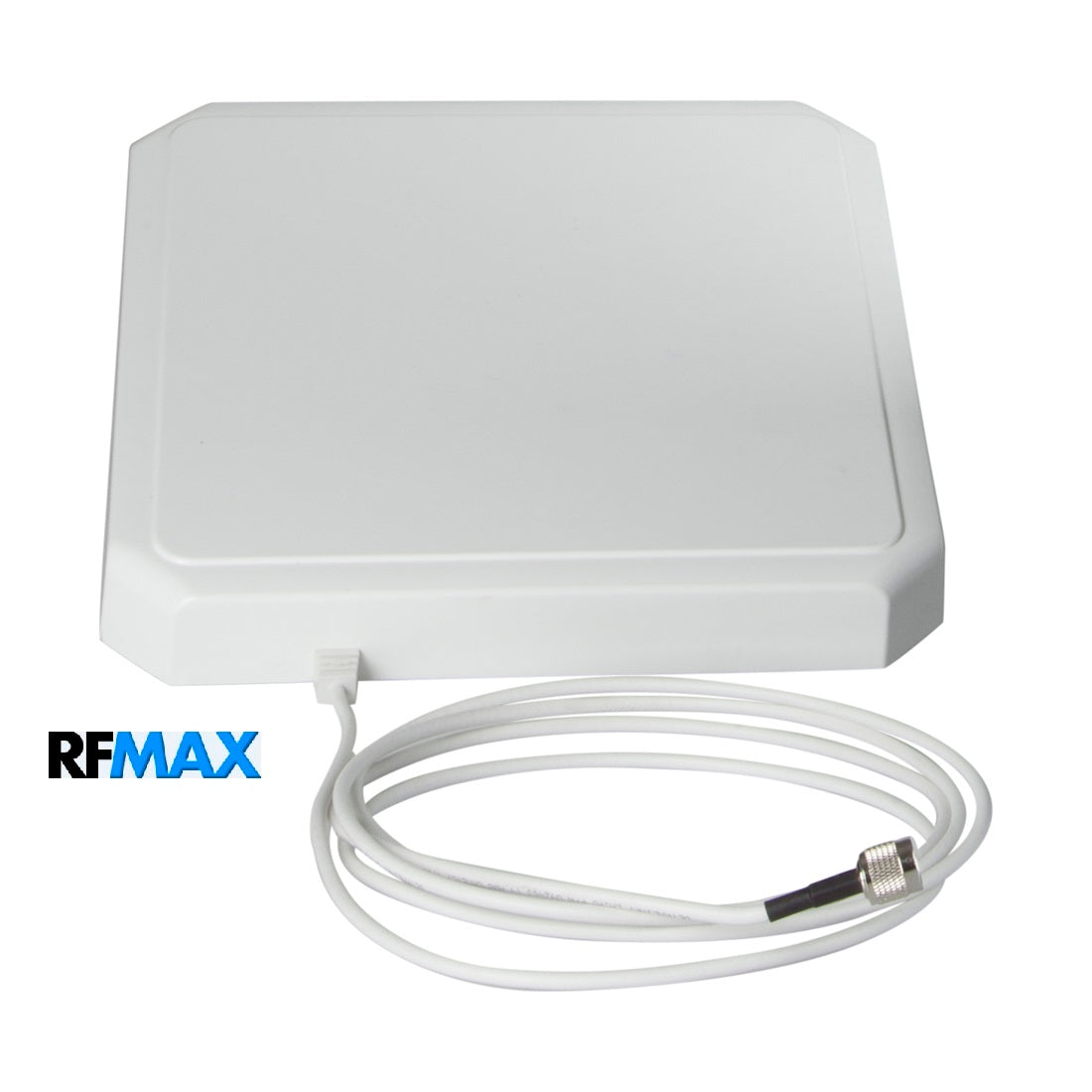

  • Pre-Installed 8 foot pigtail cable with RPTNC-Male Connector
  • Volume discounts for RFID System Integrators

Note: this is the ONLY antenna series that is certified to the US Navy's HERO standards for use on military projects (Hazards of Electromagnetic Radiation to Ordnance-MIL-STD-464A)



More Information


Specifications

SKU RCPR9028RTM8
Manufacturer Part Number RCPR-902-8-RTM-8
Manufacturer RFMAX
Working Frequency 902-928 MHz
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP54
Polarity Left Hand Circular
Gain 8.5
Horizontal/Azimuth Beamwidth 70
Vertical/Elevation Beamwidth 70
Connector Type Cable - Bottom Entry

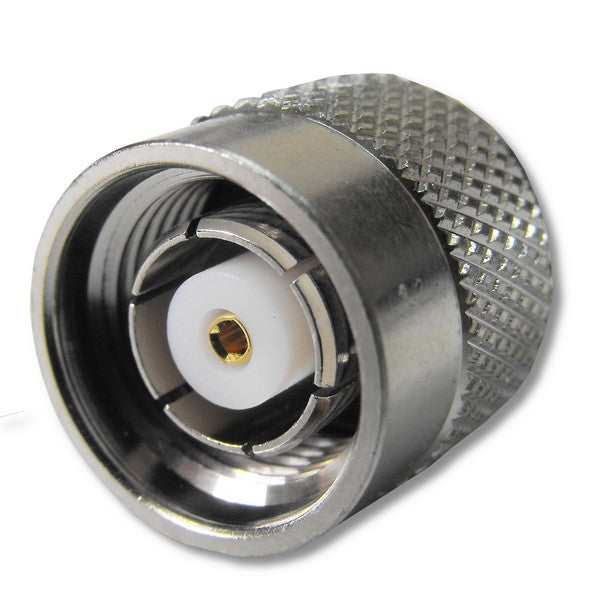

Connector 1 RP TNC-Male
Cable Length (inches) 96
Cable Length (mm) 2438
Height/Length (inches) 10.2
Height/Length (mm) 259
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 1.75
Weight (grams) 1130
Material ABS Housing

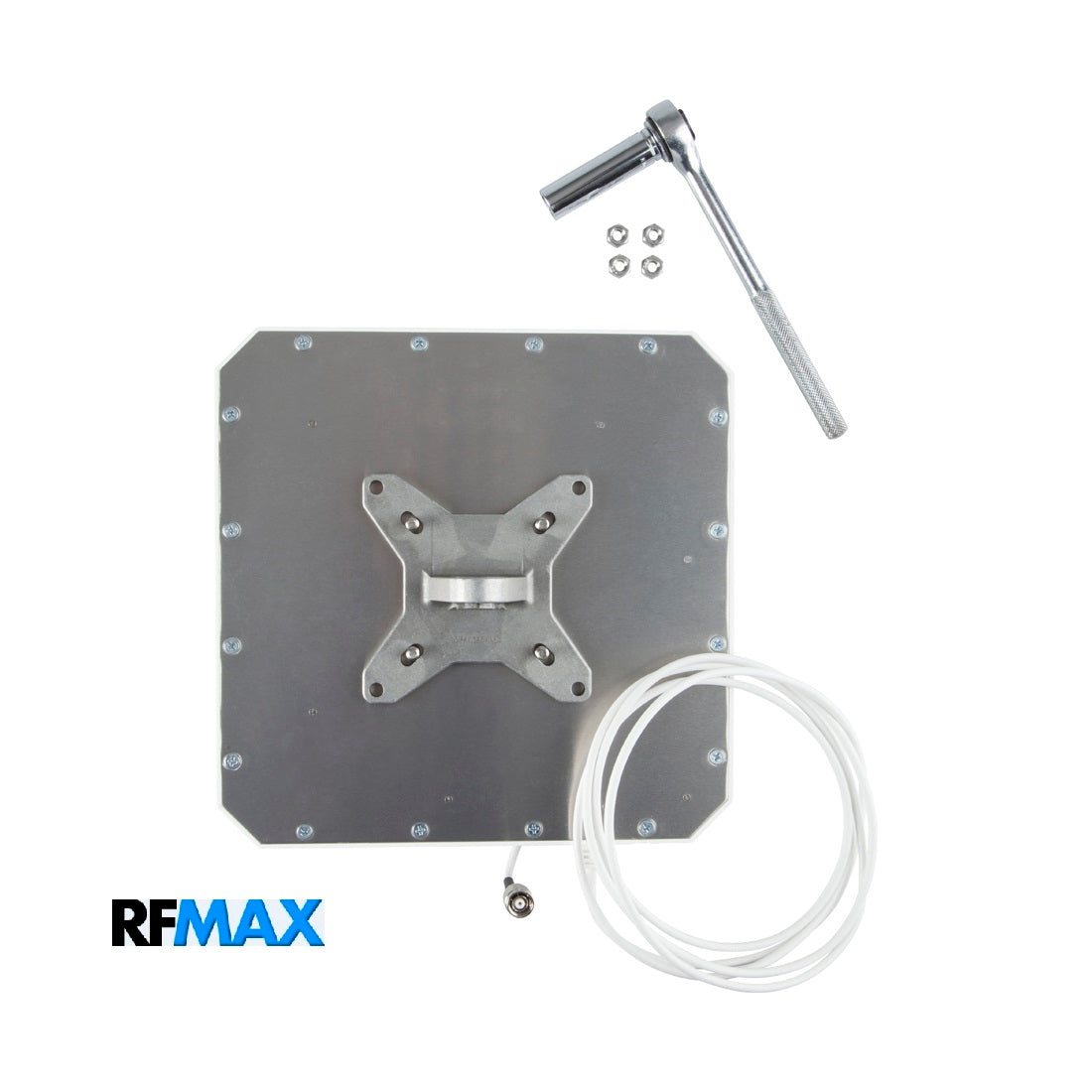

Mount Style (4) 1/4-20 Threaded Studs at 63.5 mm / 2.5 inch spacing
Includes 4 each: flat washers, lock washers & ¼-20 hex nuts
Product Condition New
