R9025-SR-SSF: Short Range / Near-Field RFID ANTENNA for FCC or ETSI 865-928 MHz
R9025-SR-SSF
Shipping calculated at checkout.
R9025-SR-SSF: Short Range / Near-Field RFID ANTENNA for FCC or ETSI 865-928 MHz

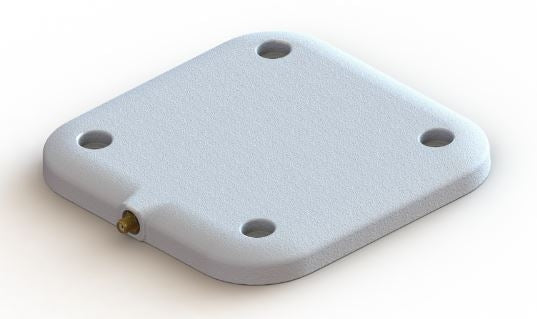

More InfoDocumentsSpecifications ReviewsThe RFMAX R9025-SR-SSF antenna is ideal for short-range or near-field UHF tag reads. The optimal tag range is 10-12 centimeters or 4-5 inches max. Excellent choice for for tap and go or touch applications. Flush or VESA mounting. IP68 rated all-plastic housing enclosure.
More Information
Specifications
| SKU | R9025SRSSF |
|---|---|
| Manufacturer Part Number | R9025-SR-SSF |
| Manufacturer | RFMAX |
| Working Frequency | 865-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | IP68 |
| Polarity | Near Field |
| Gain | 5.5 dBiC |
| Connector 1 | SMA-Female |
| Height/Length (inches) | 5.9 |
| Height/Length (mm) | 150 |
| Operating Temp (celsius) | -30° to +65°C |
| Thickness/Diameter (inches) | 0.55 |
| Thickness/Diameter (mm) | 14 |
| Width (inches) | 5.9 |
| Width (mm) | 150 |
| Weight (lbs) | 0.70 lbs |
| Material | UV-Resistant ABS |

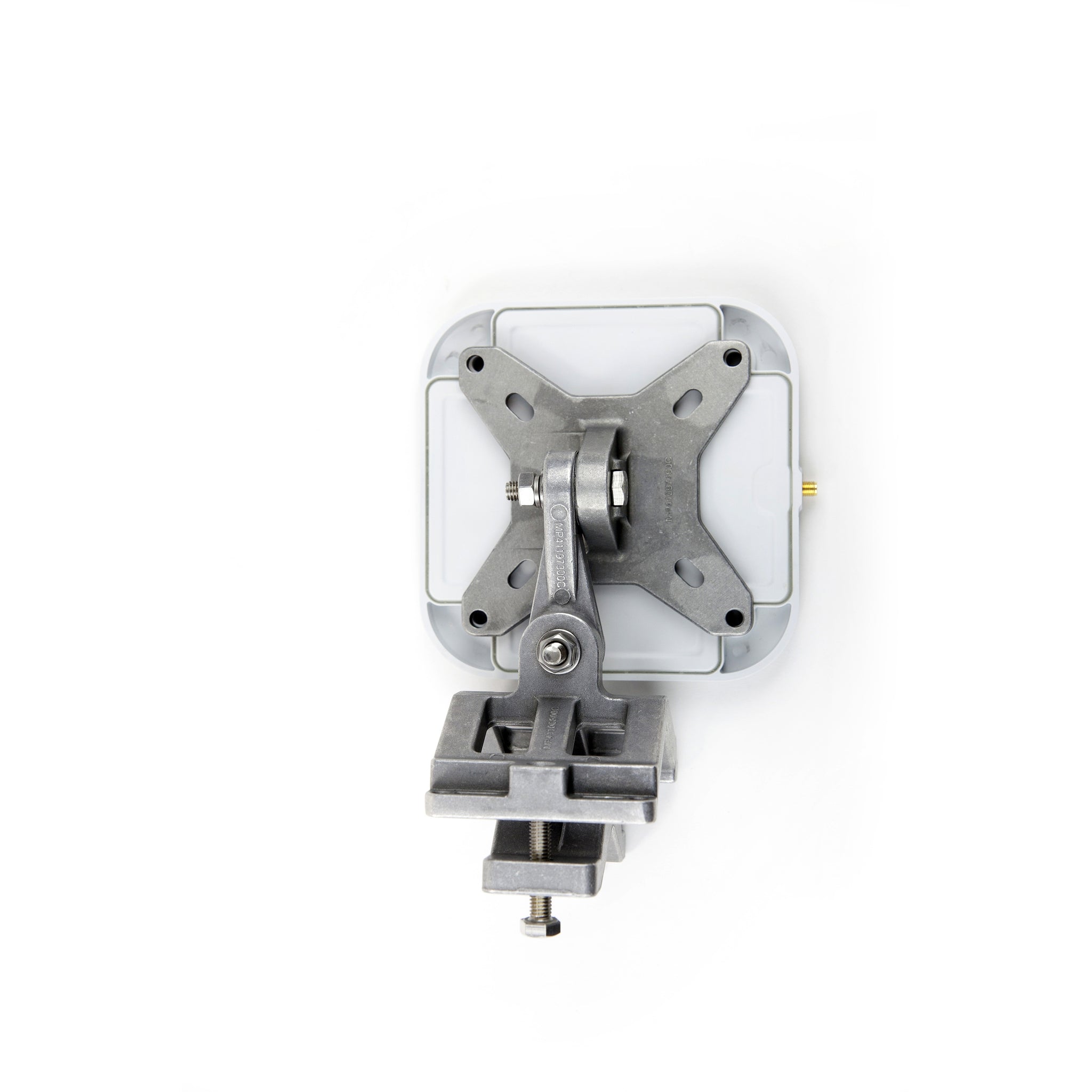

| Mount Style | Flush mount or VESA mount |
| Product Condition | New |
