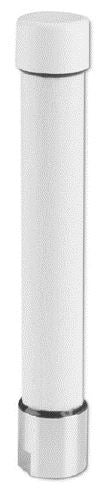

RO8063/21704NM: Outdoor Fiberglass Omni Antenna 806-960 & 171012170 MHz with N-Male
RO8063/21704NM
RO8063/21704NM: Outdoor Fiberglass Omni Antenna 806-960 & 171012170 MHz with N-Male
More InfoDocumentsSpecifications ReviewsThe RO806/321704NM from Pulse / Larsen is an IP67 rated Dual Band Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at the 806-960 & 1710-2170 MHz 3G cellular bands and is 15 inches long with N-male connector. This antenna was designed for wireless system developers and M2M system integrators in mind. It's rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.
Please note: This item has a minimum order qty of 6 pcs.
More Information
The RO806/321704NM from Pulse / Larsen is an IP67 rated Dual Band Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at the 806-960 & 1710-2170 MHz 3G cellular bands and is 15 inches long with N-male connector. This antenna was designed for wireless system developers and M2M system integrators in mind. It's rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.
Features:
- Frequency: Dual Band 3G Cellular: 806-960 & 1710-2170 MHz
- Gain: 3 dBi at 806 &4.5 dBi at 1710 MHz
- Environmental Rating: Outdoor - IP67
- Power: 20 Watts Max Input
- Wind Load: 150 MPH
- ESD Protection: DC Grounded
- Connector: N-Male
Documents
We Also Recommend
Specifications
| SKU | RO806321704NM |
|---|---|
| Manufacturer Part Number | RO8063/21704NM |
| Manufacturer | Pulse |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 806-960 MHz |
| Gain | 3 dBi |
| Working Frequency 2 | 1710-2170 MHz |
| Gain 2 | 4.5 dBi |
| Antenna Style | Omnidirectional Basestation Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 20 |
| VSWR: < X: 1 | 2.5:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 53 deg at 806-960 & 39 deg at 1710-2170 MHz |
| Plenum/Fire Rating | UL94 HB |
| Height/Length (inches) | 15.3 |
| Height/Length (mm) | 339 |
| Thickness/Diameter (inches) | 1.45 |
| Thickness/Diameter (mm) | 37 |
| Weight (lbs) | 0.5 |
| Weight (grams) | 228 |
| Material | Pultruded Fiberglass |
| Operating Temp (celsius) | -40 to +85 |
| Mount Style | Direct: N-Male |
| Color | White |
| Connector 1 | N-Male |
| IP Rating | IP67 |
| Product Condition | New |
