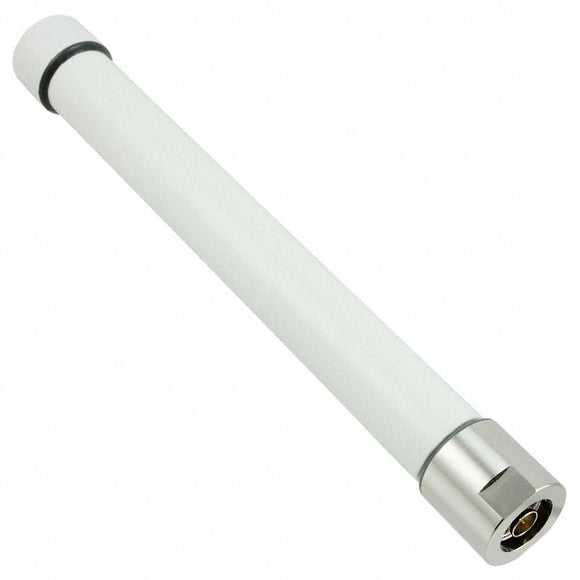

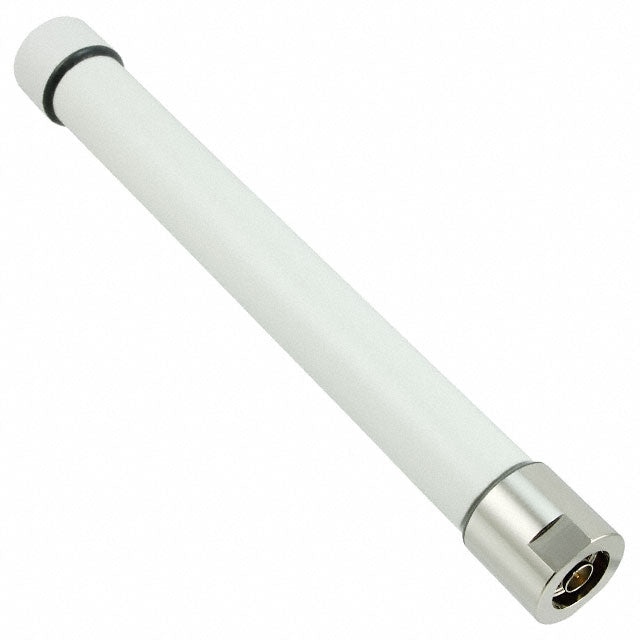

RO8061/21702NM: Outdoor Fiberglass Omni Antenna 806-960 & 1710-12170 MHz with N-Male

  • $65.83
    Unit price per

RO8061/21702NM


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $62.70
25 $58.09
100 $55.63
250 $53.02
500 $52.32
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

RO8061/21702NM: Outdoor Fiberglass Omni Antenna 806-960 & 1710-12170 MHz with N-Male

More InfoDocumentsSpecifications Reviews

The RO8061/21702NM from Pulse / Larsen is an IP67 rated Dual Band Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at the 806-960 & 1710-2170 MHz cellular bands and is 8.5 inches long with N-Male connector. This antenna was designed for wireless system developers and M2M system integrators in mind. It's rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.


More Information

The RO8061/21702NM from Pulse / Larsen is an IP67 rated Dual Band Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at the 806-960 & 1710-2170 MHz cellular bands and is 8.5 inches long with N-Male connector.  This antenna was designed for wireless system developers and M2M system integrators in mind. It's rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.

Features:

  • Frequency: Dual Band 3G Cellular 806-960 & 1710-2170 MHz
  • Gain: 1.5 dBi at 806 & 2.5 dBi at 2170 MHz
  • Enviornmental Rating: Outdoor - IP67
  • Power: 20 Watts Max Input
  • Wind Load: 150 MPH
  • ESD Protection: DC Grounded
  • Connector: N-Male

Documents


Specifications

SKU RO806121702NM
Manufacturer Part Number RO8061/21702NM
Manufacturer Pulse
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 806-960 MHz
Gain 1.5 dBi
Working Frequency 2 1710-2170 MHz
Gain 2 2.5 dBi
Antenna Style Omnidirectional Basestation Antenna
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 20
VSWR: < X: 1 2.5:1
Plenum/Fire Rating UL94 HB
Height/Length (inches) 8.5
Height/Length (mm) 215.9
Thickness/Diameter (inches) 1
Thickness/Diameter (mm) 25.3
Weight (lbs) 0.35
Weight (grams) 156
Material Pultruded Fiberglass
Operating Temp (celsius) -40 to +85 C
Mount Style Direct: N-Male
Color White
Connector 1 N-Male
IP Rating IP67
Accessory 1 FB2
Product Condition New
