RO8061/21702NF: IP67 Fiberglass Omni Antenna 806-960 & 1710-12170 MHz with N-Female
RO8061/21702NF
Shipping calculated at checkout.
RO8061/21702NF: IP67 Fiberglass Omni Antenna 806-960 & 1710-12170 MHz with N-Female
More InfoDocumentsSpecifications Reviews

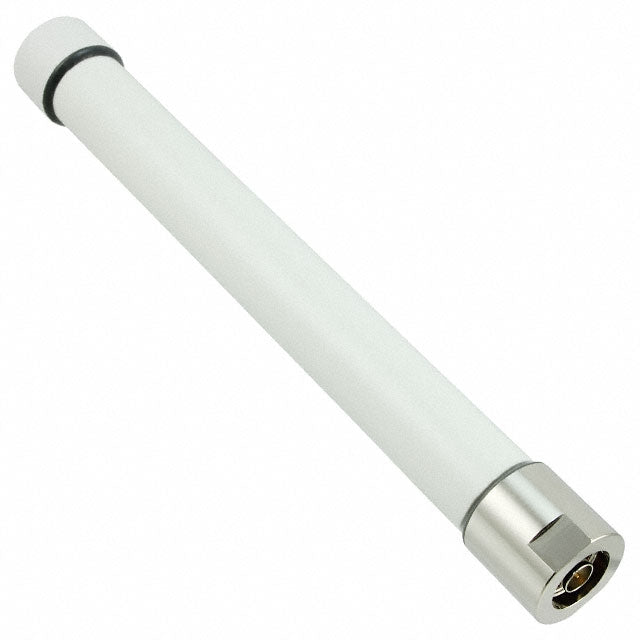

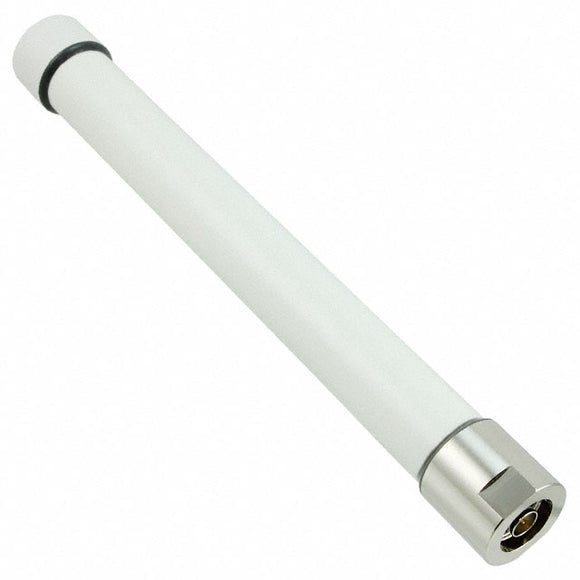

The RO8061/21702NF from Pulse / Larsen is an IP67 rated Dual Band Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at the 806-960 & 1710-2170 MHz cellular bands and is 8.5 inches long with N-Female connector. This antenna was designed for wireless system developers and M2M system integrators in mind. It's rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.
More Information
The RO8061/21702NF from Pulse / Larsen is an IP67 rated Dual Band Radome Omni Antenna for M2M machine-to-machine applications. This unit operates at the 806-960 & 1710-2170 MHz cellular bands and is 8.5 inches long with N-Female connector. This antenna was designed for wireless system developers and M2M system integrators in mind. It's rugged IP67 design works well for industrial and commercial wireless monitoring and sensing applications for: marine, mining, utility, oil & gas, AMR/automated meter reading, and LoRa (long range) gateways.
Features:
- Frequency: Dual Band 3G Cellular 806-960 & 1710-2170 MHz
- Gain: 1.5 dBi at 806-960 & 2.5 dBi at 1710-2170 MHz
- Enviornmental Rating: Outdoor - IP67
- Power: 20 Watts Max Input
- Wind Load: 150 MPH
- ESD Protection: DC Grounded
- Connector: N-Female
Documents
We Also Recommend
LABH2400NN
Inline or Bulkhead Lightning Arrestor N-female to N-female - 70 watts 50 ohms up to 4GHz
$96.82
$96.82
View Details
PT82NSMA
RF Coax Jumper Cable Assembly - 24 Inch RG58 N-Male - SMA-Male Connectors
$36.66
$36.66
View Details
RBDM-G55-17-SSS-B
3-in-1 Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables | RBDM-G55-17-SSS-B
$198.00
$198.00
View Details
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
$20.22
$20.22
View Details
FB2BRACKET
FB2BRACKET : Field Tunable Base Station Omni Antenna
$34.63
$34.63
$27.62
$27.62
View Details
RSF-DB-G4W-SSS
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
$145.00
$145.00
View Details
RBDM-55-SS-6
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Machine To Machine Communication. RBDM-55-SS-6
$99.00
$99.00
$88.00
$88.00
View Details
RSGB-698/2700-3-NF
Cellular 3G 4G LTE Omni low profile / disguise Antenna with N-Female Connector, Black Permanent Mount IP67, RSGB-698/2700-3-NF
$50.79
$50.79
View Details
Specifications
| SKU | RO806121702NF |
|---|---|
| Manufacturer Part Number | RO8061/21702NF |
| Manufacturer | Pulse |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 806-960 MHz |
| Gain | 1.5 dBi |
| Working Frequency 2 | 1710-2170 MHz |
| Gain 2 | 2.5 dBi |
| Antenna Style | Omnidirectional Basestation Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 20 |
| VSWR: < X: 1 | 2.5:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UL94 HB |
| Height/Length (inches) | 8.5 |
| Height/Length (mm) | 215.9 |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 25.3 |
| Weight (lbs) | 0.35 |
| Weight (grams) | 156 |
| Material | Pultruded Fiberglass |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct: N-Female |
| Color | White |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Accessory 1 | FB2 |
| Product Condition | New |
