NMOMMRDSSMARP Magnetic NMO Antenna Mounts With RP SMA

  • $33.50
    Unit price per

NMOMMRDSSMAR/P


29 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
25 $33.15
100 $31.08
250 $29.25
500 $27.25
Factory lead time:  Ships in 2-4 Weeks

NMOMMRDSSMARP Magnetic NMO Antenna Mounts With RP SMA

More InfoDocumentsSpecifications Reviews

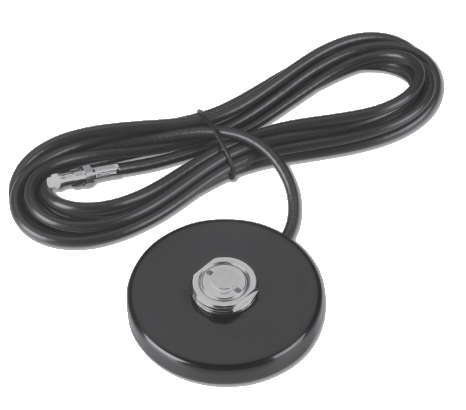

Pulse /Larsen 3.5 Inch diameter magnetic roof mount for NMO style antennas. Magnet features 80 lbs. pull strength. 12 foot RG-58A/U cable with RP SMA connector.

If this is not the NMO Mount you are looking for, please click here to find all NMO mounts we carry or email customersevice@arcadianinc.com  to get to one of our customer service team member.



More Information

After inventing the original NMO mount in the early 1970’s, (Pulse) Larsen has continued to set the standard for NMO antenna products. Antennas operating above 1,700 MHz require a better match than the traditional NMO mount can provide. To meet this requirement our NMO mounts include a variety of innovative features:

• Converts from low to high frequency applications and back simply by pulling or replacing the center pin and insulator. The larger center contact pin provides for additional strength against downward compression during low frequency installations, resulting in better low frequency VSWR.

• The new NMOHF and HF mounting kits are a direct replacement for the NMOB (and NMO mounting kits) providing one mount that delivers superior performance over a wide frequency range (27 MHz to 6.0 GHz).

• High quality components: gold plated contact pin and conductors, zinc alloy body plated with copper and nickel, nickel plated brass ring and precision tooled body parts and fully sealed solder connections.


Documents


Specifications

SKU NMOMMRDSSMARP
Manufacturer Part Number NMOMMRDSSMAR/P
Manufacturer Pulse
Product Condition New
Antenna Style NMO Magnetic
Antenna Style NMO Magnetic
NMO Mount Type Magnetic NMO Mount
Mount Style Magnetic NMO Mount
Mount Pattern Magnetic
Connector 1 RP SMA-Male Installed
Cable Length (Mounts) 12 Feet
Cable Type RG-58A/U DS Dual Shield
Weight (lbs) 1
Color Black
Connector Type Cable - Side Entry
Number of Cables 1
Includes 12 Foot RG-58 A/U Low Loss Teflon Cable with RP SMA Connector
Vehicular Yes
OK for Outdoor Use Yes
