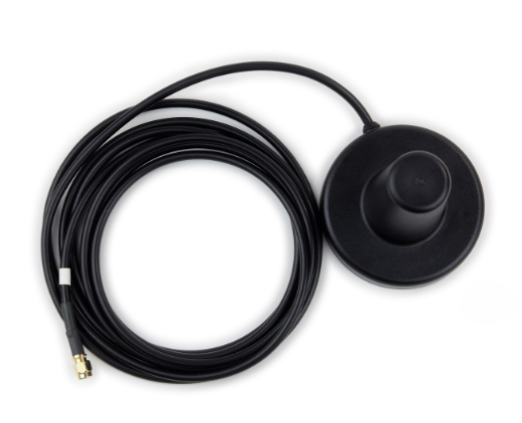

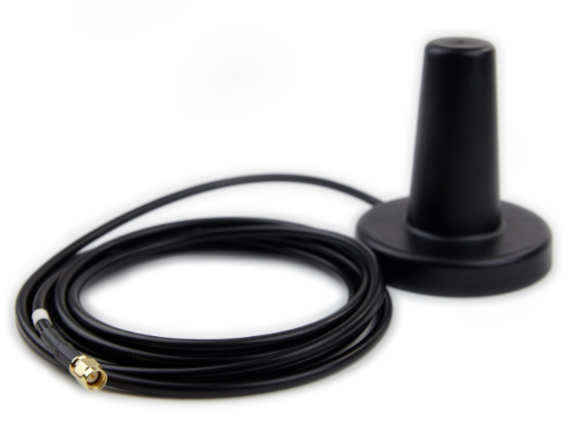

RSGB-W-MM-10RSM: Magnetic Mount Wi-Fi Disguise Antenna (2.4 / 5 GHz) with 10 ft Cable & RPSMA Male Connectors

  • $47.50
    Unit price per

RSGB-W-MM-10RSM


47 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
25 $37.50
Lead time for qty above 47:  Ships in 2-4 Weeks

Shipping calculated at checkout.

RSGB-W-MM-10RSM: Magnetic Mount Wi-Fi Disguise Antenna (2.4 / 5 GHz) with 10 ft Cable & RPSMA Male Connectors

More InfoDocumentsSpecifications Reviews

Features:

  • 802.11 A, B, G, N
  • Low Profile / Disguise Antenna
  • 2.4-2.5 and/ or 4.9-5.925 GHz
  • 5.5 dBi Gain at 2.4 GHz.  7.2 dBi Gain at 5 GHz

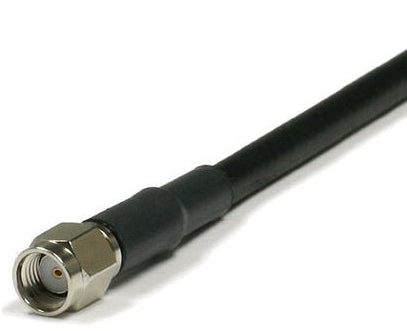

  • 10 ft. RG58 Cable with RP SMA-Male Connector
  • IP67 OUTDOOR Rating
  • Super Holding Power Magnetic Mount
  • Applicable for vehicular transportation and logistical operations


More Information

Features:

  • 2.4-2.5/4.9-5.925 GHz
  • 5.5/7.2 dBi Gain
  • 10 ft. Rg58 Cable with RP SMA-Male Connector
  • IP67 Rating
  • Magnetic Mount
  • Applicable for vehicular transportation and logistical operations




Documents


Specifications

SKU RSGBWMM10RSM
Manufacturer Part Number RSGB-W-MM-10RSM
Manufacturer RFMAX
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2.4-2.5 GHz
Gain 5.5 dBi
Working Frequency 2 4.9-5.925 GHz
Gain 2 7.2 dBi
Antenna Style Low Profile Antenna
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2
Height/Length (inches) 3.37
Height/Length (mm) 85.7
Weight (lbs) 320
Weight (grams) 0.71
Operating Temp (celsius) -40 to 85
Mount Style Magnetic
Color Black
Connector 1 RP SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
