PCE12106-04B: RFID Reader Enclosure 12x10x6 inch for Impinj & Zebra (black)

  • $770.87
    Unit price per


0 in stock. Subject to factory lead time
Lead time:  Ships in 4-6 Weeks

Shipping calculated at checkout.

PCE12106-04B: RFID Reader Enclosure 12x10x6 inch for Impinj & Zebra (black)

More InfoDocumentsSpecifications Reviews

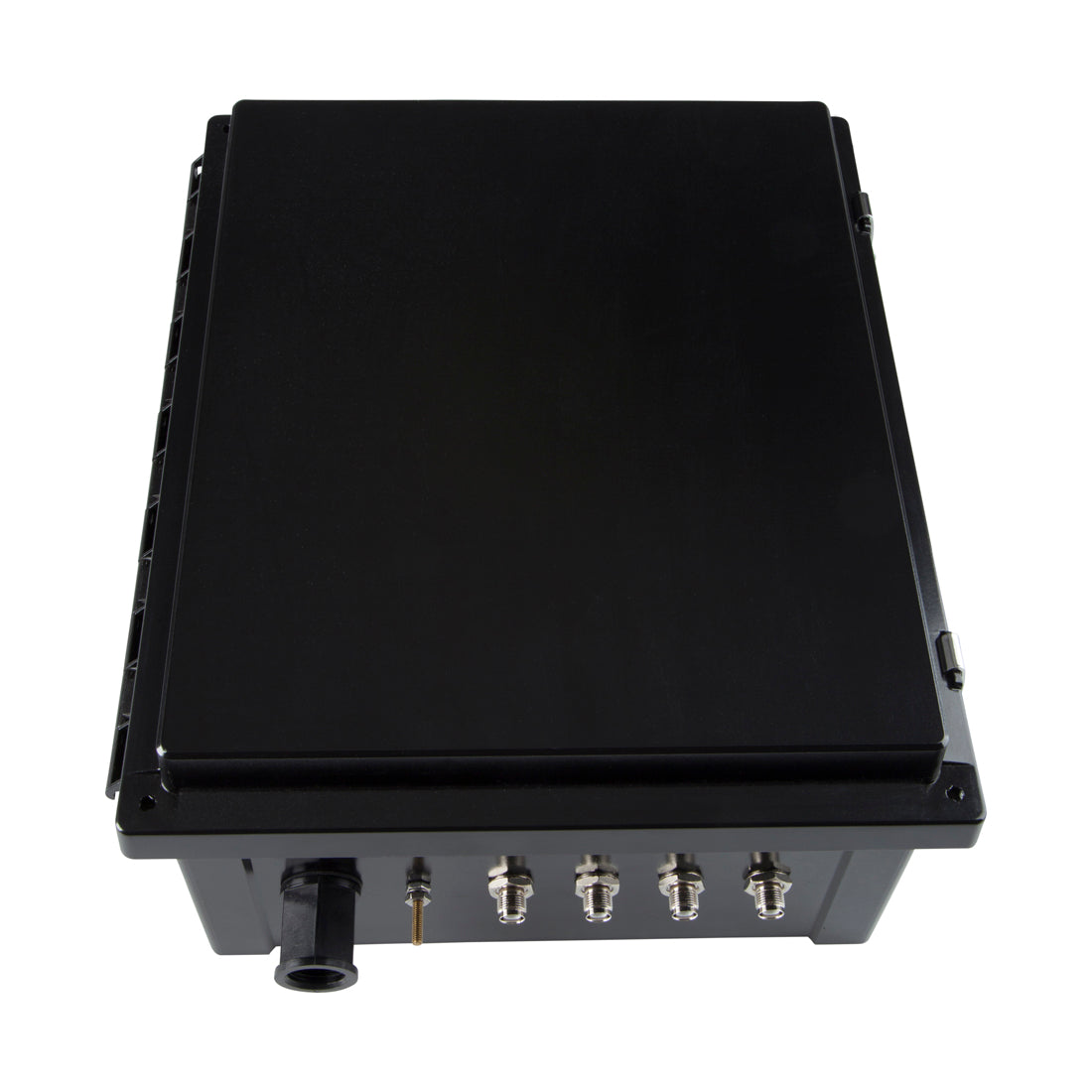

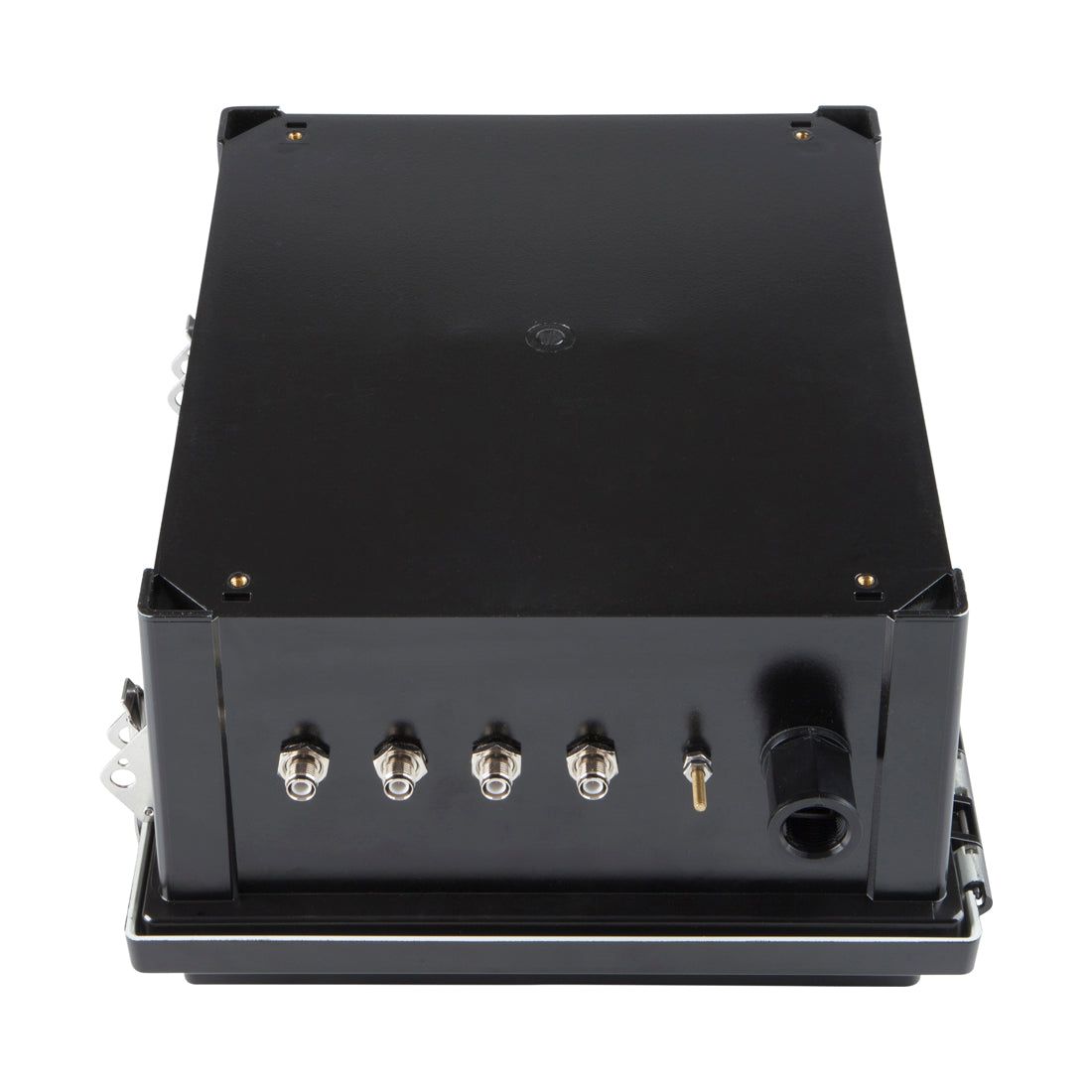

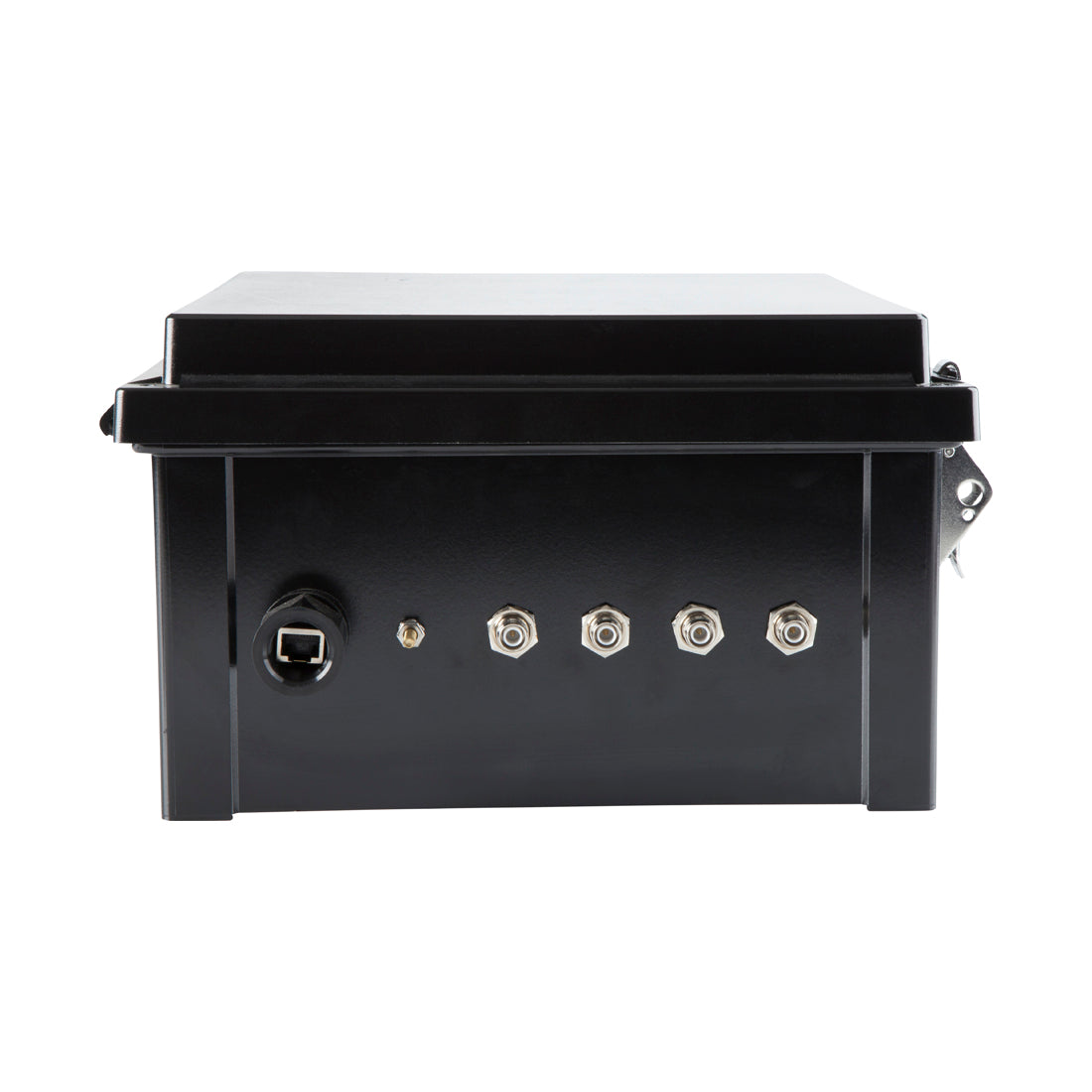

The PCE1210604B is a 12x10x6 inch, BLACK, NEMA 4 enclosure for RFID.  This heavy duty box is constructed of tough, weather-tight polycarbonate for use indoors or outdoors. This enclosure was specifically designed for use with today's most popular RFID readers, and includes an integrated aluminum mounting plate that is pre-drilled for mounting the 4-port Impinj R700, R420 Speedway Revolution, the 2-port Impinj R220, as well as the Motorola Zebra FX7500 and FX7400 RFID readers.  By using self-tapping screws, you can drill just a few holes yourself, and this enclosure will work for ANY 4-port reader in the market today from Alien, Trimble/ThingMagic, Feig, or Intermec.  The unit includes the enclosure with stainless steel locking latches, interior aluminum backplate, 4 coax cables with protruding bulkhead RPTNC-Female connectors, a PoE entry port,  internal PoE surge protector and a brass grounding lug.  The unit is pre-painted BLACK for easy concealment.

Accommodates the following Fixed RFID Readers: Impinj Speedway R120, R220 R420 & R700.  Alien ALR-F800 and Zebra FX7500, FX7400.

More Information


SKU PCE1210604B
Manufacturer RFMAX
Bands Single
IP Rating 66
Connector Type Connector - Bottom
Connector 1 RP TNC-Female
Height/Length (inches) 12
Height/Length (mm) 305
Thickness/Diameter (inches) 6
Thickness/Diameter (mm) 152
Width (inches) 10
Width (mm) 254
Weight (lbs) 10
Weight (grams) 4535
Material Polycarbonate
Mount Style Mast or Wall
Includes Wall Mounting Tabs
Product Condition New
