PCE12106-04W: RFID Reader Enclosure 12x10x6 inch for Impinj & Zebra PCE12106-04W (white)

  • $694.48
    Unit price per

PCE12106-04W


38 Can ship immediately
Lead time for qty above 38:  Ships in 4-6 Weeks

Shipping calculated at checkout.

PCE12106-04W: RFID Reader Enclosure 12x10x6 inch for Impinj & Zebra PCE12106-04W (white)

More InfoDocumentsSpecifications Reviews

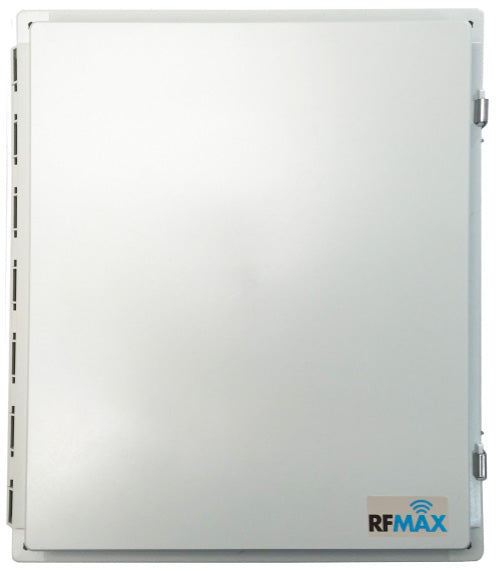

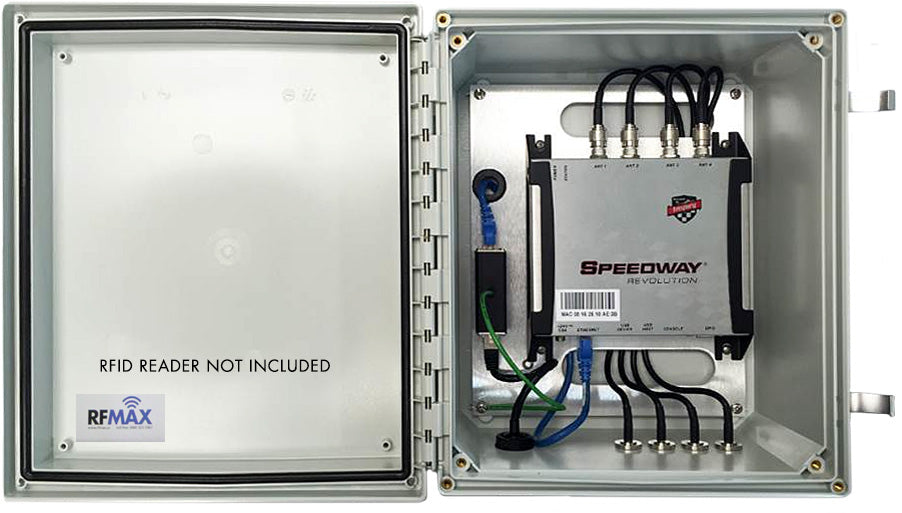

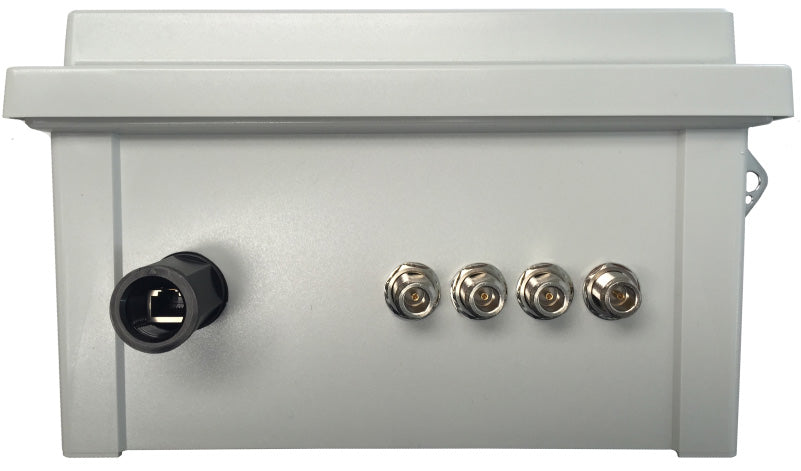

The PCE12106-04W is a 12x10x6 inch, white, NEMA 4 enclosure for RFID readers. This heavy duty box is constructed of tough, weather-tight polycarbonate for use indoors or outdoors. This enclosure was specifically designed for use with today's most popular RFID readers, and includes an integrated aluminum mounting plate that can accommodate the 4-port Impinj R700, R420 Speedway Revolution, the 2-port Impinj R220, as well as the Motorola Zebra FX7500 and FX7400 RFID readers.  By using self-tapping screws, you can drill just a few holes yourself, and this enclosure will work for just about ANY 4-port reader in the market today from Zebra, Impinj Alien, Trimble/ThingMagic, Feig, or Intermec.  The unit includes the enclosure with stainless steel locking latches, interior aluminum backplate, 4 coax cables with protruding bulkhead RPTNC-Female connectors, a PoE entry port,  internal PoE surge protector and a brass grounding lug.

Accommodates the following Fixed RFID Readers: Impinj Speedway R120, R220, R420 & R700.  Alien ALR-F800 and Zebra FX7500, FX7400.



More Information


Specifications

SKU PCE1210604W
Manufacturer Part Number PCE12106-04W
Manufacturer RFMAX
Bands Single
IP Rating 66
Connector Type Connector - Bottom
Height/Length (inches) 12
Height/Length (mm) 305
Thickness/Diameter (inches) 6
Thickness/Diameter (mm) 152
Width (inches) 10
Width (mm) 254
Weight (lbs) 10
Weight (grams) 4535
Material Polycarbonate
Mount Style Mast or Wall
Includes Wall Mounting Tabs
Product Condition New
