PAV90209H-91NM: Laird Linear Polarity RFID Panel Antenna 902-928 MHz with N-Male Connector

  • $226.80
    Unit price per

PAV90209H91NM


0 in stock. Subject to factory lead time
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

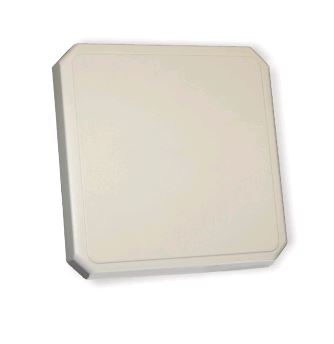

PAV90209H-91NM: Laird Linear Polarity RFID Panel Antenna 902-928 MHz with N-Male Connector

More InfoSpecifications Reviews

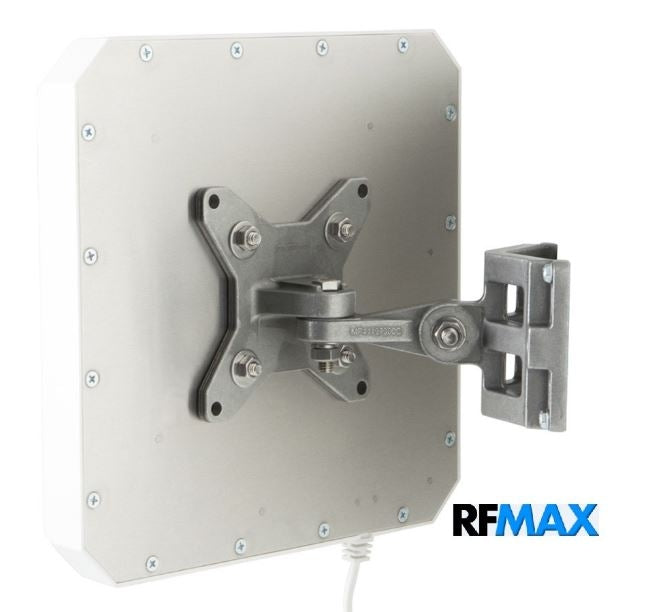

PAV90209H-91NM is a Laird RFID Panel Antenna operating within 902-928 MHz frequency range with a 91 cm coax cable and an N-Male Connector. This antenna is designed to provide reception and signal transmissions in warehouses, airports, hospitals, and transit terminals. Use HDMNT-100MM mount with this antenna



More Information


Specifications

SKU PAV90209H91NM
Manufacturer Laird
Working Frequency 902-928 MHz
Antenna Category RFID (865-928 MHz)
IP Rating IP67
Polarity Linear
Gain 9 dBi
Horizontal/Azimuth Beamwidth 70
Connector 1 N-Male
Cable Length (inches) 36
Cable Length (mm) 910

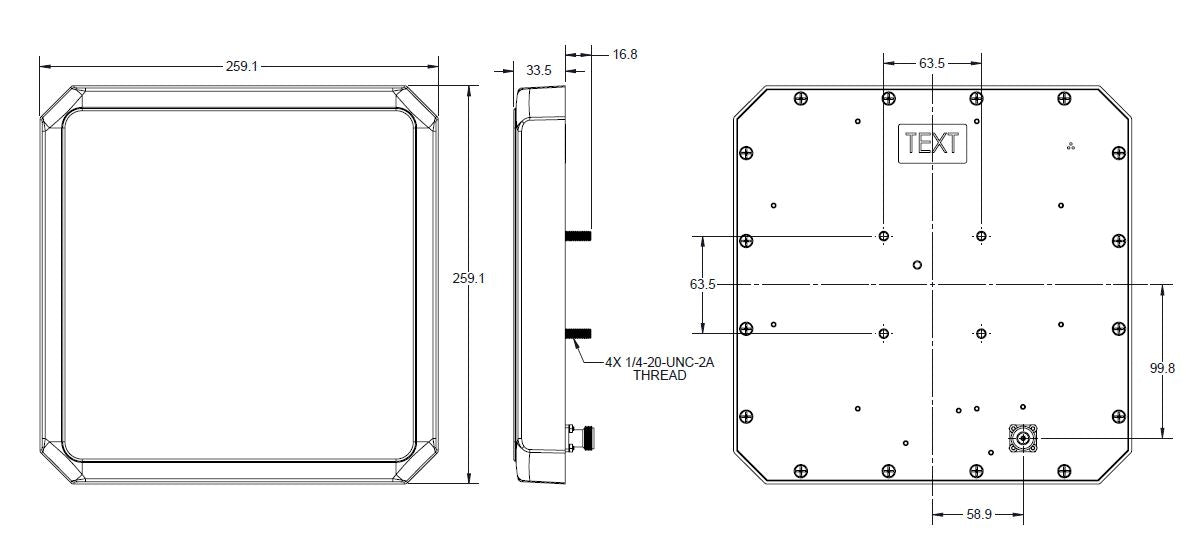

Height/Length (inches) 10.2
Height/Length (mm) 259
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 33.5
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 2.3
Product Condition New
