N2410CM3-T-G50U : Airgain Single-band(2.4-2.49 GHz) PCB Plug and play antenna with 50 mm cable and IPEX/MHF/UFL connector

  • $5.63
    Unit price per

N2410CM3-T-G50U


485 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $5.12
25 $4.50
100 $4.02
250 $2.82
500 $2.05
1000 $1.88
2500 $1.74
Factory lead time:  Ships in 6-8 Weeks

N2410CM3-T-G50U : Airgain Single-band(2.4-2.49 GHz) PCB Plug and play antenna with 50 mm cable and IPEX/MHF/UFL connector

More InfoDocumentsSpecifications Reviews

N2410CM3-T-G50U : Airgain Single-band(2.4-2.49 GHz) PCB Plug and play antenna with 50 mm cable and IPEX/MHF/UFL connector. These antennas are used for Wi-Fi, Bluetooth, Zigbee, Zwave, RF4CE


More Information

N2410CM3-T-G50U : Airgain Single-band(2.4-2.49 GHz) PCB Plug and play antenna with 50 mm cable and IPEX/MHF/UFL connector. These antennas are used for Wi-Fi, Bluetooth, Zigbee, Zwave, RF4CE

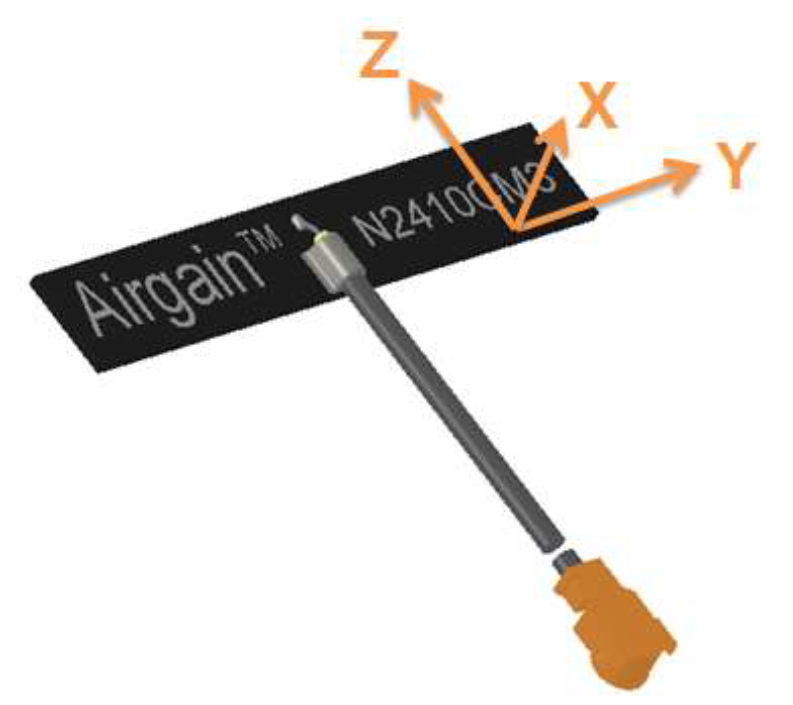

The Model N2410CM3 Embedded Antenna provides a high efficiency, embedded antenna solution for Wi-Fi and ISM band applications, such as WLAN products in Europe. As embedded antenna solutions become the focus of next generation wireless product design, the Model N2410CM3 provides the flexibility of an embedded antenna with top performance. The Model N2410CM3 Embedded Antenna was designed to accommodate most WLAN access point applications, such as routers and gateways. The product can be easily integrated into an ID package design.

The Model N2410CM3 Embedded Antennas are defined by the following features:

  • IEEE 802.11 b/g/n standards

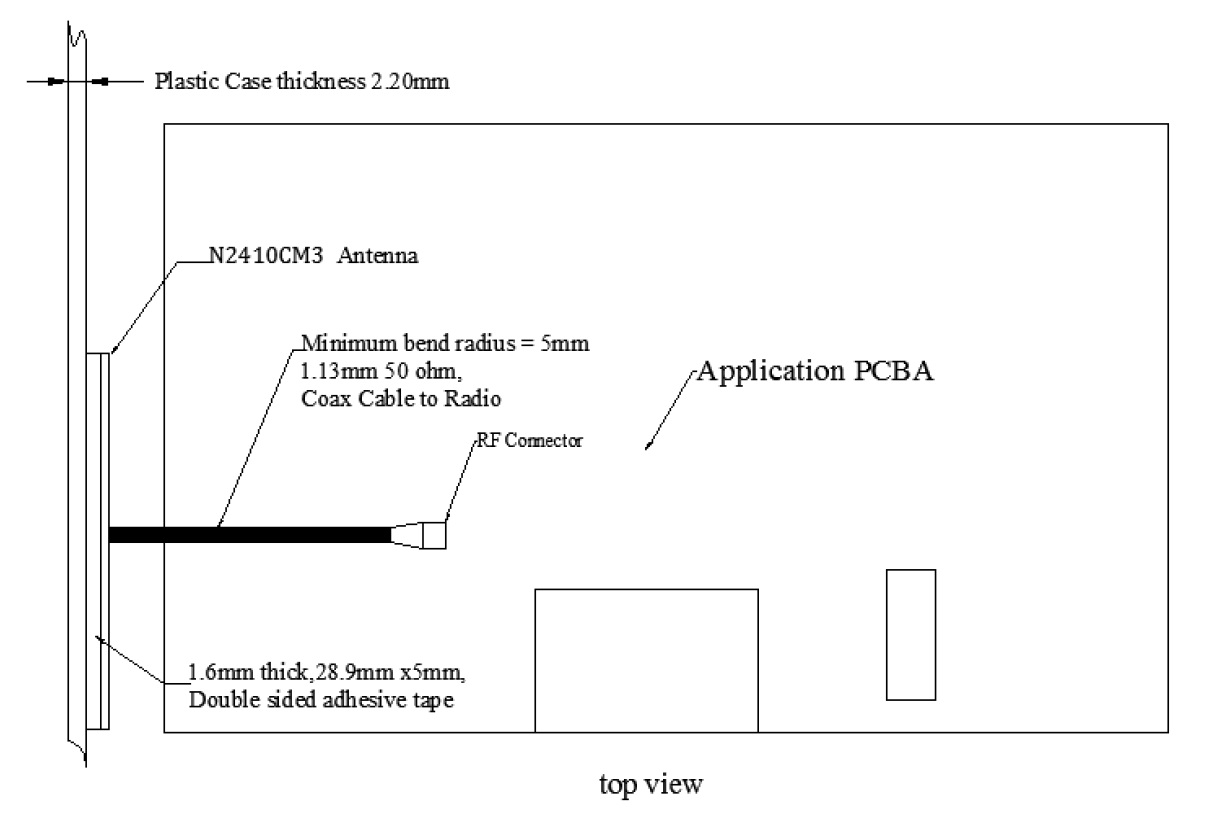

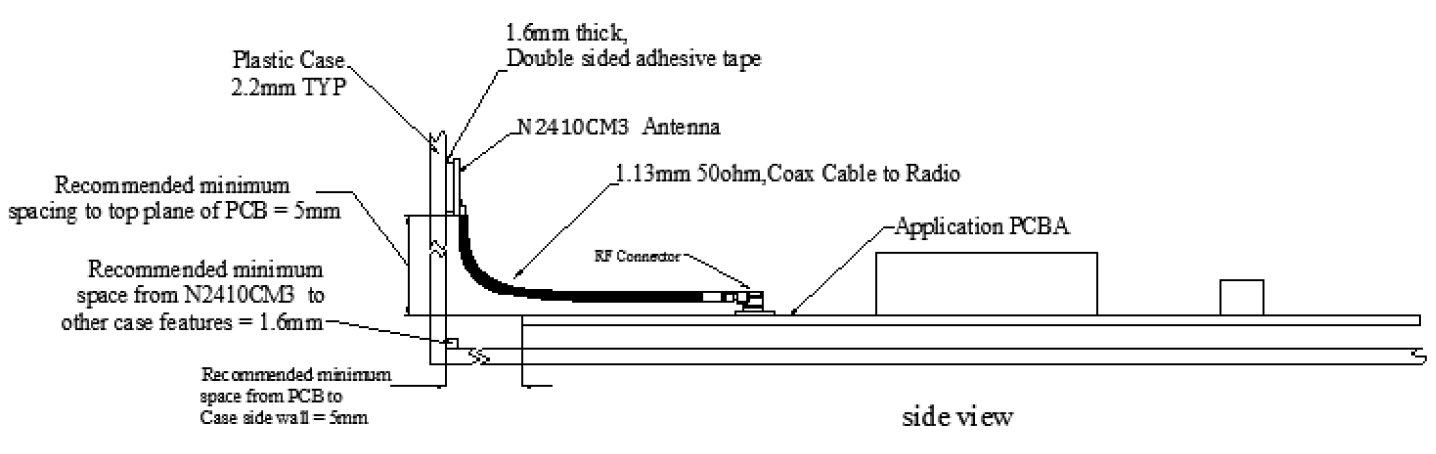

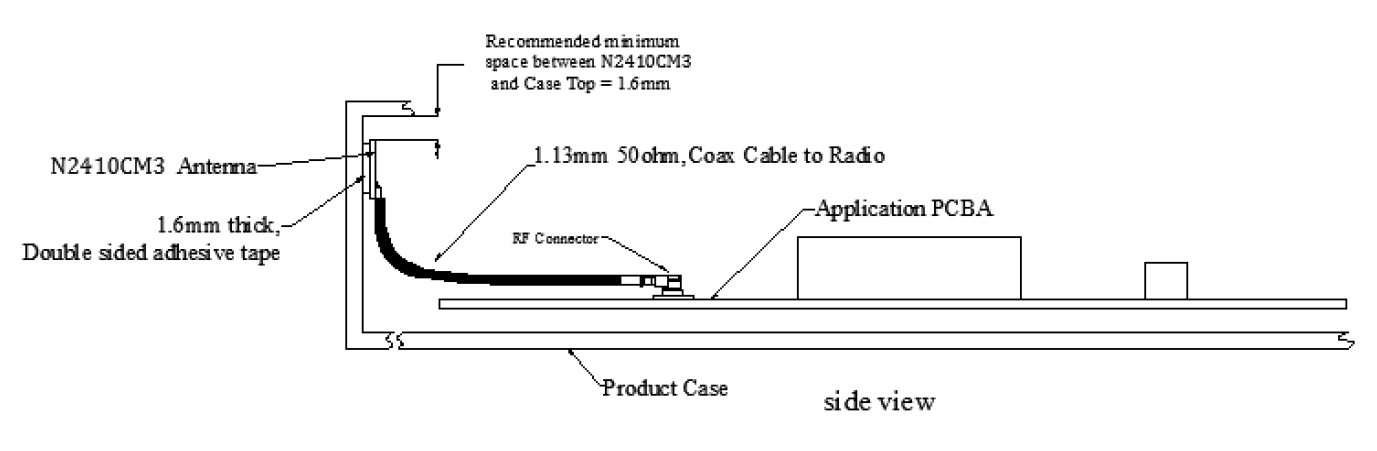

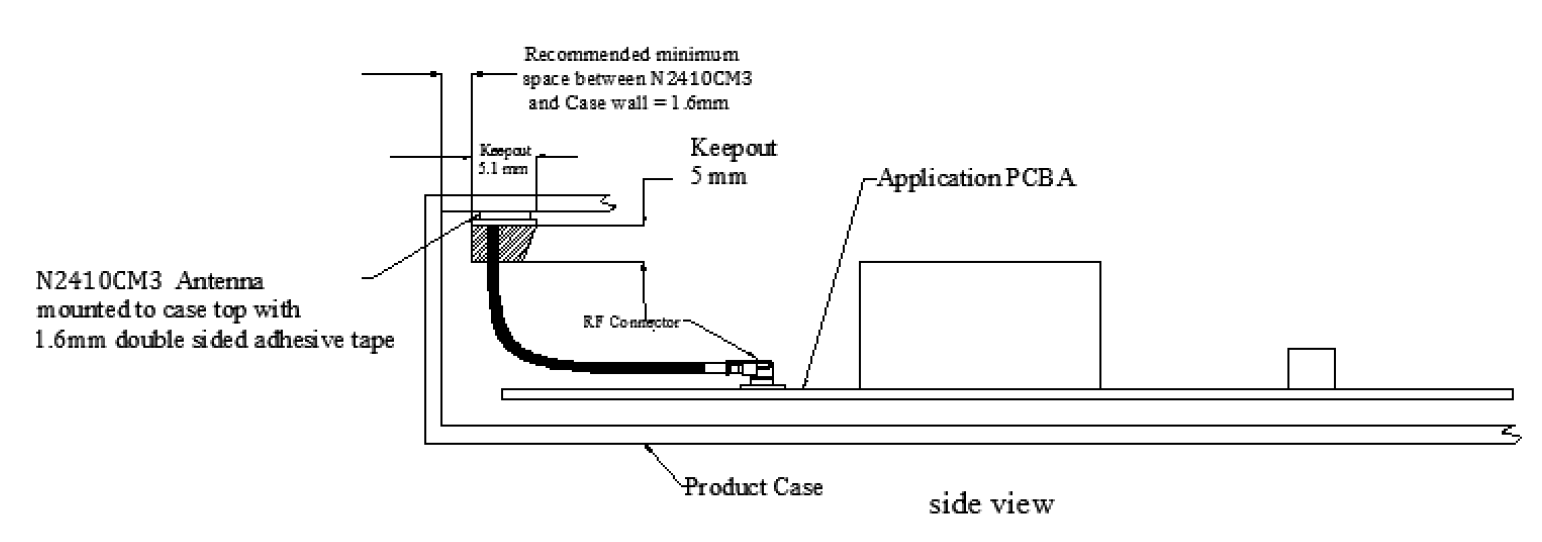

  • Case mount
  • 0.7 dBi peak gain,
  • High efficiency
  • Quick integration

Documents

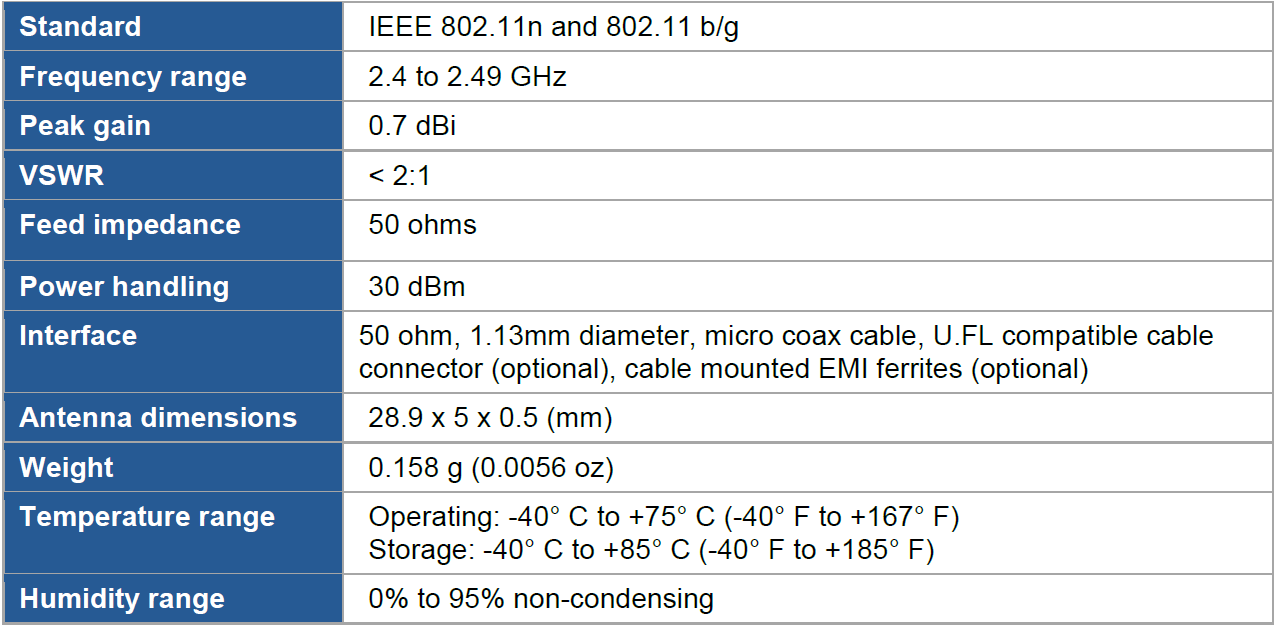

Specifications

SKU N2410CM3TG50U
Manufacturer Part Number N2410CM3-T-G50U
Manufacturer Airgain
Product Condition New
Antenna Category WiFi (2.4 & 5.0 GHz)
Bands Single
SISO or MIMO SISO
Frequency 1 2.4-2.49 GHz

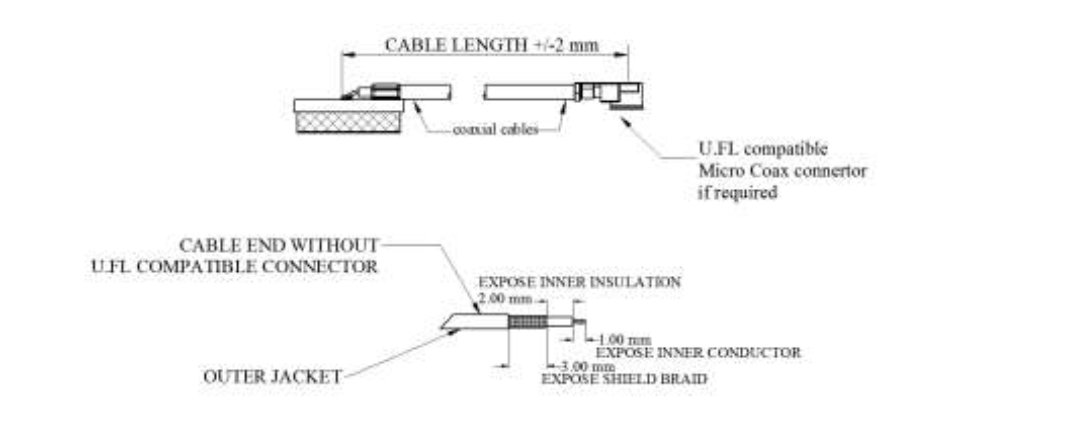

Connector 1 IPEX/MHF/UFL
Impedance 50 Ohm
Max Input Power (W) 1
VSWR: < X: 1 2:01

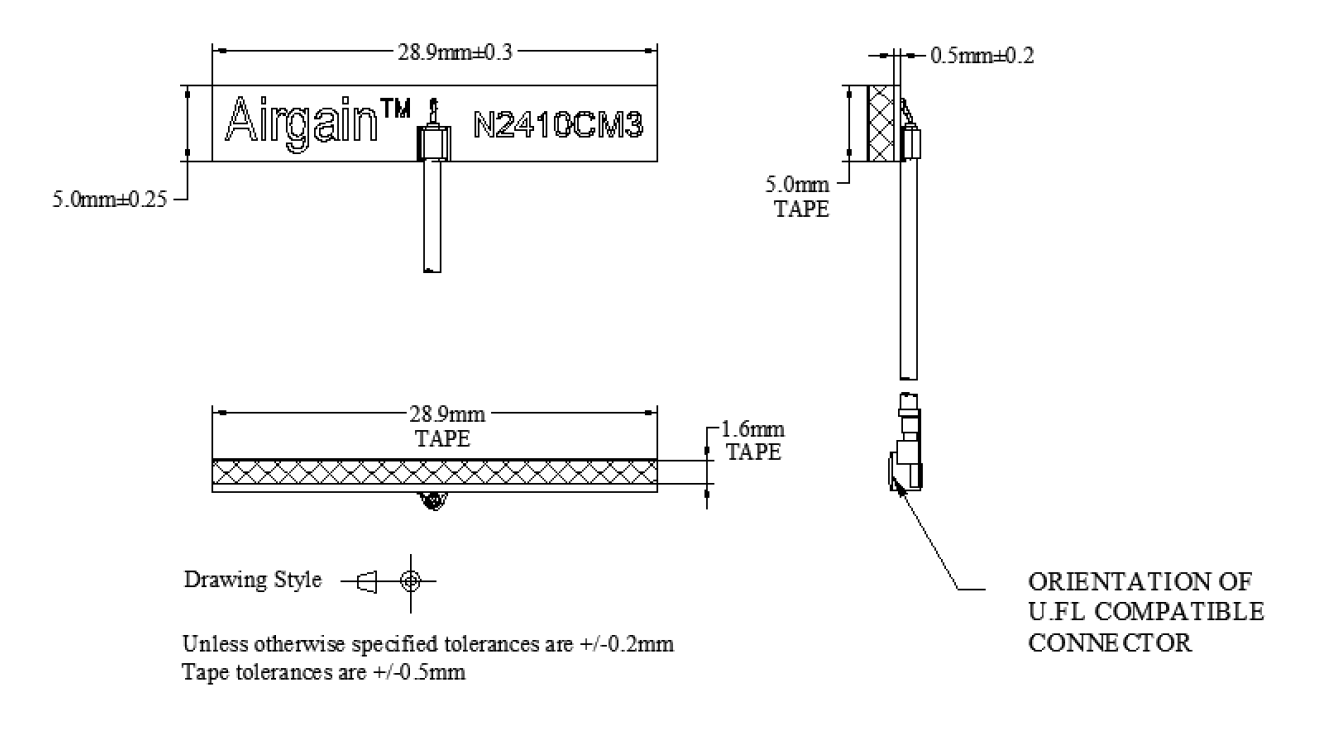

Height/Length (inches) 1.14
Height/Length (mm) 28.9
Width (inches) 0.2
Width (mm) 5
Thickness/Diameter (inches) 0.02
Thickness/Diameter (mm) 0.5
Weight (lbs) 0.001
Weight (grams) 0.158
Material Plastic
Operating Temp (celsius) (-40) to +75 C
Mount Style ABS Plastic Mount
Color Black
