MAF94045 NanoBlue Embedded Internal Antenna 2.5db gain - 2.4 GHz - MHF / u.FL Connector

  • $2.52
    Unit price per

MAF94045


1250 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $2.27
25 $2.07
100 $1.86
250 $1.69
500 $1.53
Lead time for qty above 1250:  Ships in 8-10 Weeks

MAF94045 NanoBlue Embedded Internal Antenna 2.5db gain - 2.4 GHz - MHF / u.FL Connector

MAF94045 NanoBlue Embedded Internal Antenna 2.5db gain - 2.4 GHz - MHF / u.FL Connector

More InfoDocumentsSpecifications Reviews

Laird / Centurion NanoBlue embedded antenna for 2.4GHz WIFI with 4 inch cable & IPEX (mhf / u.fl) connector.


More Information

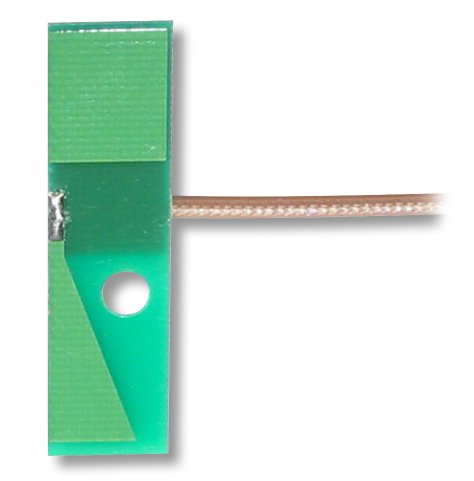

Laird / Centurion NanoBlue IP04 low cost 2 dbi gain embedded PCB antenna for 2.4GHz WIFI. 100mm / 4 inch 1.13 mm diameter cable & IPEX (mhf / u.fl) connector. These antennas are specifically designed to be embedded inside devices for aesthetically pleasing and highly durable integration.

 FEATURES

  • Versatile and easy to use antenna for 2.4 to 2.5GHz Bluetooth and IEEE 802.11 devices
  • Designed for easy connection to radio cards
  • Utilizes patented PCB Microsphere technology
  • Has a ground plane incorporated into the resonator structure so no additional ground plane is required to radiate efficiently
  • Conformance to European RoHS Directive 2002/95/EC

APPLICATIONS

  • WIMAX

Documents


Specifications

SKU MAF94045
Manufacturer Part Number MAF94045
Manufacturer Laird
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2400-2500 MHz
Gain 2dBi
Antenna Style Internal / Embedded
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Height/Length (inches) 1.88
Width (inches) 0.5
Thickness/Diameter (inches) 0.032
Weight (grams) 2
Cable Length (mm) 100
Connector 1 U.FL
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
Product Condition New
