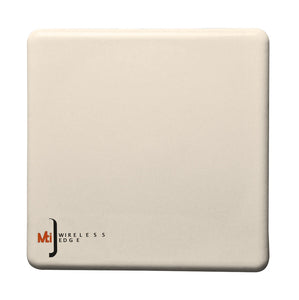

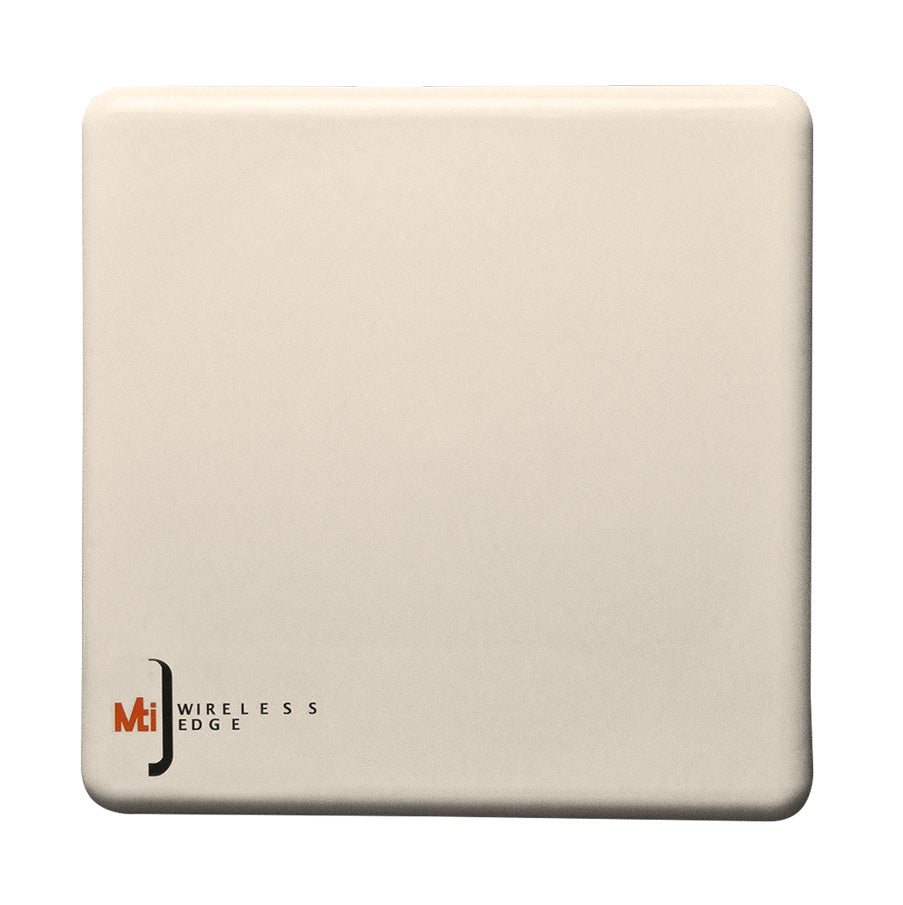

MT-263003/N: 12x12 inch Linearly Polarized UHF RFID Panel Antenna - Fixed N-Female - FCC

  • $129.00
    Unit price per

MT-263003/N


175 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $113.00
Factory lead time:  Ships in 10-12 Weeks

MT-263003/N: 12x12 inch Linearly Polarized UHF RFID Panel Antenna - Fixed N-Female - FCC

More InfoSpecifications Reviews

The MT-263003/N from MTI is a 12x12 inch, IP67 rated linearly polarized RFID antenna operating at 902-928 Mhz FCC with 10.5 dBic gain and a fixed N female connector.


More Information

The MT-263003/N Circularly Polarized outdoor RFID Antenna from MTI measures in at 12x12 inches. This unit operates at 10.5 dBic gain, covers50x50 degrees beamwidth, and is an excellent choice for passive UHF RFID applications in the FCC band of 902-928 Mhz. The MT-263003/N carries an IP67 rating and is perfect for outdoor installations such as parking gates, overhead race timing trusses and distribution center yards. It comes with a fixed N-female connector on the back plate and 4 threaded mounting studs.

Use MT-120018 mounting bracket.

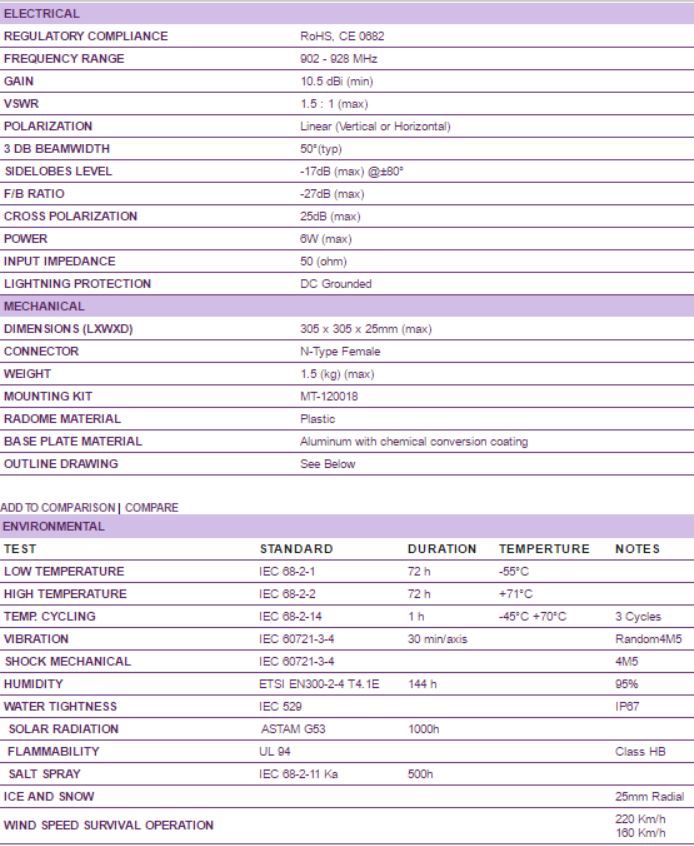

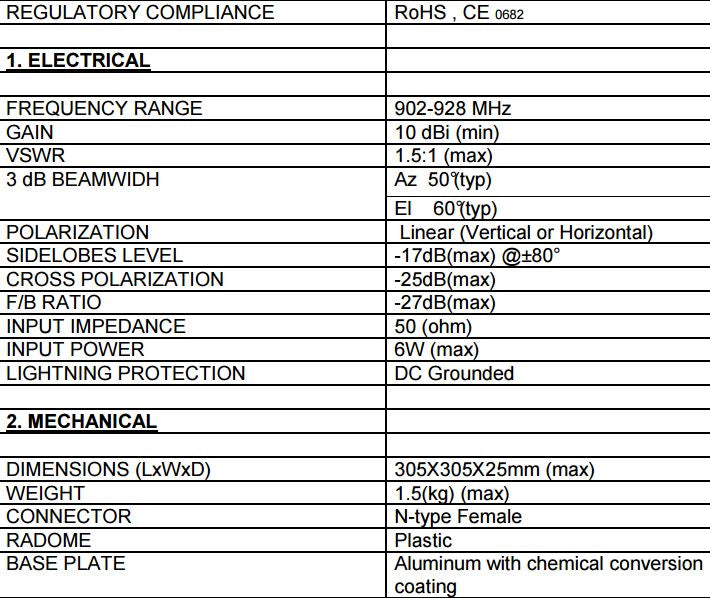

Specifications

SKU MT263003N
Manufacturer Part Number MT-263003/N
Manufacturer MTI
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Directional
Frequency 1 902-928 MHz
Gain 1 10.5dBi
Impedance 50 ohms
Max Input Power (W) 6
VSWR: < X: 1 1.5:1
Height/Length (mm) 305
Width (mm) 305
Thickness/Diameter (mm) 25
Weight (grams) 1500
Material Plastic
Operating Temp (celsius) (-45°C) to 70°C
Mount Pattern 100mm VESA
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Accessory 1 MT-120018
