MAF94028: 4 Inch Omni Dipole Antenna for2.4 GHz Wi-Fi with Elbow. RPSMA. (A24-HASM-450)

  • $6.69
    Unit price per

MAF94028


93 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $6.04
25 $5.50
100 $4.95
250 $4.50
500 $4.06
1000 $3.44
2500 $3.28
Factory lead time:  Ships in 8-10 Weeks

MAF94028: 4 Inch Omni Dipole Antenna for2.4 GHz Wi-Fi with Elbow. RPSMA. (A24-HASM-450)

More InfoDocumentsSpecifications Reviews

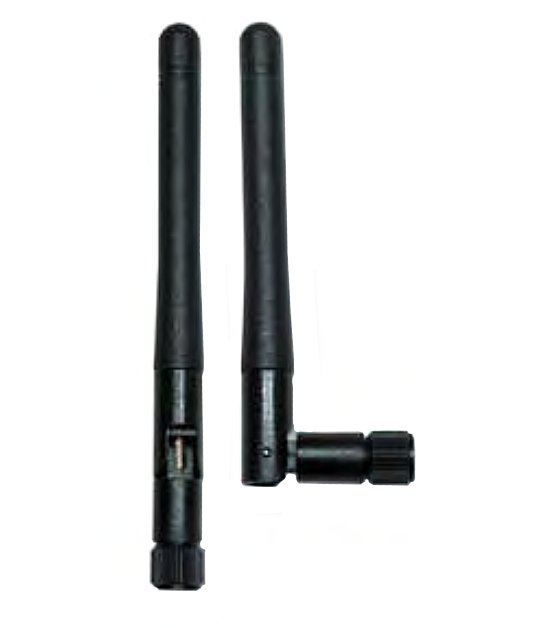

The Laird / Centurion WRR2400-RPSMA is a 4 inch long Omnidirectional Dipole Antenna for 2.4-2.5 GHz Wi-Fi with an RPSMA connector. This antenna offers 1.3 dBi of gain, and is compatible to the Digi A24-HASM-450 / DigiKey A24-HASM-450-ND antenna.


More Information

Today’s work and lifestyles require us to communicate anytime, anywhere whether on the move or sitting still. 802.11 standards make wireless connections to computer networks and other devices possible, while at the same time enabling freedom of movement.

Laird Technologies’ practical and rugged external wireless device antennas are designed to fit into the portable devices used in office, industrial and home environments. The antennas feature flexible elements and many are ó wave coaxial dipole design for reduced ground dependence and improved performance.

FEATURES

• 1.3dBi Gain @ 2.45 GHz

• Omnidirectional pattern for optimal coverage

MARKETS

• Covers 2.4-2.5 GHz 802.11b for all U.S., European, and Japanese WLAN applications.


Documents


Specifications

SKU MAF94028
Manufacturer Part Number MAF94028
Manufacturer Laird
Product Condition New
Antenna Style External SMA Connector with Elbow
Antenna Style External SMA Connector with Elbow
Antenna Category WiFi (2.4 & 5.0 GHz)
Polarity Vertical
Bands Single
Directional or Omni Omnidirectional
Frequency 1 2.4 - 2.5 GHz
Gain 1 1.3 dBi
Impedance 50 Ohms
VSWR: < X: 1 2:01
Height/Length (inches) 3.46 inches bent / 4.29 inches straight
Height/Length (mm) 88 mm bent / 109 mm straight
Thickness/Diameter (inches) 0.366 inches
Thickness/Diameter (mm) 9.3 mm
Weight (lbs) 0.25
Mount Style RP SMA Connector with 90 degree elbow
Connector Type Connector - Bottom
Connector 1 RP SMA-Male
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
