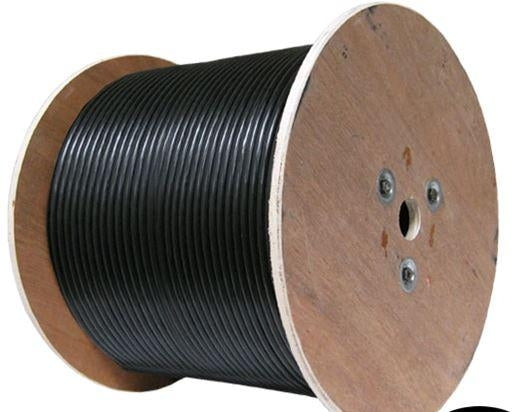

Low Loss, 50 Ohm, Similar to LMR240® - Custom Bulk Coaxial Cable Assemblies with No Connectors

  • $100.00
    Unit price per

PT240-BULK-CUSTOM


0 in stock. Subject to factory lead time
Lead time:  Ships in 1-2 Days

Shipping calculated at checkout.
Low Loss, 50 Ohm, Similar to LMR240® - Custom Bulk Coaxial Cable Assemblies with No Connectors

Low Loss, 50 Ohm, Similar to LMR240® - Custom Bulk Coaxial Cable Assemblies with No Connectors

More InfoDocumentsSpecifications Reviews

These cables are typically in-stock, or made to order, and ship same-day or next-day. Recommended for use with frequencies from 150 MHz - 5 GHz.  At 900 MHz or higher we do not recommend using cable lengths over 50 feet.  For 900 MHz and up, at lengths longer than 50 feet, we suggest upgrading to PT400 type cable assemblies.

Link to Custom Cables with Connectors: PT195 Custom Cable Assemblies, PT240 Custom Cable Assemblies, PT400 Custom Cable Assemblies

Link to Other Bulk Cables: PT195 Bulk Custom Cable Assemblies, PT400 Bulk Custom Cable Assemblies

All cable assemblies are made to order, and typically ship in 1-2 business days from the time we receive your order. Larger quantities may require longer lead times - so please contact us if you have any questions.

LMR® is a Registered Trademark of Times Microwave Systems.



More Information

All of our custom-made, low-loss cable assemblies are made in the USA with PT240, 50 ohm coaxial cable.  These cables are typically in-stock, or made to order, and ship same-day or next-day. Recommended for use with frequencies from 150 MHz - 5 GHz.  At 900 MHz or higher we do not recommend using cable lengths over 50 feet.  For 900 MHz and up, at lengths longer than 50 feet, we suggest uppgrading to PT400 type cable assemblies.

Link to Custom Cables with Connectors: PT195 Custom Cable Assemblies, PT240 Custom Cable Assemblies, PT400 Custom Cable Assemblies.

Link to Other Bulk Cables: PT195 Bulk Custom Cable Assemblies, PT400 Bulk Custom Cable Assemblies

  • Advantages of PT240 Cable: Much lower Loss & higher performance than standard RG58 & PT195 cable, but still flexible.  Excellent for UHF RFID.
  • Disadvantages of PT240 Cable: Much less flexible than RG58 or PT195, too much attenuation/loss for frequencies over 900 MHz at lenghts of 50+ feet.

Mechanical Specifications:

  • Outside Diameter: 0.240 inches
  • Outside Jacket: Black, PVC (estimated 20 year service life)
  • Insulation: Foamed Polyethelyne
  • Center Conductor: solid copper (1.42 mm)
  • Bend Radius: 19.1mm
  • Appropriate for indoor or outdoor use (at -40 to +85 C)

 Attenuation/Low Chart (dB loss per 100 feet)

  • 150 MHz (VHF) 3.02 dB
  • 450 MHz (UHF) 5.27 dB
  • 900 MHz (ISM)  7.56 dB
  • 1800 MHz (3G) 10.85 dB
  • 2.4 GHZ (WiFi) 12.92 dB
  • 5.8 GHZ (WiFi) 20.40 dB

 LMR® is a Registered Trademark of Times Microwave Systems.


Documents


Specifications

SKU PT240100
Manufacturer Part Number PT240-BULK-CUSTOM
Manufacturer RFMAX
Cable Type LMR240
Color Black
Product Condition New
