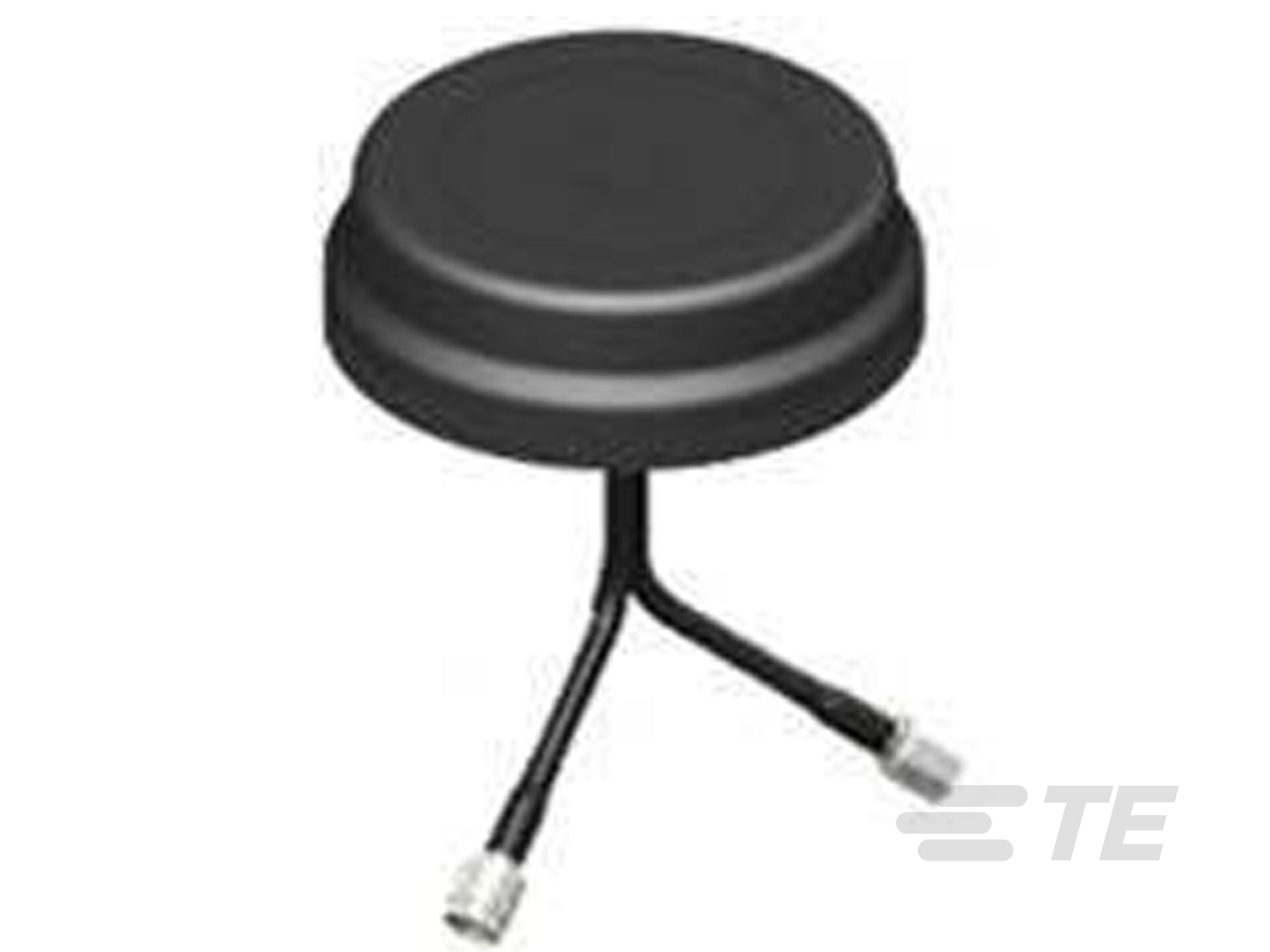

VMD24493RSM-366 5x1.25 Inch Puck Style MIMO Antenna 2.4-2.5 & 4.9-5.85 GHz - RP-SMA-Male

  • $98.55
    Unit price per


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $92.60
25 $88.56
100 $84.87
250 $80.93
500 $80.40
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

VMD24493RSM-366 5x1.25 Inch Puck Style MIMO Antenna 2.4-2.5 & 4.9-5.85 GHz - RP-SMA-Male

More InfoSpecifications Reviews

Laird VMD24493RSM-366 puck style 2 port MIMO antenna for 2.4 & 5 GHz 802.11n WIFI with RP-SMA-male connectors

***This item is subject to an MOQ of 5 pcs***

More Information

2.4-2.5 & 4.9-5.85 GHz VEHICULAR MIMO ANTENNA

The Laird VMD24493RSM-366 vehicular MIMO antenna covers the 2.4 to 2.5 GHz and 4.9 to 5.85 GHz frequency ranges, as well as GPS (1575 MHz). Multiple configurations are available from 3-port, dual-band elements to 1-port, single-band at 4.9 GHz with integrated GPS.

Cable options include low-loss cables (LMR195 and LMR240) or RG58 cables. The housing incorporates a low-profile, rugged design that conforms to IP67 standards. The antenna also features high impact, UV-resistant polycarbonate plastic available in black or white.


SKU VMD24493RSM366
Manufacturer Part Number VMD24493RSM-366
Manufacturer Laird
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2400 MHz-2500 MHz
Gain 3dBi
Working Frequency 2 4900-5990 MHz
Gain 2 4dBi
Antenna Style Hockey Puck
Polarity Vertical
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 25
VSWR: < X: 1 2:01
Height/Length (inches) 1.25
Thickness/Diameter (inches) 5
Material UV-resistant polycarbonate plastic
Mount Style 5/8 holes
Color Black
Cable Length (inches) 144
Vehicular Yes
Product Condition New
