S9028PCLJ96RTN: 10x10 inch RHCP FCC RFID Antenna.
S9028PCLJ96RTN
S9028PCLJ96RTN: 10x10 inch RHCP FCC RFID Antenna.
More InfoDocumentsSpecifications ReviewsThe Laird S9028PCLJ96RTN is the industry standard antenna for passive UHF RFID installations. This unit is a left hand circularly polarized 10x10 inch panel with reception and transmission in the FCC: 902-928 MHz frequency band and operates at 8.5 dBic gain. It is built with a pre-installed 96 inch / 8 foot pigtail and RPTNC-Male connector.
*A note about Antenna Polarity:
For most RFID applications, right and left hand polarity antennas may be used interchangeably.
More Information
902-928 MHz 9 dBic CIRCULAR POLARITY PANEL
The Laird S9028PCLJ96RTN antenna is a Left Hand circularly polarized panel that provides reception and transmission of signals in the 902-928 MHz frequency band. The antenna achieves maximum efficiency and performance across the entire frequency band.

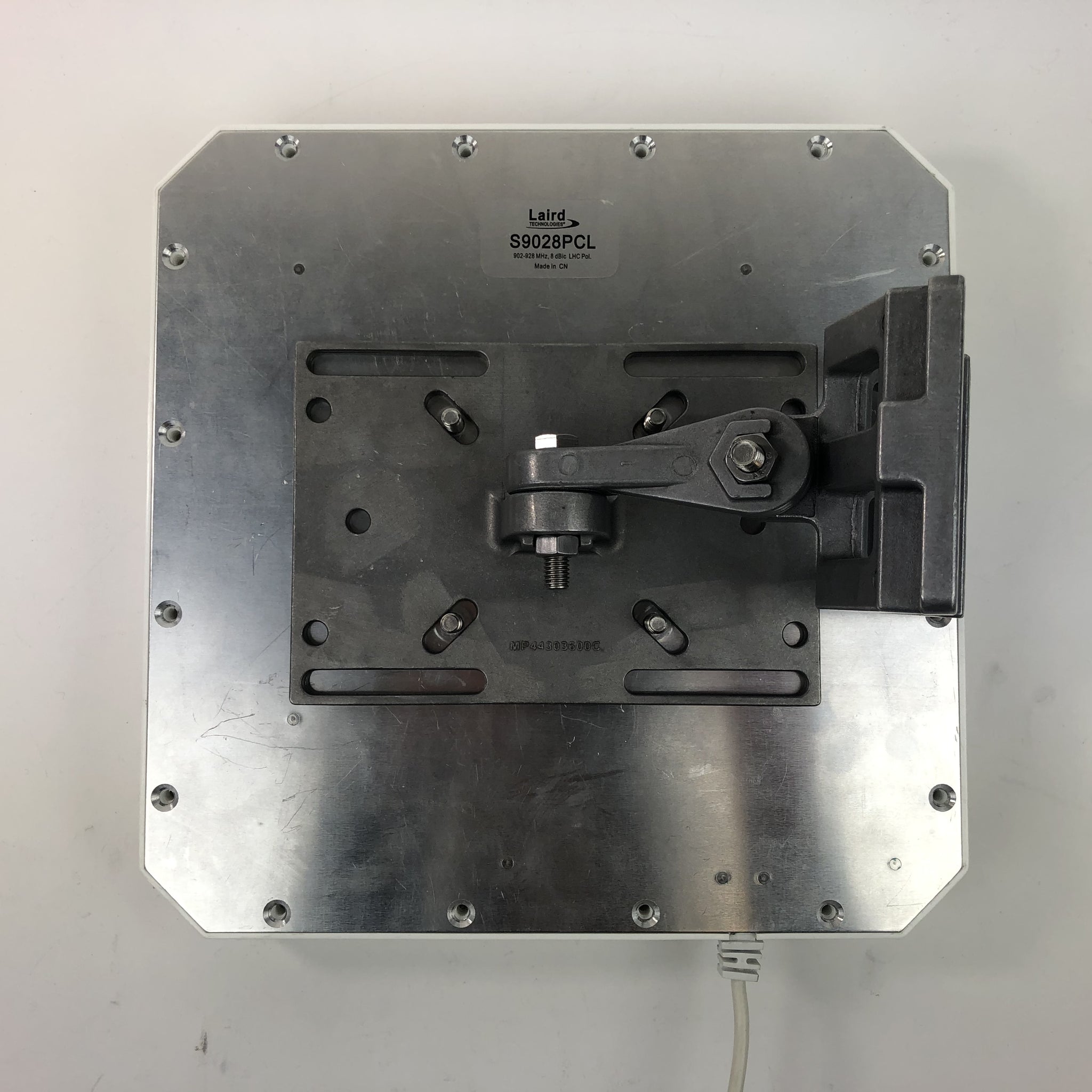

Both VSWR and axial ratios are excellent and allow the user to achieve the maximum performance for an antenna of this type. The antenna is housed in a heavy duty radome enclosure that can be directly wall mounted with (2) threaded mounting studs. An optional articulating mount allows either wall or mast mounting.
The antenna is offered with an integrated 96 inch coax pigtail and RPTNC male connector.
Documents
We Also Recommend
Specifications
| SKU | S9028PCLJ96RTN |
|---|---|
| Manufacturer Part Number | S9028PCLJ96RTN |
| Manufacturer | Laird |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | IP54 |
| Polarity | Left Hand Circular |
| Gain | 8.5 |
| Horizontal/Azimuth Beamwidth | 70 |
| Vertical/Elevation Beamwidth | 70 |
| Connector Type | Cable - Bottom Entry |
| Connector 1 | RP TNC-Male |
| Cable Type | LMR195 |
| Cable Length (inches) | 96 |
| Cable Length (mm) | 2438 |
| Height/Length (inches) | 10.2 |
| Height/Length (mm) | 259 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 1.32 |
| Thickness/Diameter (mm) | 34 |
| Width (inches) | 10.2 |
| Width (mm) | 259 |
| Weight (lbs) | 1.75 |
| Weight (grams) | 1130 |
| Material | ABS Housing |
| Color | White |
| Mount Style | (2) 1/4-20 threaded studs at 4.875 inch / 124 mm spacing. |
| Includes | 2 each: flat washers, lock washers & hex nuts |
| Product Condition | New |
