5x5 inch LH Circularly Polarized IP-67 Rated Ultra Rugged RFID Antenna - RPTNC Female

  • $172.00
    Unit price per

S9025PLRTN


25 Can ship immediately
Lead time for qty above 25:  Ships in 10-12 Weeks

Shipping calculated at checkout.

5x5 inch LH Circularly Polarized IP-67 Rated Ultra Rugged RFID Antenna - RPTNC Female

More InfoSpecifications Reviews

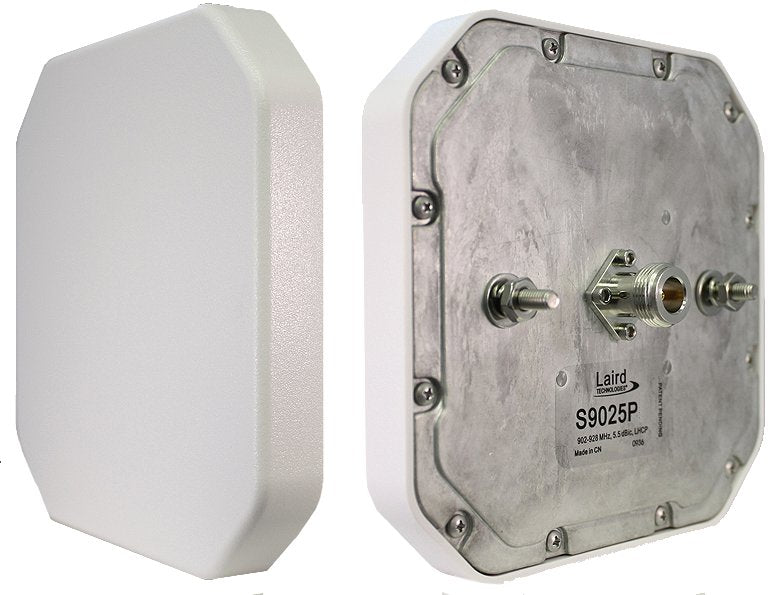

The Laird S9025PLRTN is a ultra-rugged IP67 rated Circularly Polarized RFID Antenna. This antenna operates in the FCC 902-928 Mhz range and offers 5 dBic gain. Size 5 x 5 inch with fixed RPTNC-Female Connector.


More Information


Specifications

SKU S9025PLRTN
Manufacturer Laird
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP67
Polarity Left Hand Circular
Gain 5.5
Horizontal/Azimuth Beamwidth 100 degree
Vertical/Elevation Beamwidth 100 degree
Connector Type Connector - Rear
Connector 1 RP TNC-Female
Height/Length (inches) 5.2
Height/Length (mm) 132.08
Operating Temp (celsius) (-30) to 70
Thickness/Diameter (inches) 0.71
Thickness/Diameter (mm) 18
Width (inches) 5.2
Width (mm) 132
Weight (lbs) 0.8
Weight (grams) 364
Material Polycarbonate
Mount Style Threaded Stud 2x #10-32
Product Condition New
