FG24005 : 2400-2485 MHz, 5 dBd/ 7 dBi Outdoor Fiberglass Omni base Station Antenna with N-Female Connector

  • $65.04
    Unit price per

FG24005


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $64.75
25 $59.97
100 $57.45
250 $54.73
500 $54.03
Lead time:  Ships in 4-6 Weeks

Shipping calculated at checkout.

FG24005 : 2400-2485 MHz, 5 dBd/ 7 dBi Outdoor Fiberglass Omni base Station Antenna with N-Female Connector

More InfoSpecifications Reviews

The FG24005 from Laird (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna operating at 2400-2485 MHz, providing 5 dBd/ 7 dBi of linear gain.

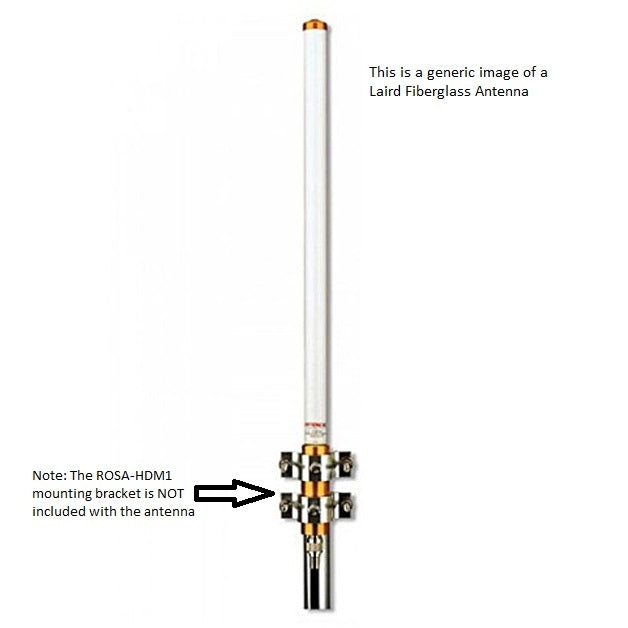

*Note: This antenna DOES NOT ship with mounting hardware.  We recommend the ROSA-HDM1 mounting bracket*



More Information

Laird – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions.  Every Antenna Is Covered By A Five-Year Factory Warranty.

*Note: This antenna DOES NOT ship with mounting hardware.  We recommend the ROSA-HDM1 mounting bracket*

The FG24005 from Laird (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna.  It has a collinear design enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.

The radiating elements are tuned for the 2400-2485 MHz and made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.

FEATURES AND BENEFITS:

  • Frequency: 2400-2485 MHz
  • Gain: 5 dBd/ 7 dBi
  • Length: 14 inches
  • 100% tested on a network analyzer before shipping to assure the best performance.
  • Special UV Treated - stands up to the sun over years of service.
  • Durable gold anodized sleeve and cap with N Female connector.
  • Five Year Factory Warranty.

Specifications

SKU FG24005
Manufacturer Part Number FG24005
Manufacturer Laird
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2400-2485 MHz
Gain 5 dBd/ 7 dBi
Center Tuned Frequency 1 2450 MHz
Antenna Style Omnidirectional Base Station Antenna
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 14
Height/Length (mm) 355.6
Thickness/Diameter (inches) 1.31
Thickness/Diameter (mm) 33.27
Weight (lbs) 1
Weight (grams) 453.59
Material Fiberglass
Operating Temp (celsius) (-40) to 85 C
Color White
Connector 1 N-Female
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
