High-Gain 4x4 MIMO WiFi Panel Antenna, Dual-Band 2.4/5 GHz | RPAN-4W-NF-W
RPAN-4W-NF-W
High-Gain 4x4 MIMO WiFi Panel Antenna, Dual-Band 2.4/5 GHz | RPAN-4W-NF-W

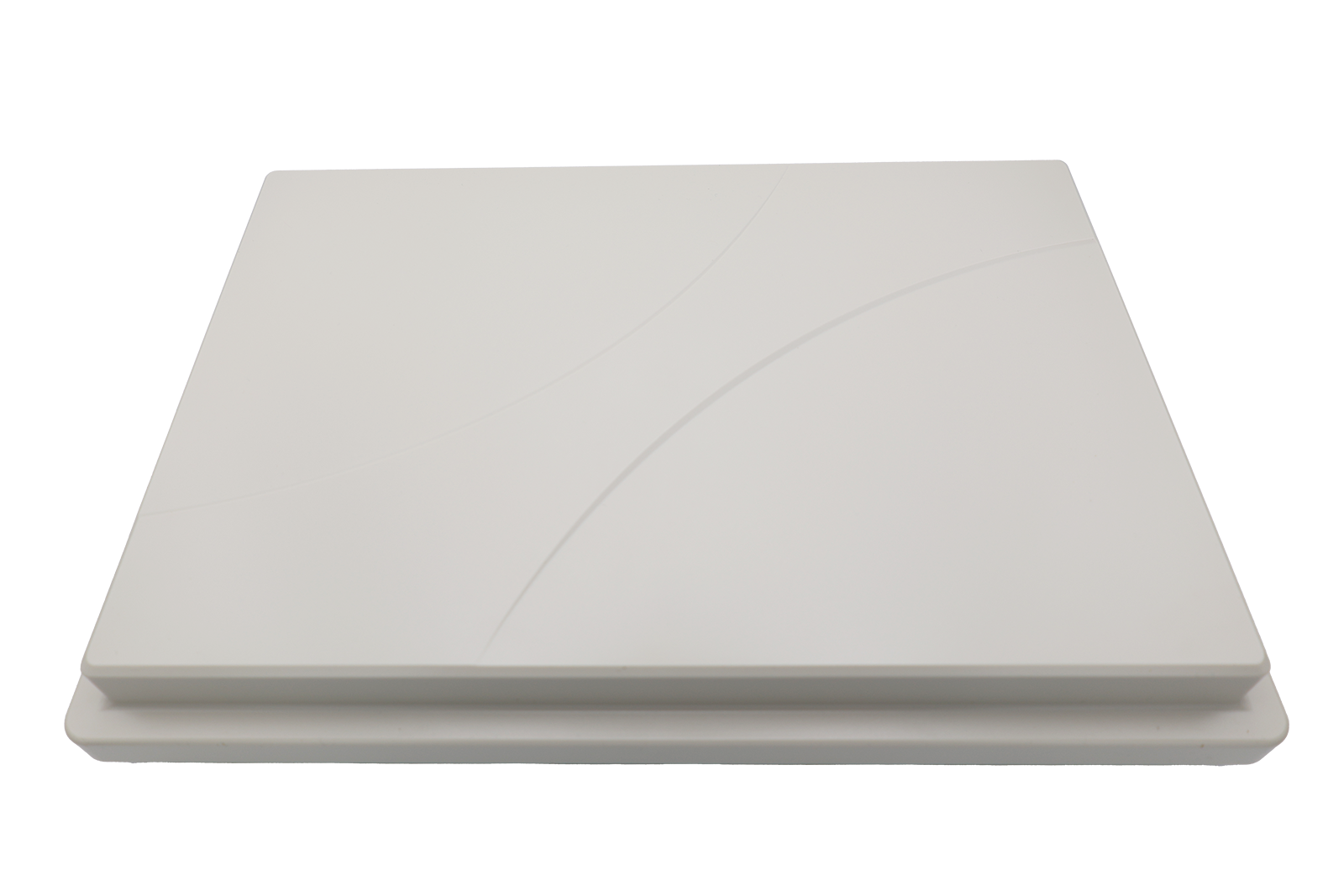

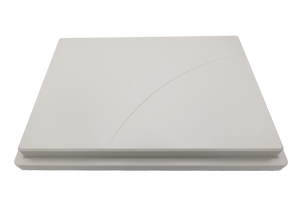

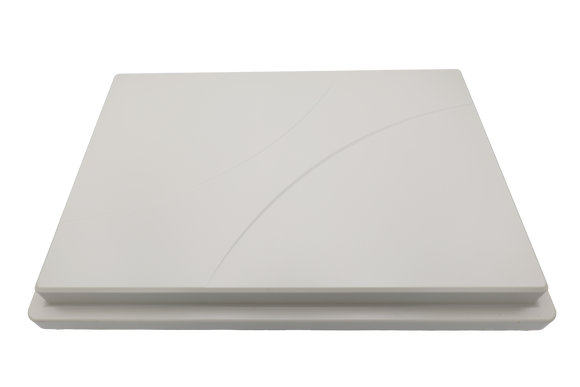

More InfoDocumentsSpecifications ReviewsThe RFMAX RPAN-4W-NF-W is a high-performance 4x4 MIMO WiFi panel antenna engineered for demanding wireless applications.
• 4x4 MIMO, Dual Band WiFi
• Dual Polarization, 2 V-Pol and 2 H-Pol

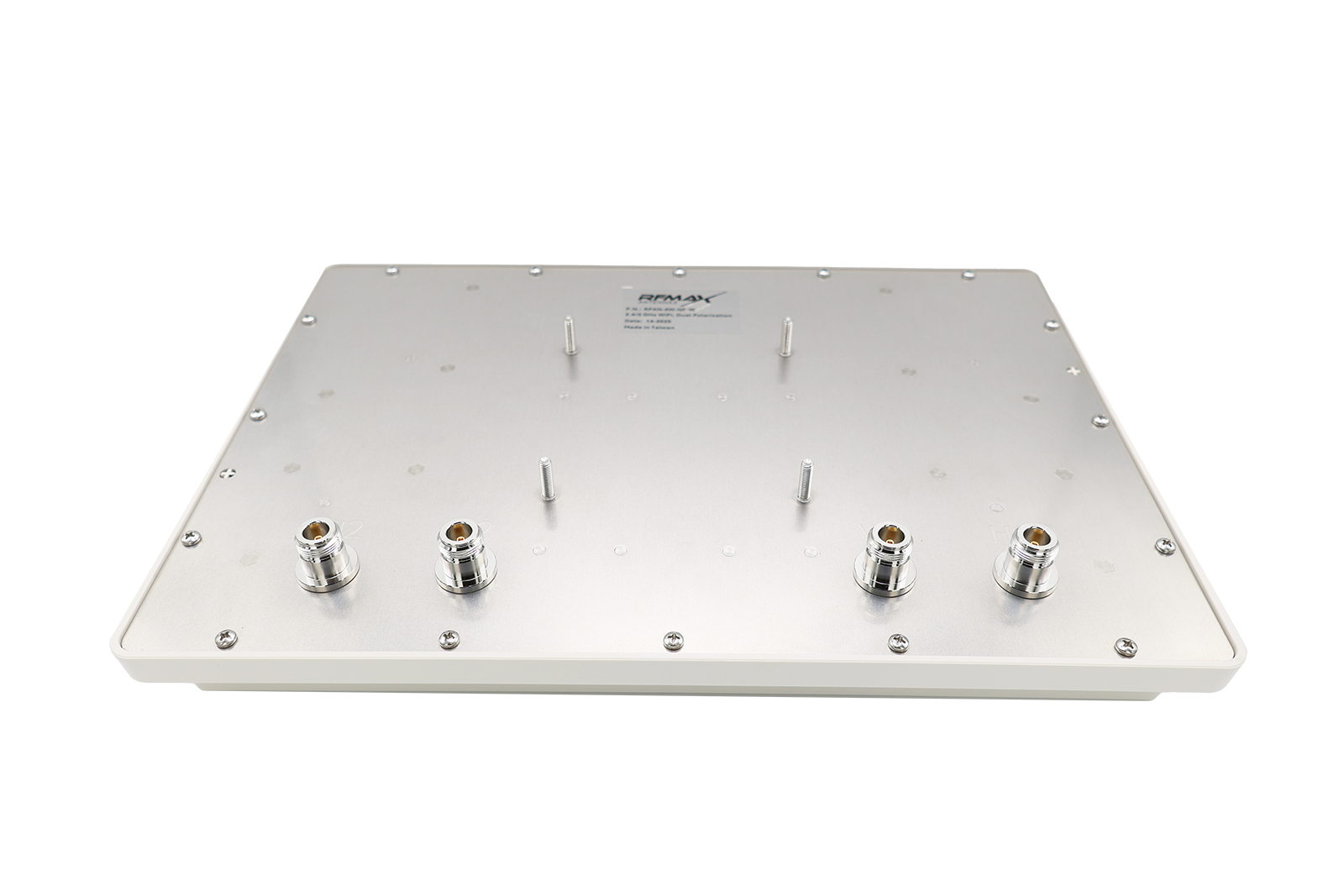

• Direct N-Female Connectors
• 100mm Vesa Mount Pattern for Easy Installation
• Wide Beamwidth; 127° Azimuth & 55° Elevation
• High Efficiency, 78% Efficiency at 2.4 GHz
• High Gain, 9.9 dBi Peak Gain

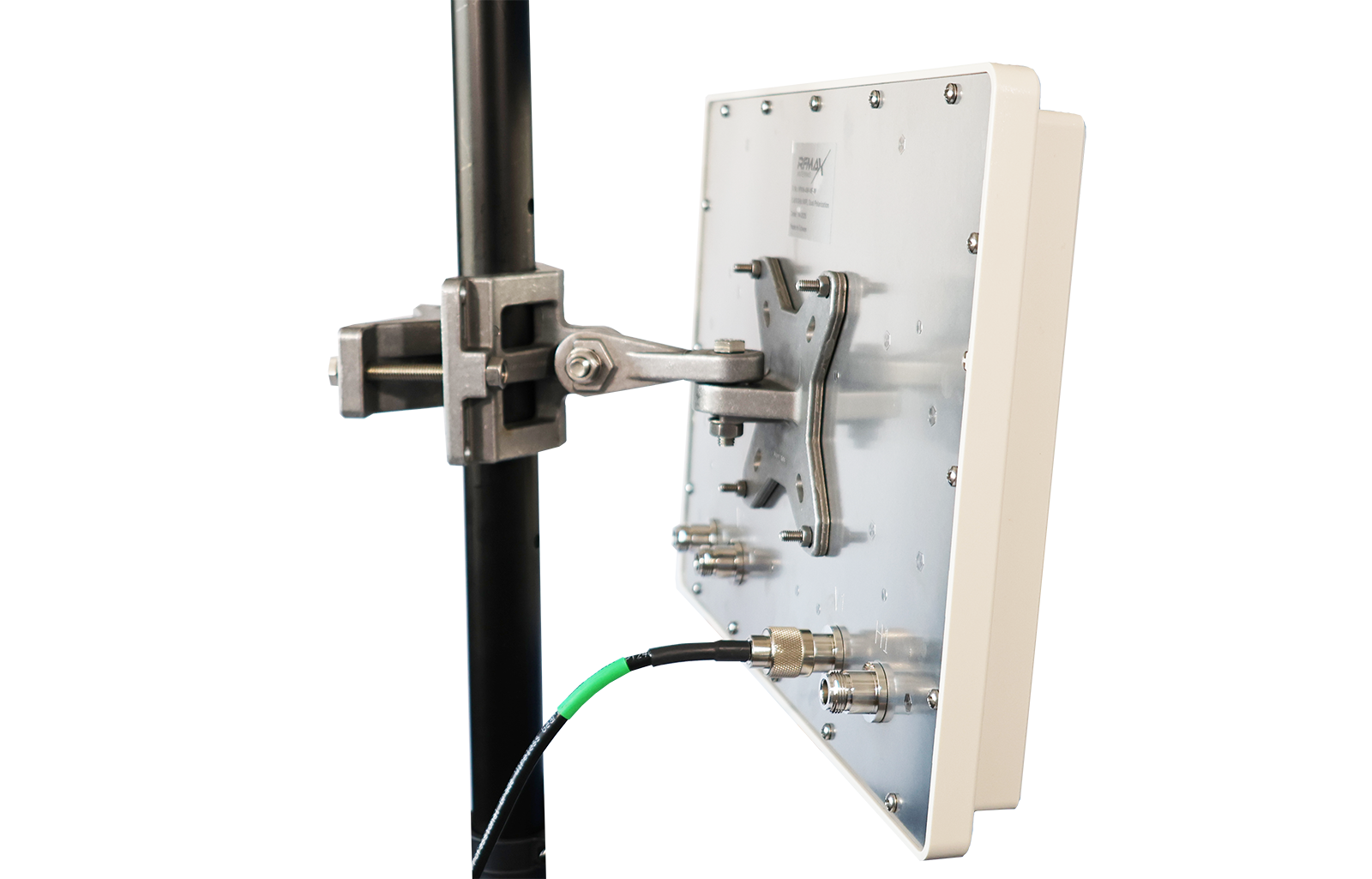

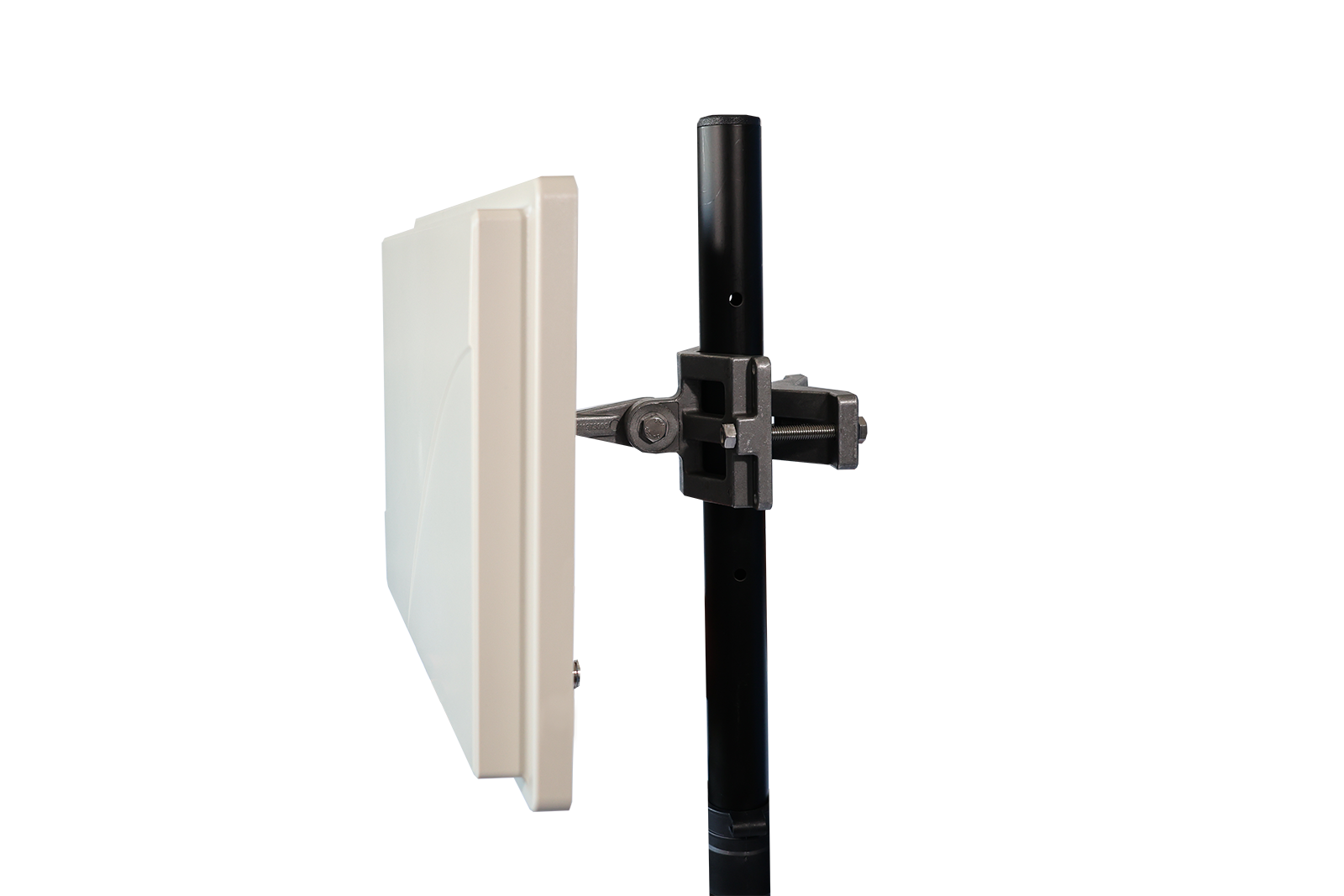

This antenna requires a Mount, to view our HDMNT-100mm Vesa Mount Click Here

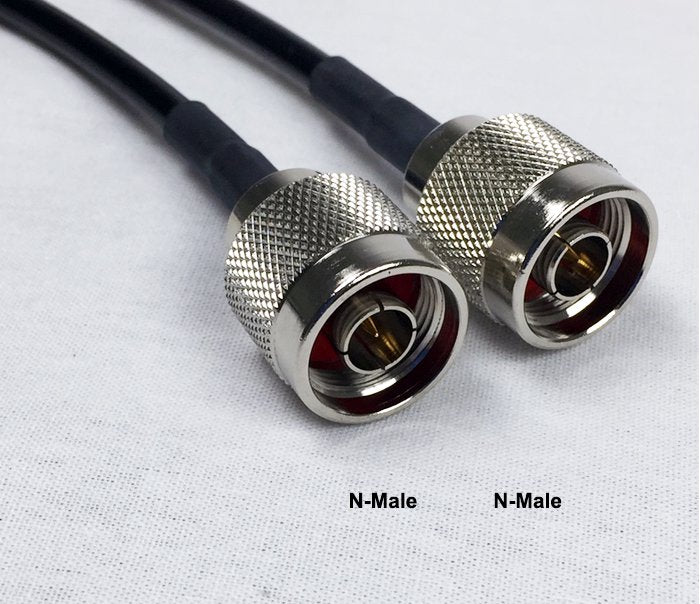

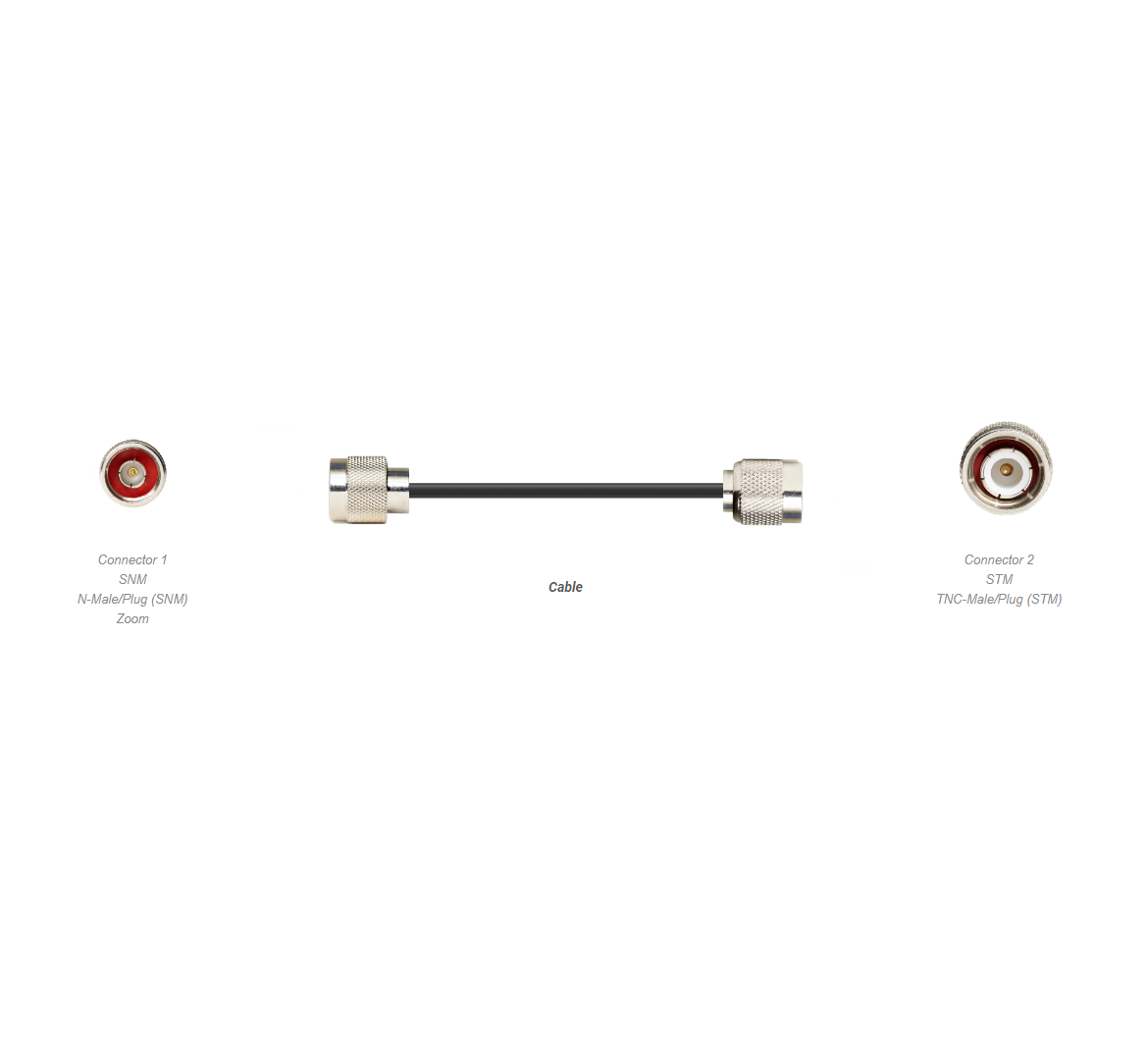

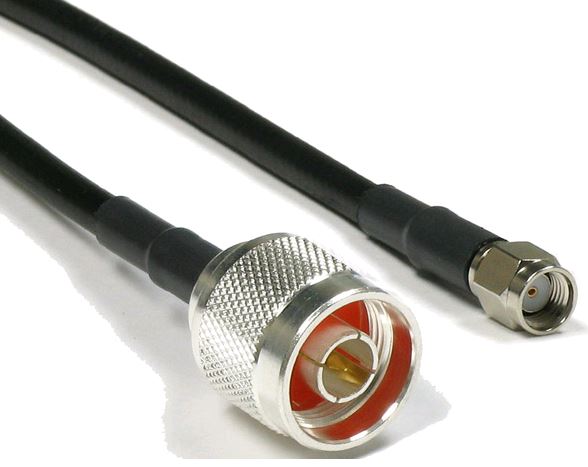

To view our in Stock Cable Assemblies Click Here
More Information
Operating across both 2.4 GHz and 5 GHz frequency bands, this dual-band antenna supports next-generation wireless technologies including WiFi 6, WiFi 5, and legacy 802.11 protocols, ensuring seamless compatibility with modern access points and routers.
Engineered with dual polarization (2 vertical, 2 horizontal) for enhanced signal diversity and improved throughput, the RPAN-4W-NF-W delivers peak gain up to 9.99 dBi and up to 78% efficiency for reliable long-range coverage and high data rates. The wide 127° azimuth and 55° elevation beamwidths allow for broad signal coverage, making it ideal for point-to-multipoint systems, wireless bridges, campus-wide WiFi deployments, mesh networks, and industrial IoT (IIoT) applications.
Built to withstand harsh outdoor environments, the antenna features an IP67-rated UV-resistant radome, -40°C to +80°C temperature tolerance, and a VESA 100mm mounting pattern for easy installation. With direct N-Female connectors, the RPAN-4W-NF-W ensures minimal signal loss and robust connectivity.
Whether you're deploying in warehouses, manufacturing facilities, outdoor campuses, or smart city infrastructure, the RPAN-4W-NF-W WiFi antenna by RFMAX delivers reliable, high-speed wireless performance with maximum coverage and durability.
Documents
We Also Recommend
Specifications
| SKU | RPAN4WNFW |
|---|---|
| Manufacturer Part Number | RPAN-4W-NF-W |
| Manufacturer | RFMAX |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2.4-2.5 |
| Gain | 7.7 dBi (2.4 GHz V-Pol 1) |
| Working Frequency 2 | 5.1-5.8 GHz |
| Gain 2 | 8.7 dBi (2.4 GHz V-Pol 2) |
| Gain 3 | 9.3 dBi (5 GHz V-Pol 1) |
| Gain 4 | 9.3 dBi (5 GHz V-Pol 2) |
| Gain 5 | 8.4 dBi (2.4 GHz H-Pol 1) |
| Gain 6 | 8.2 dBi (2.4 GHz H-Pol 2) |
| Gain 7 | 7.1 dBi (5.0 GHz H-Pol 1) |
| Gain 8 | 7.7 dBi (5.0 GHz H-Pol 2) |
| Antenna Style | Panel Antenna |
| Polarity | Dual Polarization (Horizontal and Vertical) |
| SISO or MIMO | 4x MIMO |
| Directional or Omni | Directional |
| Impedance | 50 Ohms |
| VSWR: < X: 1 | <2.0:1 |
| No Of Elements | 4x MIMO |
| Height/Length (inches) | 10.4 |
| Height/Length (mm) | 263 |
| Width (inches) | 14.9 |
| Width (mm) | 378 |
| Thickness/Diameter (inches) | 2.3 |
| Thickness/Diameter (mm) | 59 |
| Material | PET+PC UV Rated |
| Operating Temp (celsius) | -40 to +80 |
| Mount Pattern | 100mm VESA |
| Color | White |
| Connector Type | N-Female (x4) |
| Connector 1 | N-Female (x4) |
| IP Rating | IP67 |
| OK for Outdoor Use | Outdoor |
| Product Condition | New |
