FG4305: Long Rang Outdoor Omni Antenna for 430-440 & 434 MHz CTT / MOTUS Tracking Systems
FG4305
FG4305: Long Rang Outdoor Omni Antenna for 430-440 & 434 MHz CTT / MOTUS Tracking Systems
More InfoDocumentsSpecifications ReviewsThe FG4305 is a heavy duty, omnidirectional fiberglass antenna for the 430-440 MHz UHF frequency range. It is 76 inches tall and provides 5 dbd (7.15dbi ) of gain. This antenna is widely use for migratory tracking of birds as well as turtles using the CTT LifeTag and PowerTag at 434 MHz.
*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
More Information
TE Connectivity – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions. Every Antenna Is Covered By A Five-Year Factory Warranty.
*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*

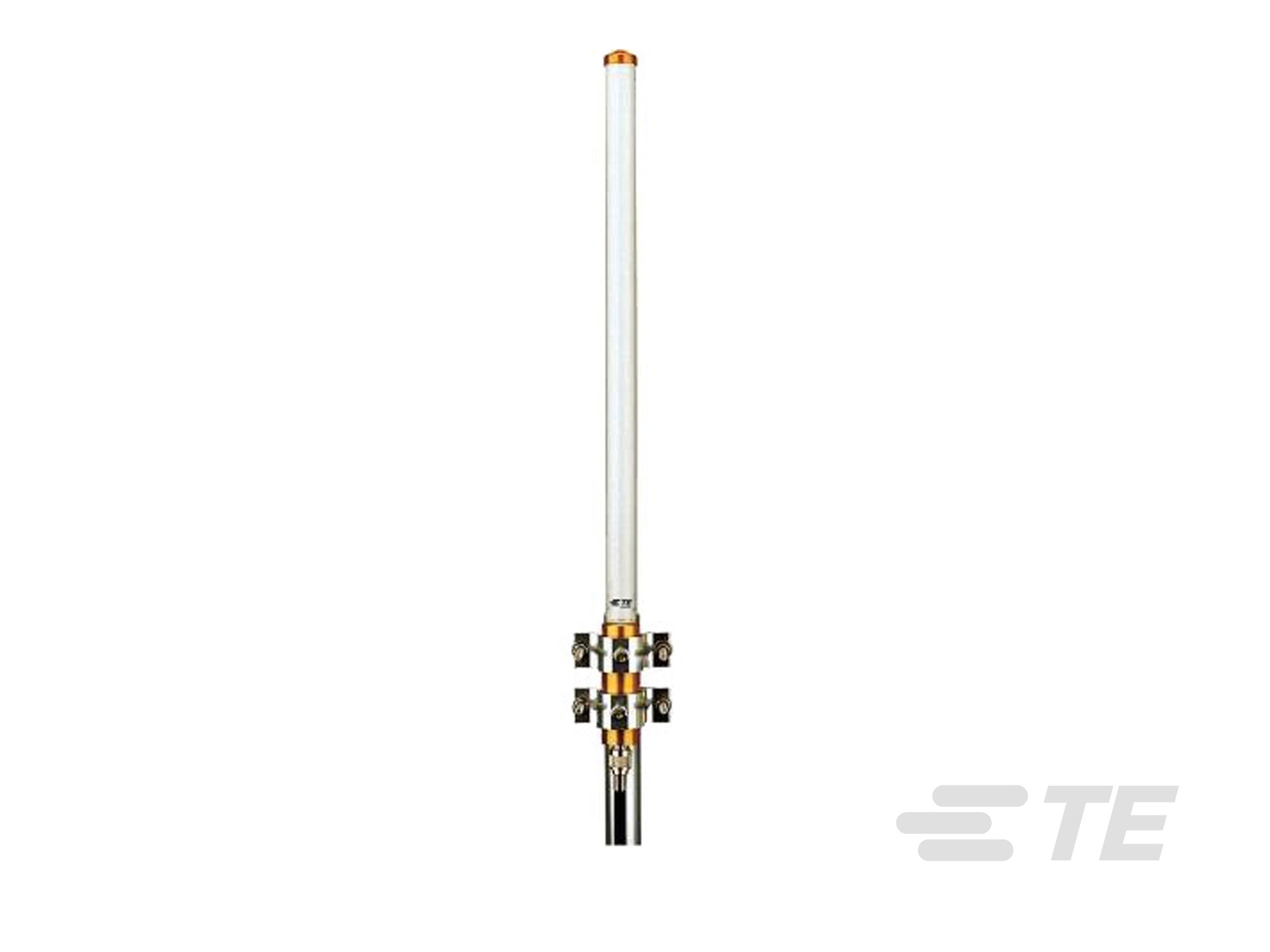

The FG4305 from TE Connectivity (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna. It has a collinear design enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
The radiating elements are tuned for the 430-440 MHz and made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.
FEATURES AND BENEFITS:
- Frequency: 430-440 MHz
- Gain: 5 dBd/ 7.15 dBi
- Length: 76 inches
- 100% tested on a network analyzer before shipping to assure the best performance.
- Special UV Treated - stands up to the sun over years of service.
- Durable gold anodized sleeve and cap with N Female connector.
- Five Year Factory Warranty.
Documents
We Also Recommend
Specifications
| SKU | FG4305 |
|---|---|
| Manufacturer Part Number | FG4305 |
| Manufacturer | TE Connectivity |
| Antenna Category | UHF (380-600 MHz) |
| Working Frequency | 430-440 MHz |
| Gain | 5 dBd/ 7.15 dBi |
| Center Tuned Frequency 1 | 435 MHz |
| Antenna Style | Omnidirectional Base Station Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 76 |
| Height/Length (mm) | 1930.4 |
| Thickness/Diameter (inches) | 1.31 |
| Thickness/Diameter (mm) | 33.27 |
| Weight (lbs) | 6 |
| Weight (grams) | 2721.55 |
| Material | Fiberglass |
| Operating Temp (celsius) | (-40) to 85 C |
| Color | White |
| Connector 1 | N-Female |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
