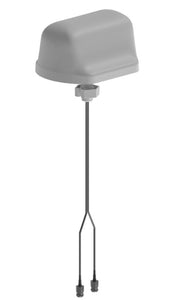

DASLTE500NFMIMO: Antenna, In-Building DAS, MIMO WiFi or LTE, 698-5900 MHz, with dual 500mm pigtails & N-Female Connectors., Low PIM rated -155dBC, ceiling mount.

  • $84.27
    Unit price per

DASLTE500NFMIMO


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $82.62
25 $79.13
100 $75.41
250 $74.41
500 $73.92
Factory lead time:  Ships in 4-6 Weeks

DASLTE500NFMIMO: Antenna, In-Building DAS, MIMO WiFi or LTE, 698-5900 MHz, with dual 500mm pigtails & N-Female Connectors., Low PIM rated -155dBC, ceiling mount.

More InfoDocumentsSpecifications Reviews

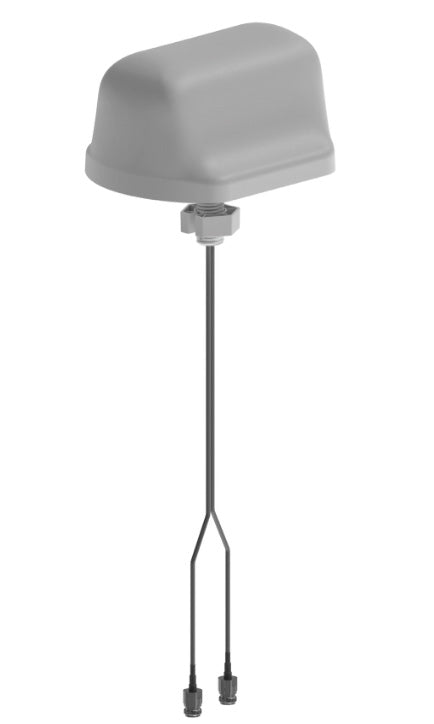

DASLTE500NFMIMO: Low PIM, In-Building ceiling mount DAS antenna for MIMO WiFi or 4G/LTE, 617-960MHz/1710-2170MHz/2300-2700MHz/4900-5900MHz.  Includes dual 500mm plenum rated pigtails with N-Female connectors.  Mounts using plastic stud and spin-nut.


More Information

DASLTE500NFMIMO: Antenna, In-Building DAS, MIMO LTE, 617-960MHz/1710-2700MHz/3400-3800MHz/4900-5925MHz, N-female connector, 500mm pigtail, Low PIM rated -155dBC, ceiling mount, LTE - LAA, Band 71, CBRS

Documents


Specifications

SKU DASLTE500NFMIMO
Manufacturer Part Number DASLTE500NFMIMO
Manufacturer Pulse
Product Condition New
Antenna Style Ceiling Omni
Antenna Style Ceiling Omni
Antenna Category 3G/4G/LTE (698-2700 MHz)
Polarity Linear
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Frequency 1 698-960 MHz
Gain 1 2
Frequency 2 1710-2700 MHz
Gain 2 5
Frequency 3 4900-5900 MHz
Gain 3 5
Impedance 50
Max Input Power (W) 50
VSWR: < X: 1 1.7
Horizontal/Azimuth Beamwidth 360
Pim Rating (@ 2x20 W) -155
Plenum/Fire Rating UL94 V-0
Cable Length - PT195 6 Foot
Height/Length (inches) 8.73
Height/Length (mm) 222
Width (inches) 6.73
Width (mm) 171
Thickness/Diameter (inches) 4.72
Thickness/Diameter (mm) 120
Weight (lbs) 1.19
Weight (grams) 540
Material ABS
Operating Temp (celsius) -40 TO +70
Mount Style Flush
Mount Pattern Threaded Center Stud
Color White
Connector Type Cable - Bottom Entry
Cable Type Low PIM
Number of Cables 2
Cable Length (inches) 19.7
Cable Length (mm) 500
Connector 1 N-Female
Includes Plastic Hex Nut
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
